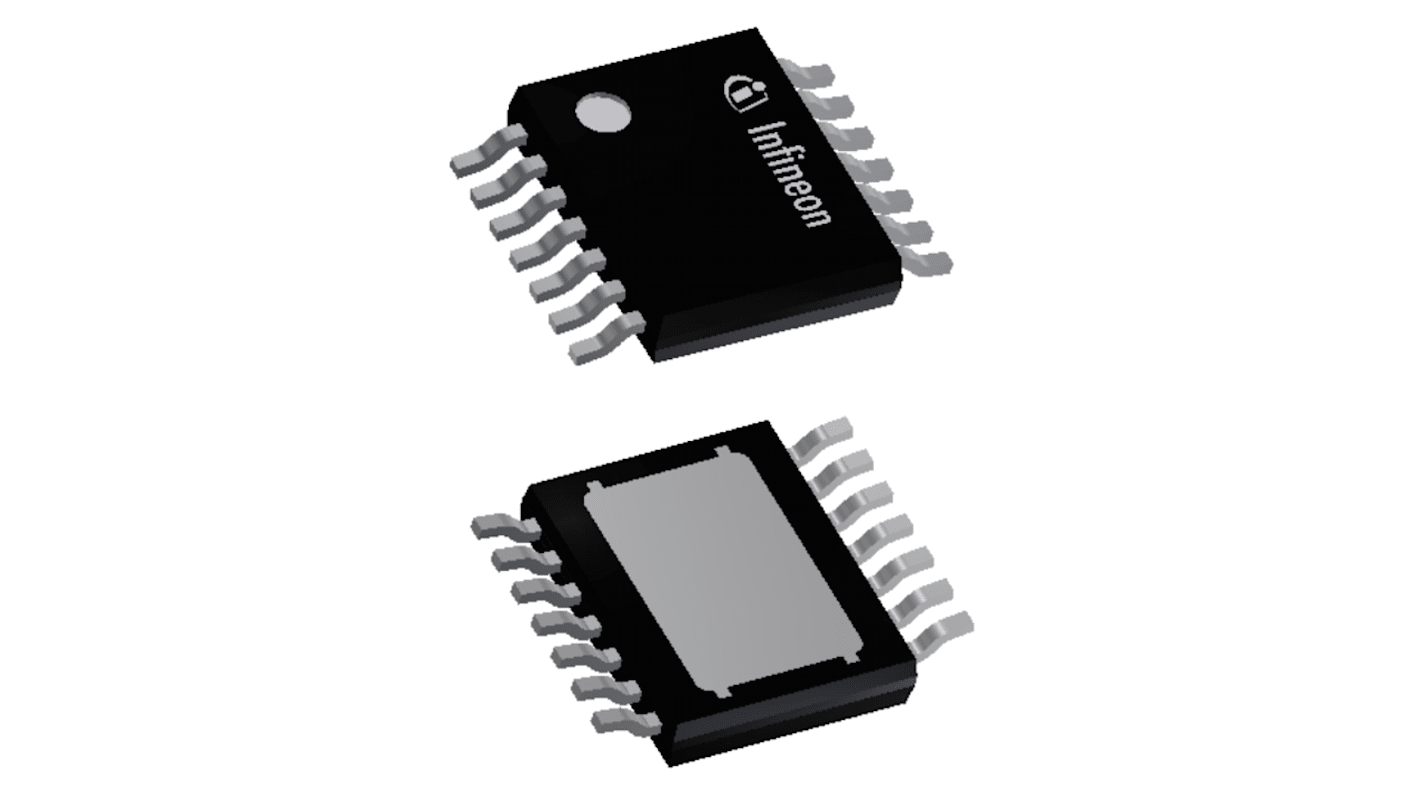

Infineon BTS71202EPAXUMA1, DualHigh Side, High Side Power Switch IC 14-Pin, TSDSO

The Infineon BTS7120-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis

The device is integrated in SMART7 technology. It is suitable for resistive, inductive and capacitive load. It provides absolute and dynamic temperature limitation with controlled restart and over current protection with intelligent restart control.

•High-Side Switch with Diagnosis and Embedded Protection
•Part of PROFETTM+2 12V Family
•Switch ON capability while Inverse Current condition (Inverse ON)
•Green Product (RoHS compliant)
•Qualified in accordance with AEC Q100 grade 1

•Absolute and dynamic temperature limitation with controlled restart
•Overcurrent protection (tripping) with Intelligent Restart Control
•Undervoltage shutdown
•Overvoltage protection with external components

•Proportional load current sense
•Open Load in ON and OFF state
•Short circuit to ground and battery

•Suitable for resistive, inductive and capacitive loads
•Replaces electromechanical relays, fuses and discrete circuits
•Driving capability suitable for 2 A loads (including relays) and high inrush current loads such as R10W lamps or LED equivalent
