Select all	Attribute	Value
	Brand	Hongfa Europe GMBH
	Coil Voltage	60V dc
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	6A
	Number of Poles	1
	Latching	No
	Terminal Type	PCB Pin
	Maximum Switching Voltage AC	400V
	Maximum Switching Voltage DC	125V dc
	Length	28mm
	Coil Resistance	16600Ω
	Coil Power	210mW
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Isolation Coil To Contact	4kV ac
	Depth	5mm
	Life	10000000 (Mechanical) operations, 30000 (Electrical) operations
	Height	15mm
	Standards Met	CQC File No. CQC09002035072, cULus File No. E133481 Recognized, VDE File No. 40020043
	Maximum Switching Power DC	180 W
	Maximum Switching Power AC	1.5 kVA
	Application	Industrial

	Select all
	Brand Hongfa Europe GMBH
	Coil Voltage 60V dc
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 6A
	Number of Poles 1
	Latching No
	Terminal Type PCB Pin
	Maximum Switching Voltage AC 400V
	Maximum Switching Voltage DC 125V dc
	Length 28mm
	Coil Resistance 16600Ω
	Coil Power 210mW
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Isolation Coil To Contact 4kV ac
	Depth 5mm
	Life 10000000 (Mechanical) operations, 30000 (Electrical) operations
	Height 15mm
	Standards Met CQC File No. CQC09002035072, cULus File No. E133481 Recognized, VDE File No. 40020043
	Maximum Switching Power DC 180 W
	Maximum Switching Power AC 1.5 kVA
	Application Industrial

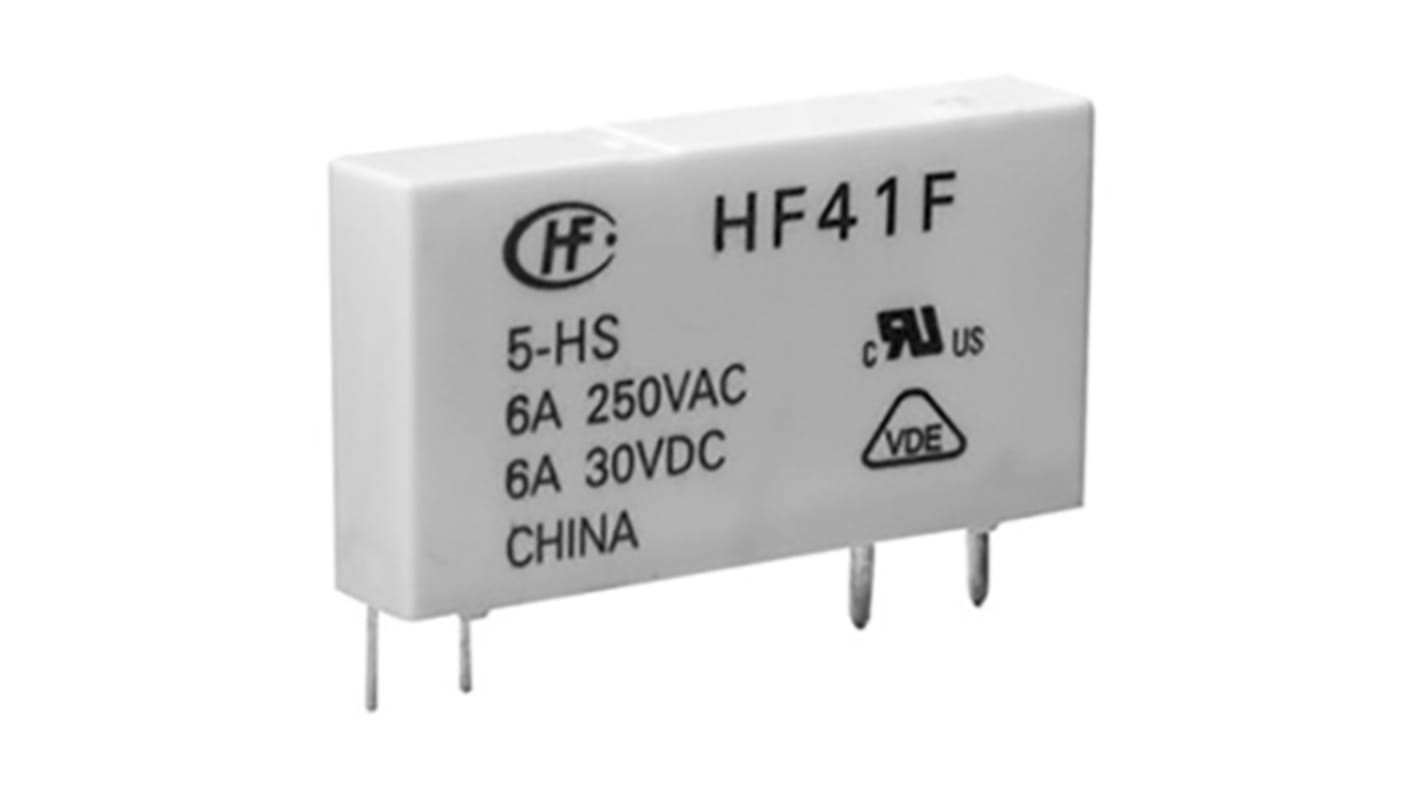

Hongfa Europe GMBH PCB Mount Power Relay, 60V dc Coil, 6A Switching Current, SPDT

FREE delivery for orders over MYR500.00

HF41F Series Subminiature Power Relays
