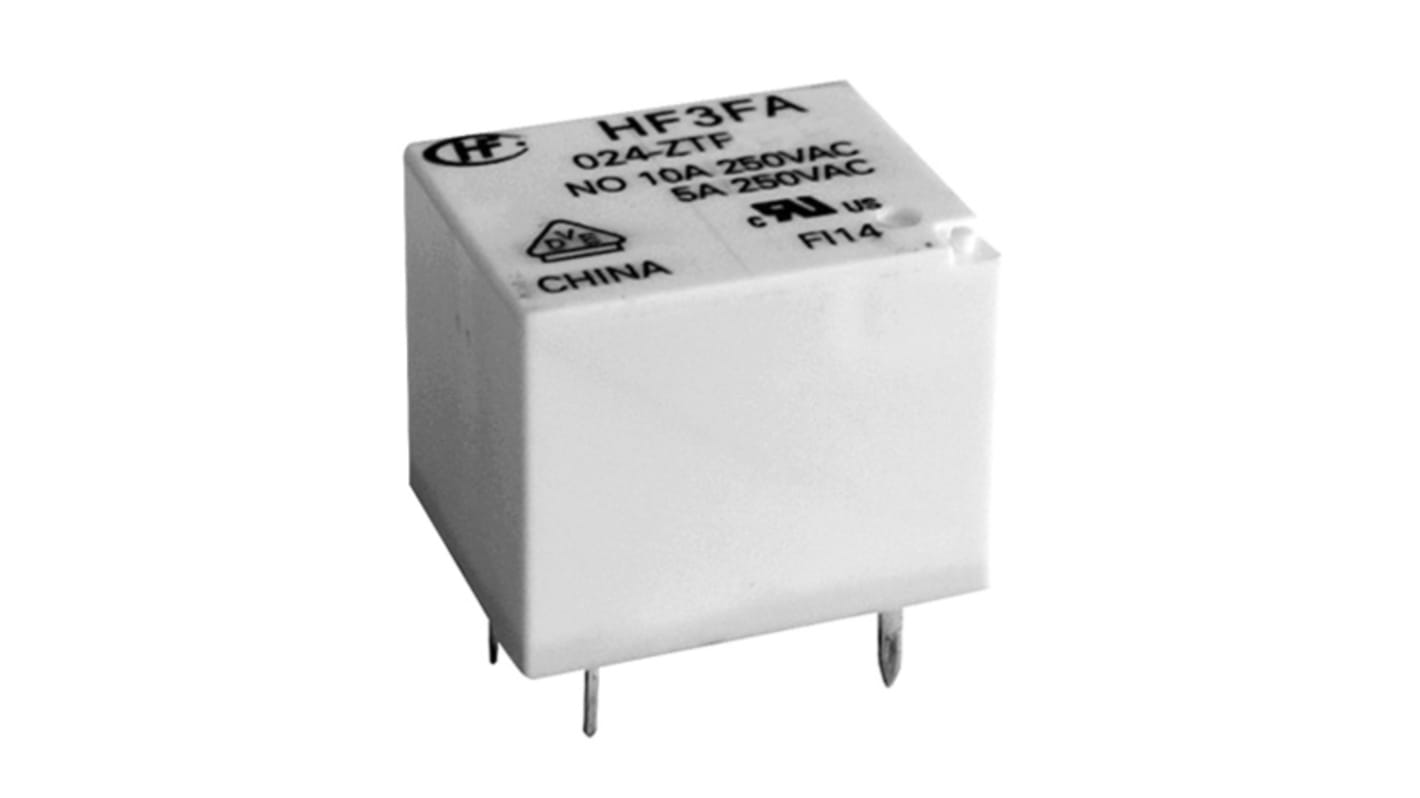

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 box of 100 units)*

MYR588.00

Add to Basket
Select or type quantity
In Stock
  • 1,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Box*
100 - 100MYR5.88MYR588.00
200 - 300MYR5.789MYR578.90
400 +MYR5.677MYR567.70

*price indicative

RS Stock No.:
176-2647
Mfr. Part No.:
HF3FA/012-ZTF
Manufacturer:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

250 V, 277V

Maximum Switching Voltage DC

28V dc

Maximum Switching Current AC

15 A

Maximum Switching Current DC

15 A

Length

19mm

Coil Resistance

400Ω

Coil Power

360mW

Height

15.5mm

Life

1 x 10^7 cycles

Contact Material

Silver Alloy

Depth

15.2mm

Isolation Coil To Contact

2.5kV ac

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Series

HF3FA

Maximum Switching Power AC

2.77 kVA

Maximum Switching Power DC

280 W

COO (Country of Origin):
CN

Hongfa SPDT Non-Latching Relay


The Hongfa SPDT non-latching electromagnetic PCB mount relay is a subminiature high power latching relay. It is actuated with the help of a 12VDC coil and up to 5A DC/AC (NC) and 10A DC/AC (NO) current through the coil switch positions. It has a low mounting height of 15.5mm. This relay has silver alloy contacts. The contact arrangement used is 1 Form C type and has 2 coils latching.

Features and Benefits


• High power switching capacity up to 280W in case of DC
• Sensitive low coil power of 360mW
• Service temperature range between -40°C and 85°C
• Isolation voltage between coil and contact is 2.5KVAC
• High contact capacity 1A 30VDC
• Plastic sealed type
• Low power consumption

Applications


• Used as a control device
• Automotive industry
