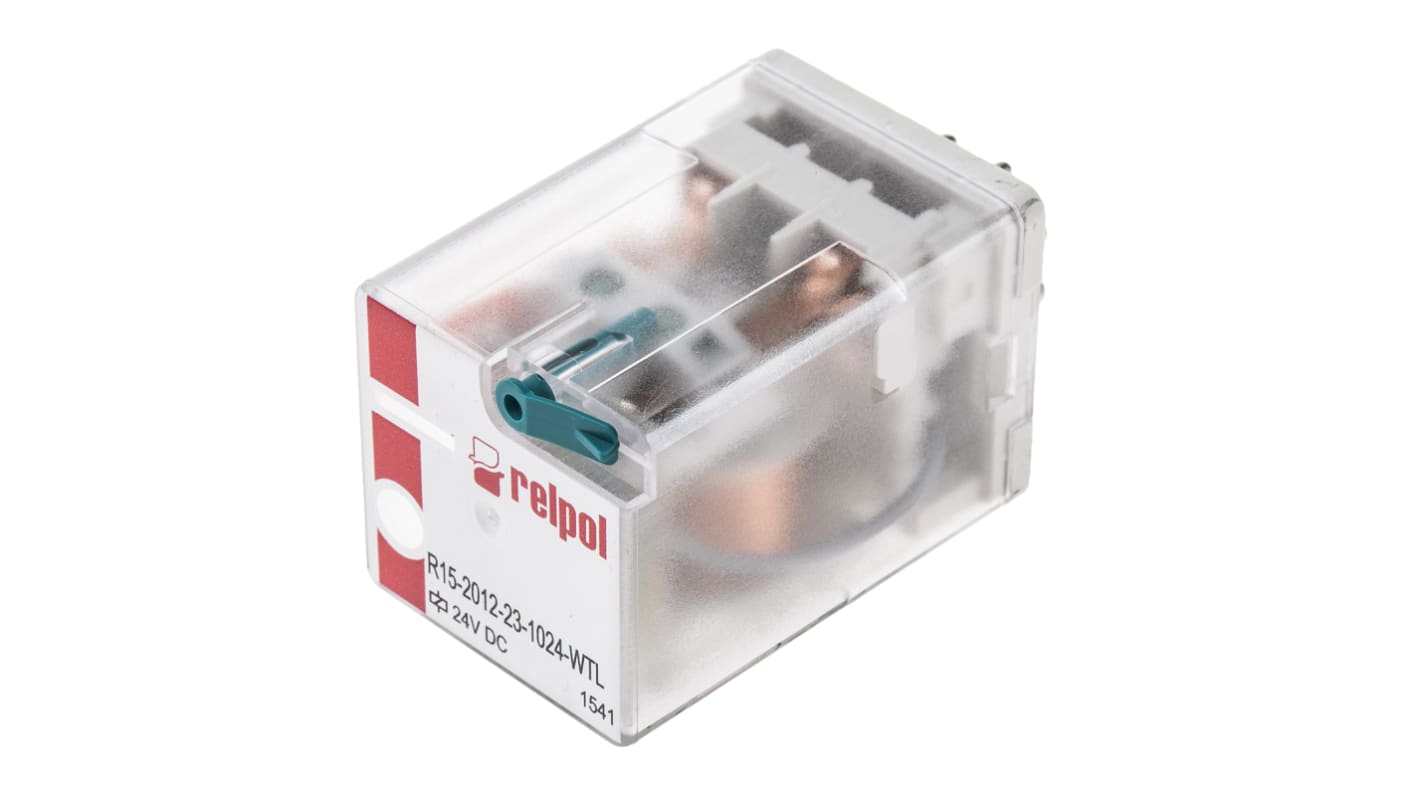

Relpol Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 805-2201
- Mfr. Part No.:
- R15-2012-23-1024-WTL
- Manufacturer:
- Relpol
93 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR131.30
Units | Per Unit |
|---|---|
| 1 - 9 | MYR131.30 |
| 10 - 19 | MYR128.51 |
| 20 + | MYR124.65 |
- RS Stock No.:
- 805-2201
- Mfr. Part No.:
- R15-2012-23-1024-WTL
- Manufacturer:
- Relpol
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Relpol Miniature Industrial Relays
R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.
R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 440V |
| Maximum Switching Voltage DC | 24V dc |
| Length | 35mm |
| Coil Resistance | 430Ω |
| Coil Power | 1.5W |
| Contact Material | Silver Alloy |
| Series | R15 |
| Maximum Operating Temperature | +70°C |
| Isolation Coil To Contact | 2.5kV ac |
| Minimum Operating Temperature | -40°C |
| Life | 200000 (Electrical) cycles, 20000000 (Mechanical) cycles |
| Height | 35mm |
| Depth | 54.4mm |
| Application | General Purpose |
