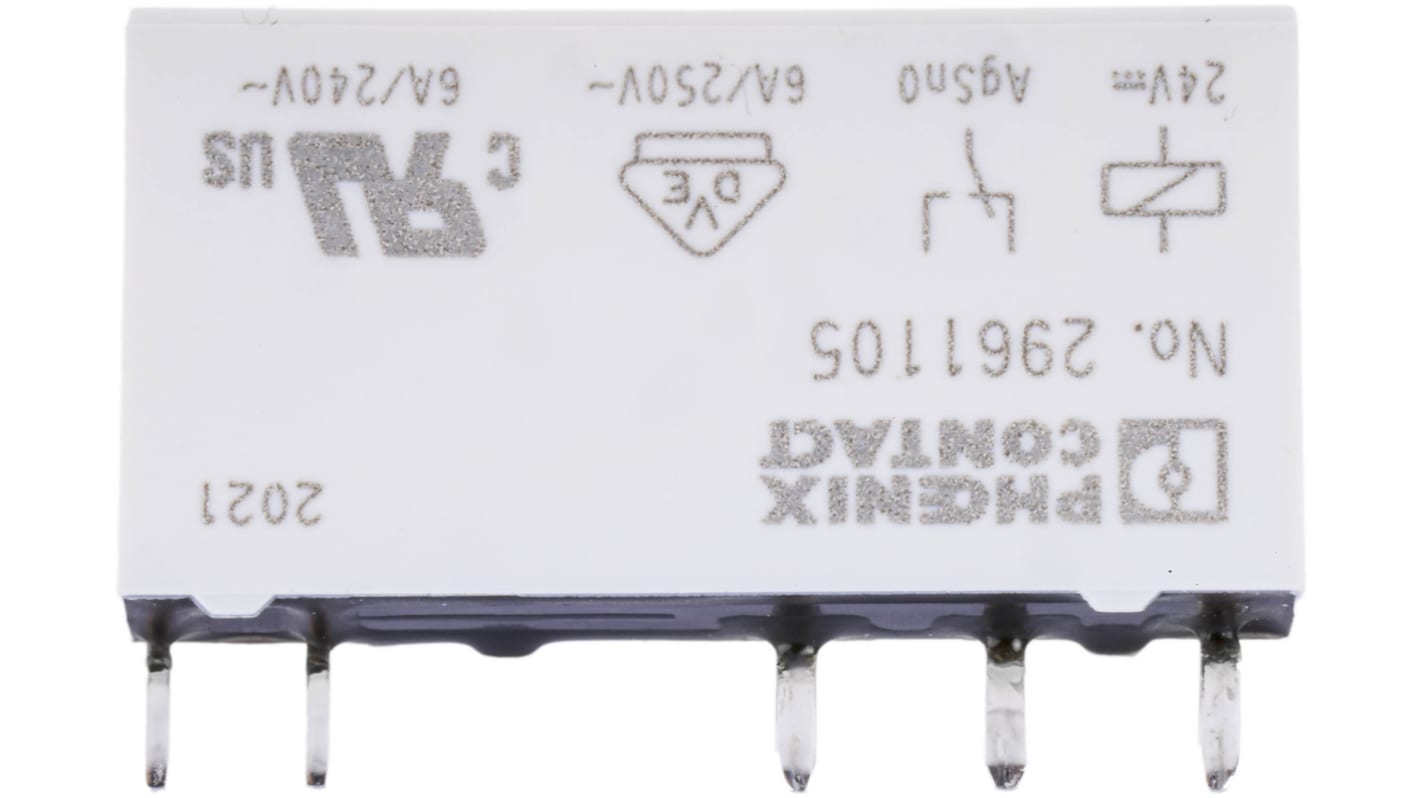

    Phoenix Contact PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPDT

    RS Stock No.:
    290-1416
    Mfr. Part No.:
    2961105
    Manufacturer:
    Phoenix Contact
    Phoenix Contact
    View all Power Relays
    Temporarily out of stock - back order for despatch 10/04/2023, delivery within 2 working days from despatch date
    Add to Basket
    units

    This product is currently unavailable to backorder.

    Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

    Added

    Price Each

    MYR100.22

    unitsPer Unit
    1 - 9MYR100.22
    10 - 19MYR98.43
    20 +MYR96.56

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    REL-MR- 60DC/21
    RS Stock No.
    290-1422

    Price Each

    Was MYR120.06

    You pay

    MYR105.95

    RS Stock No.:
    290-1416
    Mfr. Part No.:
    2961105
    Manufacturer:
    Phoenix Contact
    COO (Country of Origin):
    CZ

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CZ

    Product Details

    Phoenix Contact REL-MR Series


    REL-MR- 24DC/21


    The REL-MR-24DC/21 SPDT (Single pole, double throw), plug-in miniature power relay has an input voltage of 24 Vdc and power contact. The non-latching relay is part of the REL-MR range and has been designed to be assembled in rows with zero spacing.

    Features and Benefits


    • Up to RT III protection meaning that the relay is capable of undergoing a washing process to remove any flush residue without leakage of flux or washing product.
    • Operating temperature of -40°C to +85°C
    • Silver Alloy contact material
    • Safe isolation between coil and contact according to DIN EN 50178
    • Power contacts up to 6 A

    Typical Applications


    The SPDT relay is a commonly used when there is a need to select between two power sources, swapping inputs or where you need two circuits going to one place.

    Note

    When using this type of relay is sometimes vented to the atmosphere after the soldering or watering process. In this case the requirement with respect to clearance and creepage distance can change.

    Specifications

    AttributeValue
    Coil Voltage24V dc
    Contact ConfigurationSPDT
    Mounting TypePCB Mount
    Switching Current6A
    LatchingNo
    Number of Poles1
    Terminal TypePCB Pin
    Coil Resistance3.39 kΩ
    Length28mm
    Depth5mm
    Height15mm
    SeriesREL-MR- 24DC/21
    Maximum Switching Power AC1.5 kVA
    ApplicationCompact
