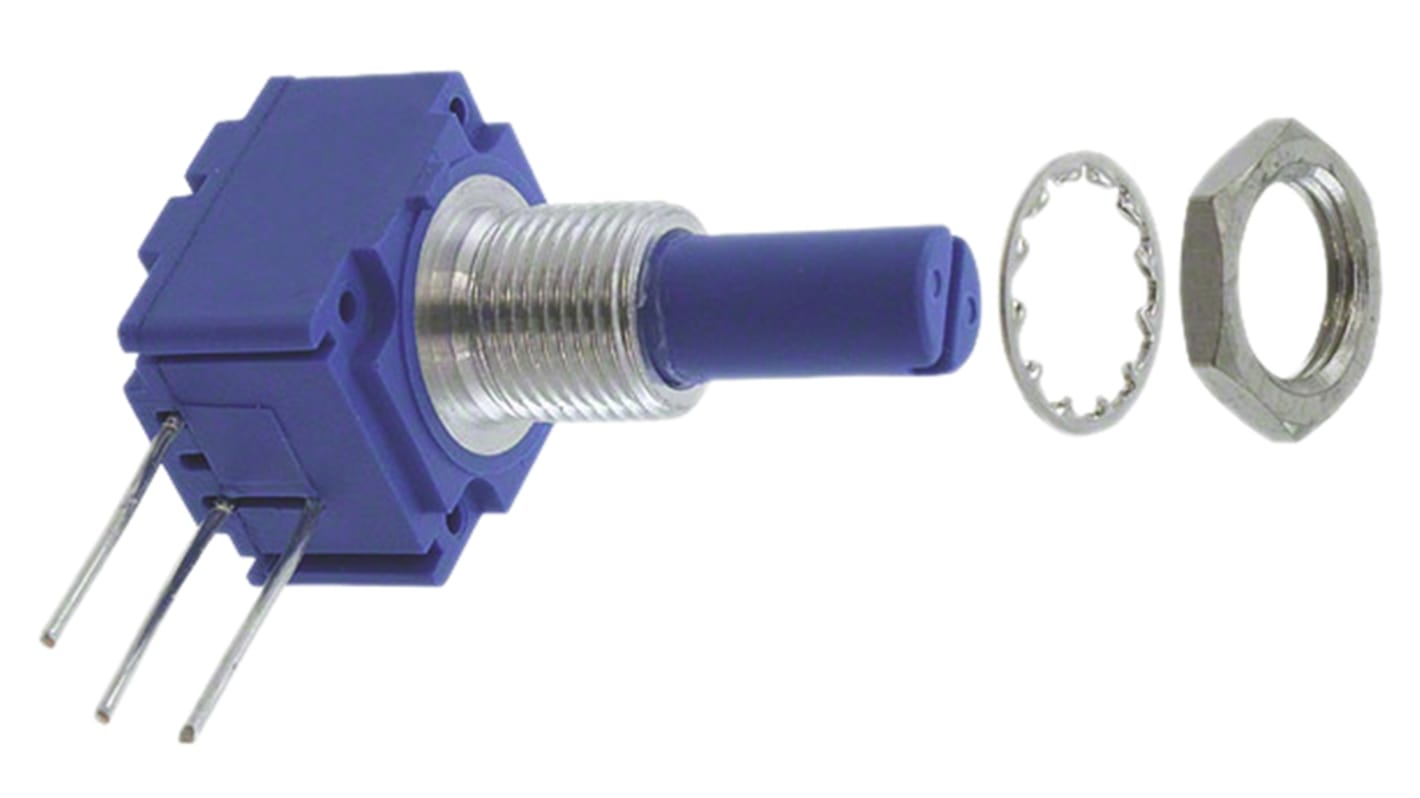

Bourns 93 5 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount, 93A1A-B28-A13L
- RS Stock No.:
- 827-4965
- Mfr. Part No.:
- 93A1A-B28-A13L
- Manufacturer:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR34.04
FREE delivery for orders over RM 150.00
In Stock
- Plus 12 unit(s) shipping from 05 October 2026
- Plus 266 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR34.04 |
| 5 - 9 | MYR33.75 |
| 10 - 44 | MYR33.52 |
| 45 - 89 | MYR30.48 |
| 90 + | MYR28.84 |
*price indicative
- RS Stock No.:
- 827-4965
- Mfr. Part No.:
- 93A1A-B28-A13L
- Manufacturer:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Potentiometer | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 5kΩ | |
| Number of Gangs | 1 | |
| Shaft Diameter | 6.35mm | |
| Packaging | Bulk | |
| Number of Turns | 1 | |
| Power Rating | 2W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mount Type | Panel Mount | |
| Termination Style | PC Pin | |
| Shaft Length | 22.2mm | |
| Minimum Operating Temperature | -40°C | |
| Adjustment Type | Side | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 125°C | |
| Depth | 17.45mm | |
| Length | 15.88mm | |
| Height | 30.15mm | |
| Standards/Approvals | RoHS | |
| Tolerance ± | 10% | |
| Series | 93 | |
| Actuator Type | Slotted Shaft | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Potentiometer | ||
Potentiometer Type Rotary | ||
Maximum Resistance 5kΩ | ||
Number of Gangs 1 | ||
Shaft Diameter 6.35mm | ||
Packaging Bulk | ||
Number of Turns 1 | ||
Power Rating 2W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mount Type Panel Mount | ||
Termination Style PC Pin | ||
Shaft Length 22.2mm | ||
Minimum Operating Temperature -40°C | ||
Adjustment Type Side | ||
Pin Count 6 | ||
Maximum Operating Temperature 125°C | ||
Depth 17.45mm | ||
Length 15.88mm | ||
Height 30.15mm | ||
Standards/Approvals RoHS | ||
Tolerance ± 10% | ||
Series 93 | ||
Actuator Type Slotted Shaft | ||
91 and 93 Series Single-Turn Rotary Linear Cermet Potentiometers
91 and 93 series single-turn rotary linear cermet potentiometers with a conductive plastic element and virtually infinite electrical circuit isolation. These single-turn rotary linear potentiometers are PCB through hole mount:
Part numbers prefixed with '91' have in-line PC pins
Part numbers prefixed with '93' have 'L' pattern PC pins
The shafts of these rotary linear potentiometers are single slotted and MADE from plastic. For further technical information please refer to datasheets
