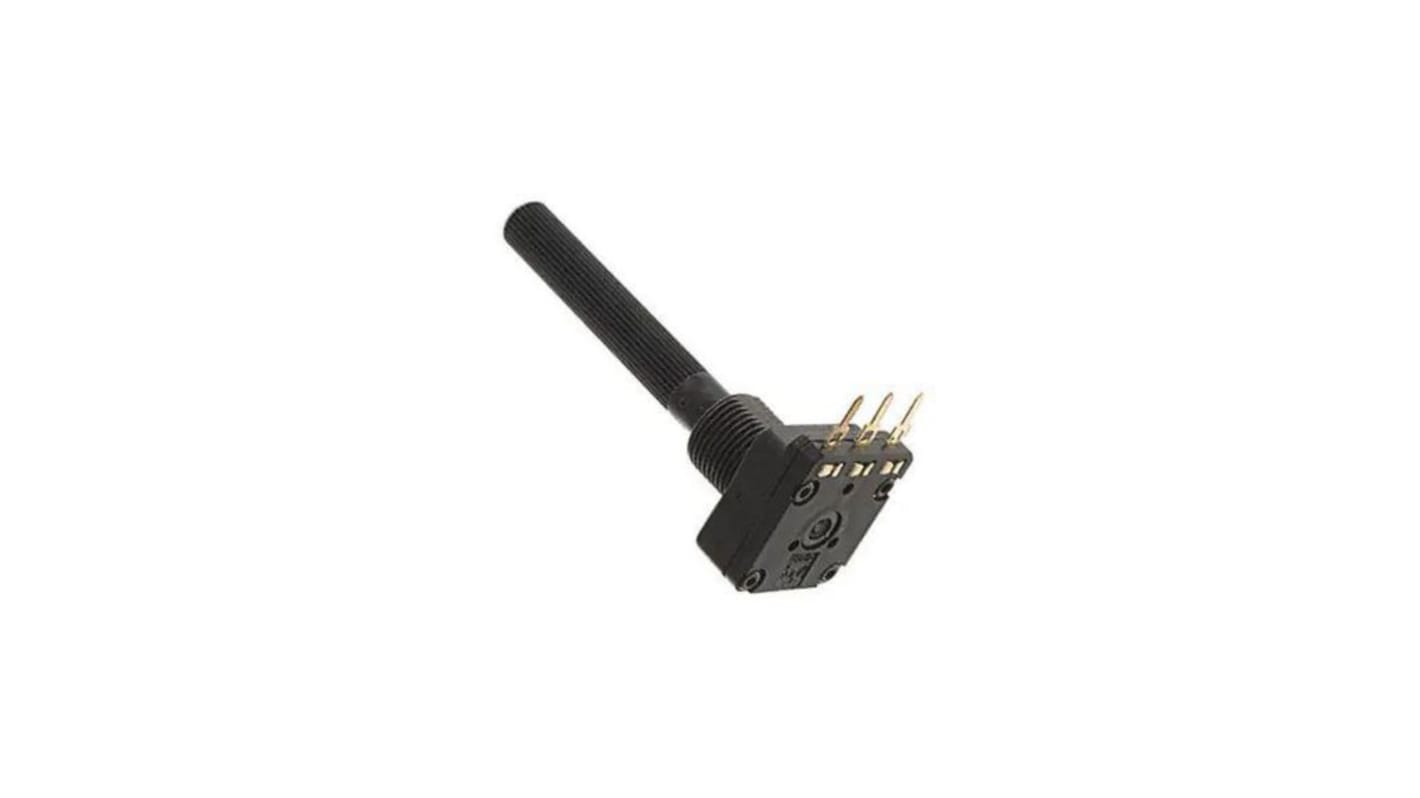

PIHER SENSORS AND CONTROLS S.S.A 10 kΩ Linear Potentiometer 1-Turns 1-Gang Panel, Panel Mount, PC16SH-10IP06-103A2020-TA
- RS Stock No.:
- 283-6409
- Distrelec Article No.:
- 302-44-839
- Mfr. Part No.:
- PC16SH-10IP06-103A2020-TA
- Manufacturer:
- PIHER SENSORS AND CONTROLS S.S.A
Subtotal (1 unit)*
MYR11.12
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR11.12 |
*price indicative
- RS Stock No.:
- 283-6409
- Distrelec Article No.:
- 302-44-839
- Mfr. Part No.:
- PC16SH-10IP06-103A2020-TA
- Manufacturer:
- PIHER SENSORS AND CONTROLS S.S.A
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PIHER SENSORS AND CONTROLS S.S.A | |
| Product Type | Potentiometer | |
| Potentiometer Type | Linear | |
| Maximum Resistance | 10kΩ | |
| Number of Gangs | 1 | |
| Shaft Diameter | 6mm | |
| Number of Turns | 1 | |
| Power Rating | 200mW | |
| Mount Type | Panel, Panel Mount | |
| Shaft Length | 31.5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Height | 20.5mm | |
| Tolerance ± | 20% | |
| Select all | ||
|---|---|---|
Brand PIHER SENSORS AND CONTROLS S.S.A | ||
Product Type Potentiometer | ||
Potentiometer Type Linear | ||
Maximum Resistance 10kΩ | ||
Number of Gangs 1 | ||
Shaft Diameter 6mm | ||
Number of Turns 1 | ||
Power Rating 200mW | ||
Mount Type Panel, Panel Mount | ||
Shaft Length 31.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Height 20.5mm | ||
Tolerance ± 20% | ||
- COO (Country of Origin):
- CN
The 16 mm Carbon Potentiometer features a carbon resistive element and offers IP54 protection according to IEC 60529. It has a modular gang type design that supports up to 4 units. The potentiometer is made of self extinguishable material UL 94-V0 and comes with various optional extras like metal support, stereo matching, switch, nut & washer, and brushless & shiftless models. With a mechanical rotation angle of 300° ± 5° and an electrical rotation angle of 280° ± 20°, this potentiometer provides precise control.
16 mm Carbon Potentiometer
IP54 protection according to IEC 60529
Modular gang type design (up to 4 units)
Self extinguishable material UL 94-V0
Max. Voltage of 250 VDC (line), 125 VDC (no line)
Nominal Power of 0.2 W (line), 0.1 W (no line)
Operating temperature of-25°C to +70°C
Various optional extras available
