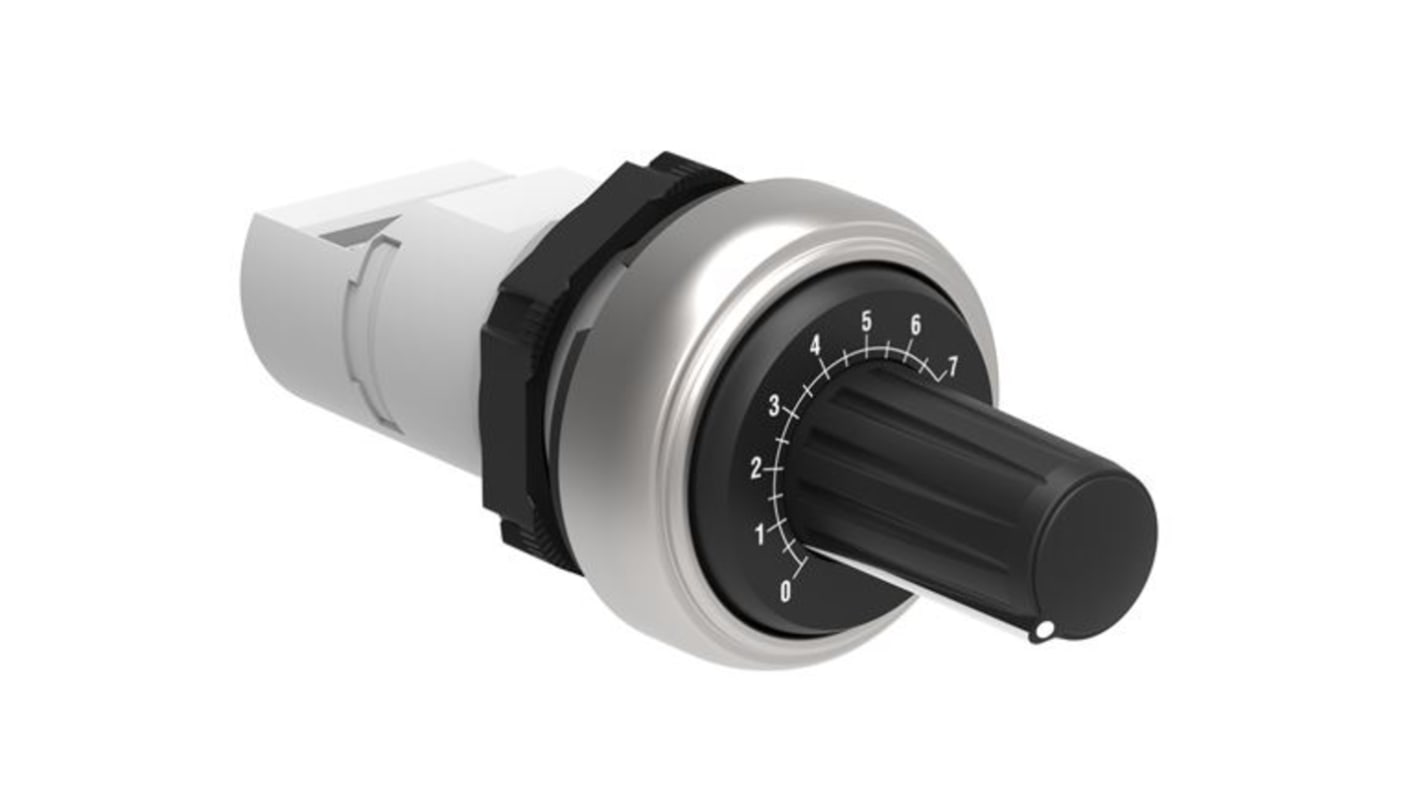

Lovato Electric LPCPA 500 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel, LPCPA500
- RS Stock No.:
- 224-7366
- Mfr. Part No.:
- LPCPA500
- Manufacturer:
- Lovato Electric
Subtotal (1 unit)*
MYR484.35
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR484.35 |
*price indicative
- RS Stock No.:
- 224-7366
- Mfr. Part No.:
- LPCPA500
- Manufacturer:
- Lovato Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Potentiometer Type | Rotary | |
| Product Type | Potentiometer | |
| Maximum Resistance | 500kΩ | |
| Shaft Diameter | 22mm | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Precision | |
| Element Material | Cermet | |
| Mount Type | Panel | |
| Shaft Length | 33.2mm | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -25°C | |
| Adjustment Type | Top | |
| Maximum Operating Temperature | 70°C | |
| Depth | 29.5mm | |
| Standards/Approvals | IEC, EN, EAC, cULus, CSA, CCC | |
| Length | 70.4mm | |
| Height | 29.5mm | |
| Series | LPCPA | |
| Actuator Type | Knob Shaft | |
| Tolerance ± | 10% | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Potentiometer Type Rotary | ||
Product Type Potentiometer | ||
Maximum Resistance 500kΩ | ||
Shaft Diameter 22mm | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Precision | ||
Element Material Cermet | ||
Mount Type Panel | ||
Shaft Length 33.2mm | ||
Pin Count 3 | ||
Minimum Operating Temperature -25°C | ||
Adjustment Type Top | ||
Maximum Operating Temperature 70°C | ||
Depth 29.5mm | ||
Standards/Approvals IEC, EN, EAC, cULus, CSA, CCC | ||
Length 70.4mm | ||
Height 29.5mm | ||
Series LPCPA | ||
Actuator Type Knob Shaft | ||
Tolerance ± 10% | ||
The Lovato monoblock potentiometers are typically used for regulating the parameters of many devices (e.g. the speed of the electric motors through static converters). monoblock body design permits direct use of the potentiometer by panel fitting with fixing ring and subsequent tightening of cables into the built-in terminal block. It has 500 kohm resistance value.
Side cable entry
Certification obtained from cULus, EAC, CCC
