RS PRO, 3.81mm Pitch, 5 Way, Right Angle, Pluggable Terminal Block, Plug, Through Hole, Screw Termination
- RS Stock No.:
- 897-1086
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR52.86
FREE delivery for orders over RM 500.00
In Stock
- 1,030 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 31 December 2025
- Plus 1,000 unit(s) shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 95 | MYR10.572 | MYR52.86 |
| 100 - 495 | MYR10.276 | MYR51.38 |
| 500 + | MYR8.458 | MYR42.29 |
*price indicative
- RS Stock No.:
- 897-1086
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 5 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Termination Method | Screw | |
| Current Rating | 8A | |
| Voltage Rating | 125 V | |
| Colour | Green | |
| Material | Polyamide | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 5 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Termination Method Screw | ||
Current Rating 8A | ||
Voltage Rating 125 V | ||
Colour Green | ||
Material Polyamide | ||
- COO (Country of Origin):
- CN

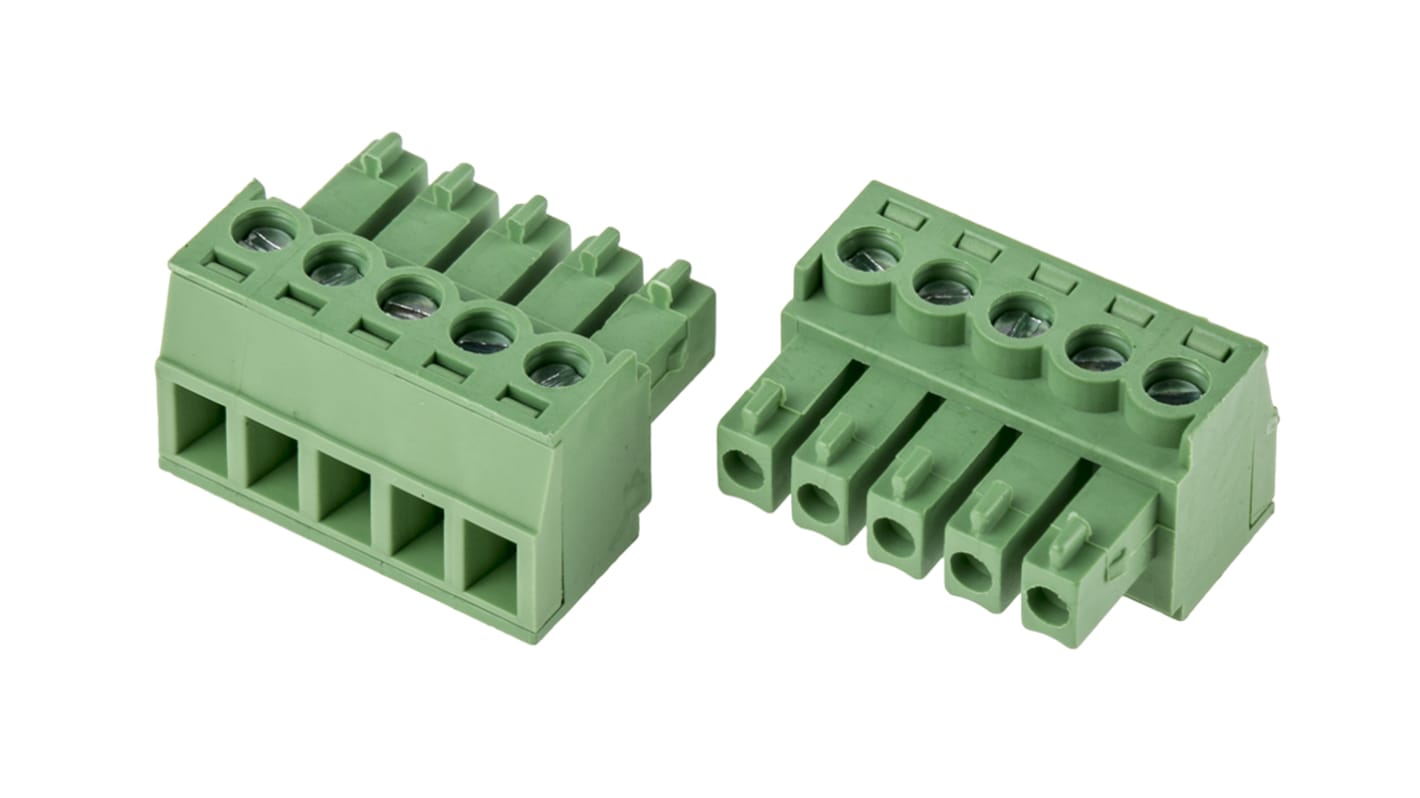

RS PRO 5-Way PCB Terminal Block, 3.81 mm Pitch
Connect two or more wires together with this five-way terminal block from RS PRO. It can be easily mounted on a PCB (printed circuit board) and has a through-hole mounting design for simple installation.
The block is made from polyamide (PA66), which is resistant to impact and wear, as well as having a high level of flame retardance – a UL (Underwriters Laboratories) 94-V0 rating indicates that it will burn for no more than 30 seconds when exposed to a naked flame. A broad operating temperature range of -33°C to +120°C also makes it safe to use in a variety of demanding environments.
This terminal's contacts are easy to connect via screw termination, and its screws are made from a tin-plated steel material, offering a high level of durability and rust-proofing for reliable performance over a long lifespan. You can use it for electronics applications and industrial machinery.
The block is made from polyamide (PA66), which is resistant to impact and wear, as well as having a high level of flame retardance – a UL (Underwriters Laboratories) 94-V0 rating indicates that it will burn for no more than 30 seconds when exposed to a naked flame. A broad operating temperature range of -33°C to +120°C also makes it safe to use in a variety of demanding environments.
This terminal's contacts are easy to connect via screw termination, and its screws are made from a tin-plated steel material, offering a high level of durability and rust-proofing for reliable performance over a long lifespan. You can use it for electronics applications and industrial machinery.
Features and Benefits
• Right angle body orientation
• Green colour
• Polyamide material
• Through-hole mounting type
• Five contacts
• Single row
• Screw termination method
• Current rating of 8 A
• Voltage rating of 125 V
• Depth of 15.5 mm
• Width of 11.2 mm
• Length of 19.84 mm
• Pitch of 3.81 mm
• Green colour
• Polyamide material
• Through-hole mounting type
• Five contacts
• Single row
• Screw termination method
• Current rating of 8 A
• Voltage rating of 125 V
• Depth of 15.5 mm
• Width of 11.2 mm
• Length of 19.84 mm
• Pitch of 3.81 mm
