Phoenix Contact, 3.81mm Pitch, 7 Way, , Pluggable Terminal Block, Header, Wave Soldering, Solder Termination, 1803471

RS Stock No.:: 802-8753
Mfr. Part No.:: 1803471
Manufacturer:: Phoenix Contact

Phoenix Contact, 3.81mm Pitch, 7 Way, , Pluggable Terminal Block, Header, Wave Soldering, Solder Termination, 1803471

Price Each**

MYR11.60

228 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR11.60

**price indicative

RS Stock No.:: 802-8753
Mfr. Part No.:: 1803471
Manufacturer:: Phoenix Contact

Phoenix Contact MINI COMBICON MC and MCV Series 3.81mm Single Level PCB Terminal Block Headers

MINI COMBICON MC & MCV series single level low profile right angle PCB through hole mounting shrouded terminal block headers with a compact 3.81mm pitch and male pins. These MINI COMBICON terminal blocks are available with threaded flanges and lock and release mechanisms.
For marker cards see stock number 648-5508
For mating Lock & Release Plugs see stock number 220-4658 typically

Features and benefits:

Mounted via through-hole and soldered, will allow you to use these connectors worldwide

Total flexibility with your design - one header accepts multiple connections technologies so you can use one series of headers

Pitch of 3.81mm for compatibility with most other connectors

Shrouded pins provide extra protection to your connection and can offer sturdy connections overtime

Nominal current of 8A

What is a PCB header?

A PCB header is a type of connector that is used on printed circuit boards, most commonly motherboards to allow you to connect other accessories or cables into a single connector on the circuit board. They come in different shapes and sizes and can be mounted in various ways. The MC & MCV series are all recommended to be wave soldered onto the PCB.

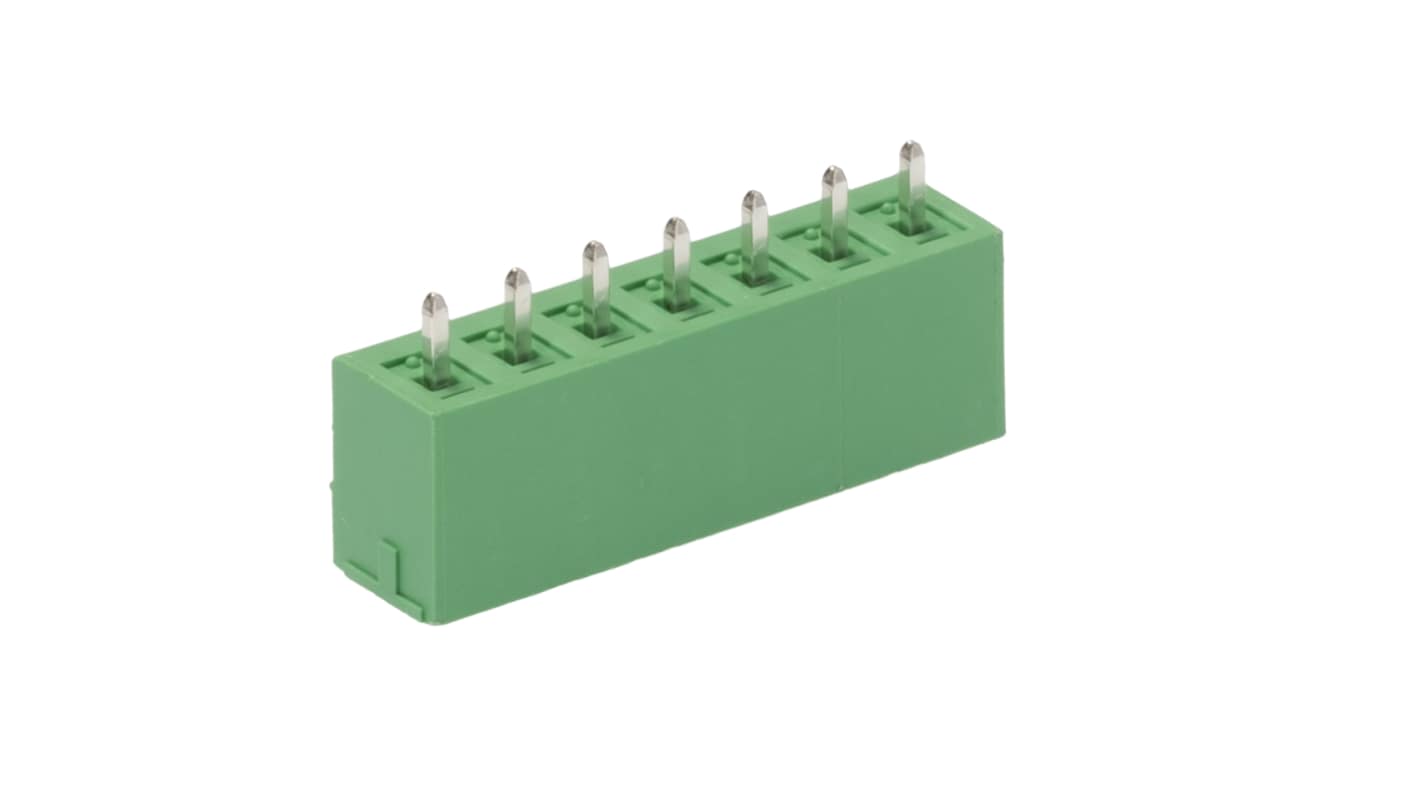

Phoenix Contact MCV 1.5/7-G-3.81 Series Pluggable Terminal Block, 3.81mm Pitch, 8.0A Current Rating - 1803471

This pluggable terminal block facilitates connections in electrical installations with its robust design and user-friendly interface. It serves as an essential component for professionals in the automation and electrical industries, providing a dependable solution for connecting multiple wires and ensuring an efficient setup suitable for various applications.

Features & Benefits

• Current rating of 8A for consistent performance
• Designed for wave soldering to enhance assembly efficiency
• Straight header orientation for straightforward installation
• Constructed from copper alloy for effective conductivity
• 3.81mm pitch for compact designs
• Green finish for easy identification in electrical connections

Applications

• Utilised in control systems for effective signal transmission
• Ideal for PCB assemblies with multi-contact connections
• Suitable for automation equipment to streamline wiring
• Employed in electrical panels for organised circuit connections

What types of wires can I use with this terminal block?

A variety of wire types can be accommodated as long as they meet the required gauge specifications.

Is there a specific temperature range for its operation?

It is advisable to operate within standard electrical temperature limits for optimal performance and longevity.

Can this component be reused after disassembly?

Yes, it can be reused in new installations if the connections remain undamaged.

What tools are needed for installation?

Basic soldering tools are required to attach wires securely to the terminal block.

Attribute	Value
Pluggable Terminal Block Type	Header
Number of Contacts	7
Pitch	3.81mm
Series	MCV 1.5/7-G-3.81
Number of Rows	1
Body Orientation	Straight
Mounting Type	Wave Soldering
Termination Method	Solder
Current Rating	8.0A
Voltage Rating	250 V
Colour	Green
Contact Material	Copper Alloy
Contact Plating	Tin
