Phoenix Contact COMBICON PTSM Series Pluggable Terminal Block, 3-Contact, 2.5 mm Pitch, 1 Row, 1815277
- RS Stock No.:
- 712-4522
- Mfr. Part No.:
- 1815277
- Manufacturer:
- Phoenix Contact

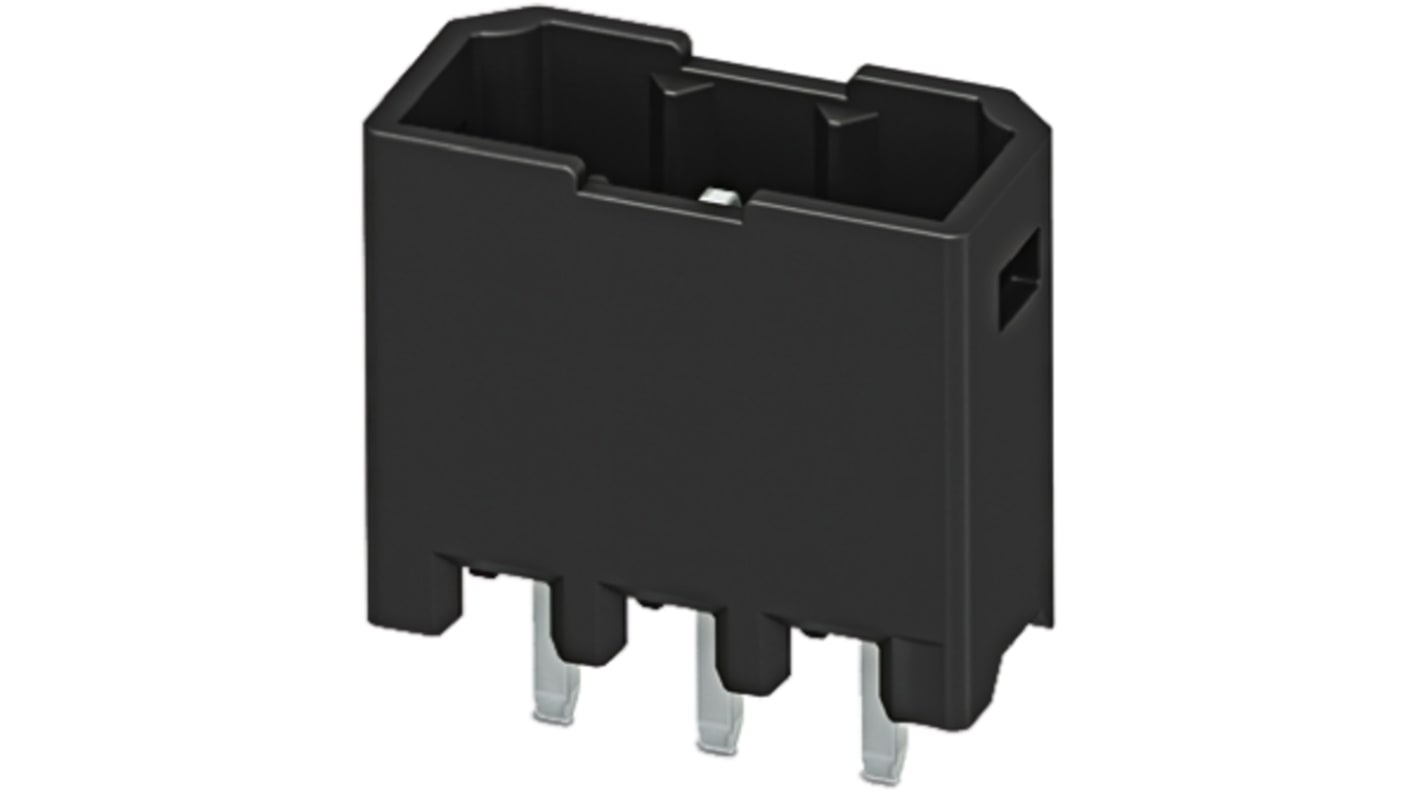

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR20.52
FREE delivery for orders over RM 500.00
In Stock
- 295 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 120 | MYR4.104 | MYR20.52 |
| 125 - 370 | MYR4.048 | MYR20.24 |
| 375 - 995 | MYR3.968 | MYR19.84 |
| 1000 - 1995 | MYR3.89 | MYR19.45 |
| 2000 + | MYR3.812 | MYR19.06 |
*price indicative
- RS Stock No.:
- 712-4522
- Mfr. Part No.:
- 1815277
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 2.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | Polybutylene Terephthalate | |
| Maximum Wire Size mm² | 0.5mm² | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Colour | White | |
| Wire Connection Method | Solder | |
| Voltage | 160V | |
| Depth | 9.5mm | |
| Standards/Approvals | CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS | |
| Width | 9.2mm | |
| Series | COMBICON PTSM | |
| Length | 5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 2.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material Polybutylene Terephthalate | ||
Maximum Wire Size mm² 0.5mm² | ||
Connector Gender Male | ||
Orientation Straight | ||
Colour White | ||
Wire Connection Method Solder | ||
Voltage 160V | ||
Depth 9.5mm | ||
Standards/Approvals CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS | ||
Width 9.2mm | ||
Series COMBICON PTSM | ||
Length 5mm | ||
Phoenix Contact COMBICON PTSM 2.5mm PCB Terminal Block Headers
Professional 2.5 mm pitch headers from the PTSM series which provide compact and reliable connections where space limitations is an issue.
2.5 mm Pitch
Board to Board
Through Hole
Various positions available
White
