Adels Contact 160 Series Pluggable Terminal Block, 12-Contact, 10 mm Pitch, 1 Row, 160 ST/12
- RS Stock No.:
- 283-5377
- Distrelec Article No.:
- 148-35-377
- Mfr. Part No.:
- 160 ST/12
- Manufacturer:
- Adels Contact
Subtotal (1 unit)*
MYR23.52
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR23.52 |
*price indicative
- RS Stock No.:
- 283-5377
- Distrelec Article No.:
- 148-35-377
- Mfr. Part No.:
- 160 ST/12
- Manufacturer:
- Adels Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adels Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 12 | |
| Pitch | 10mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Voltage | 400V | |
| Standards/Approvals | RoHS, EN 61984 | |
| Series | 160 | |
| Select all | ||
|---|---|---|
Brand Adels Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 12 | ||
Pitch 10mm | ||
Number of Rows 1 | ||
Current 16A | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 4mm² | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Voltage 400V | ||
Standards/Approvals RoHS, EN 61984 | ||
Series 160 | ||
- COO (Country of Origin):
- DE

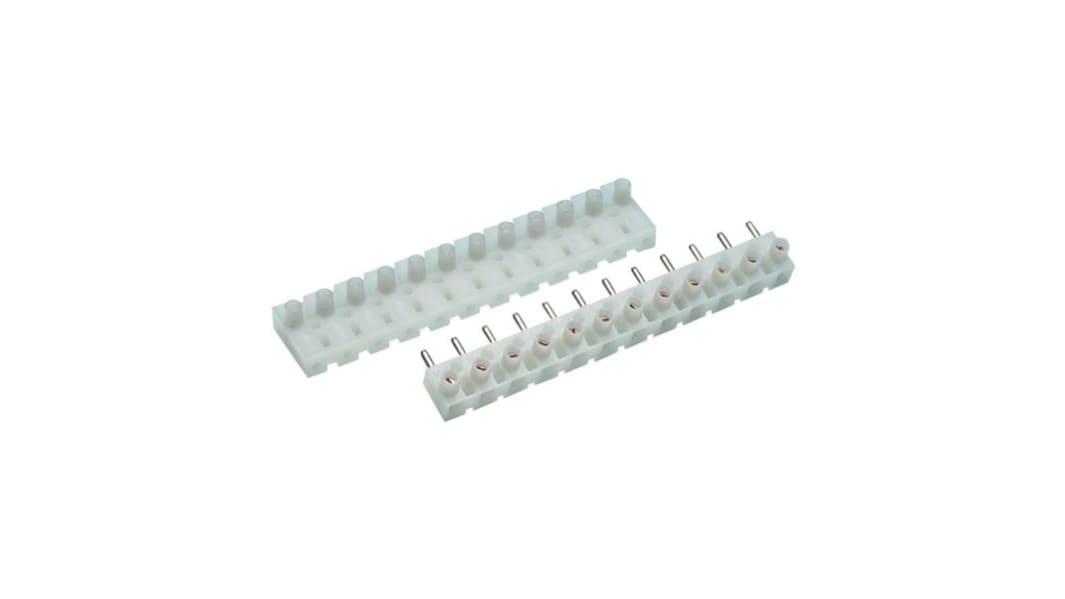

The Plug without Wire Protector, featuring a straight design with a 10mm pitch and 12 poles. This plug offers versatility, allowing plug in and separability at any point along its length. It comes with the option of including or excluding wire protection, catering to different application needs.
RoHS compliant
UL94V2 combustibility class
EN 6198 Standard met
