Wurth Elektronik 369B Series Pluggable Terminal Block, 2-Contact, 5 mm Pitch, 1-Row
- RS Stock No.:
- 191-5572
- Mfr. Part No.:
- 691369700002B
- Brand:
- Wurth Elektronik

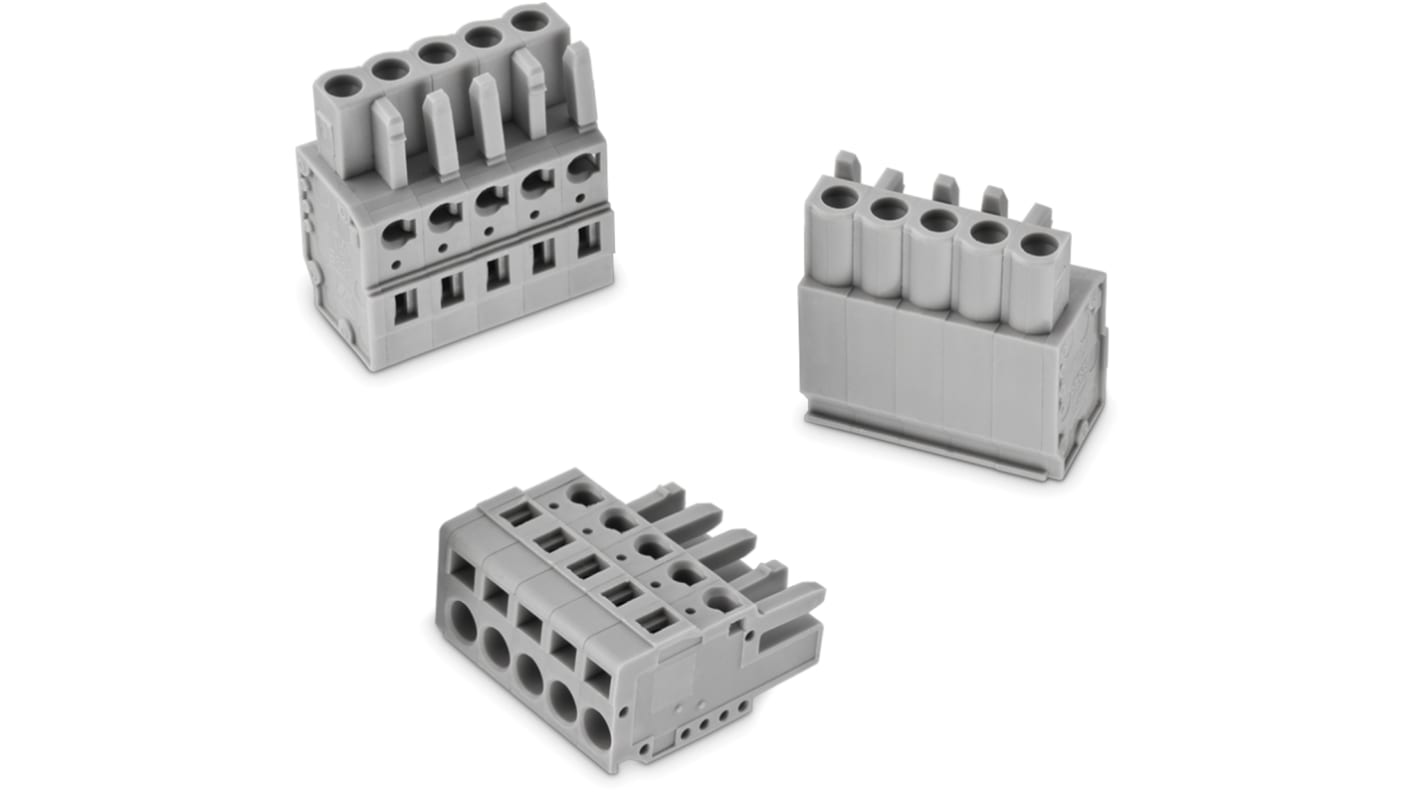

Image representative of range
Bulk discount available
Subtotal (1 box of 100 units)*
MYR739.20
FREE delivery for orders over RM 500.00
In Stock
- Plus 300 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 - 100 | MYR7.392 | MYR739.20 |
| 200 - 300 | MYR7.23 | MYR723.00 |
| 400 + | MYR7.097 | MYR709.70 |
*price indicative
- RS Stock No.:
- 191-5572
- Mfr. Part No.:
- 691369700002B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.081mm² | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 3.31mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Horizontal | |
| Wire Connection Method | Screw | |
| Colour | Grey | |
| Voltage | 2.5 kV | |
| Standards/Approvals | RoHS | |
| Series | 369B | |
| Depth | 26.5mm | |
| Width | 14.6 mm | |
| Length | 11.5mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.081mm² | ||
Connector Gender Male | ||
Maximum Wire Size mm² 3.31mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Horizontal | ||
Wire Connection Method Screw | ||
Colour Grey | ||
Voltage 2.5 kV | ||
Standards/Approvals RoHS | ||
Series 369B | ||
Depth 26.5mm | ||
Width 14.6 mm | ||
Length 11.5mm | ||
- COO (Country of Origin):
- CN
WR-TBL Würth Elektronik Teminal Blocks
The Terminal Block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
