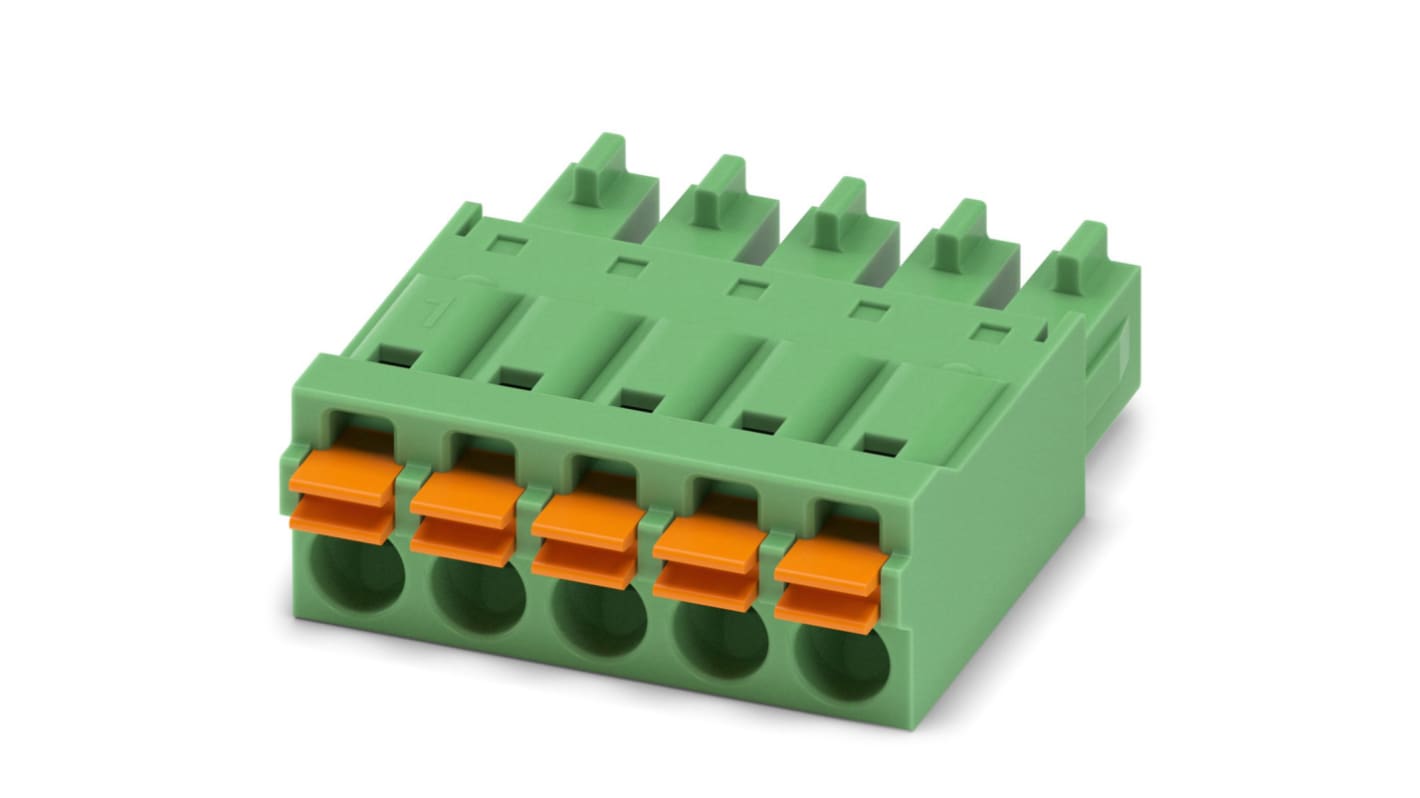

Phoenix Contact FMC 1.5/5-ST-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 1745920

This image is representative of the product range

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 250 units)*

MYR4,534.25

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Box*
250 - 1000MYR18.137MYR4,534.25
1250 - 6000MYR17.593MYR4,398.25
6250 +MYR15.833MYR3,958.25

*price indicative

RS Stock No.:
176-1202
Mfr. Part No.:
1745920
Manufacturer:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

5

Product Type

Pluggable Terminal Block

Pitch

3.81mm

Current

8A

Number of Rows

1

Housing Material

Polyamide

Minimum Wire Size mm²

0.2mm²

Connector Gender

Female

Maximum Wire Size mm²

0.2mm²

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

12 AWG

Orientation

Straight

Wire Connection Method

Push-in Spring

Colour

Green

Voltage

160 V

Series

FMC 1.5/5-ST-3.81

Standards/Approvals

No

Width

19.49 mm

Depth

7.75mm

Length

21.9mm

COO (Country of Origin):
DE

Phoenix Contact PCB Terminal Block, 8A Current Rating, Female Connector - FMC 1,5/ 5-ST-3,81 - 1745920


Quickly hook-up conductors to your circuit board using this PCB Terminal Block from Phoenix Contact. Its spring technology helps you to quickly achieve secure and Durable connections by simply pushing conductors into the housing.

The component is protected against surges of up to 2.5kV, so there's little chance of electrical faults causing damage to your system. For safety, it's insulated to provide you with protection against electric shocks. This insulation also helps to reduce the risk of crosstalk with nearby electronic devices. Low-resistance tin contacts are on hand to ensure power flows efficiently and productivity is maximised.

Thanks to a low pitch of 3.81mm, this Terminal Block helps you to achieve packing efficiency on your circuit board. It's a popular choice for use in electrical installations and automotive manufacturing applications.

Features & Benefits


• Meets UL94 V0 flammability standards, which means it's flame retardant and won't catch alight in the event of a fire

• Hardwearing nylon construction resists corrosion, so the unit's compatible with demanding and damp conditions

• Defined contact force that helps to ensure your wiring stays stable over an extended period for reduced maintenance
