- RS Stock No.:
- 314-0151
- Manufacturer:
- Tufnol®
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Lot of 1
MYR2,263.91
| Lot(s) | Per Lot |
| 1 - 14 | MYR2,263.91 |
| 15 - 29 | MYR2,216.38 |
| 30 + | MYR2,149.89 |
- RS Stock No.:
- 314-0151
- Manufacturer:
- Tufnol®
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

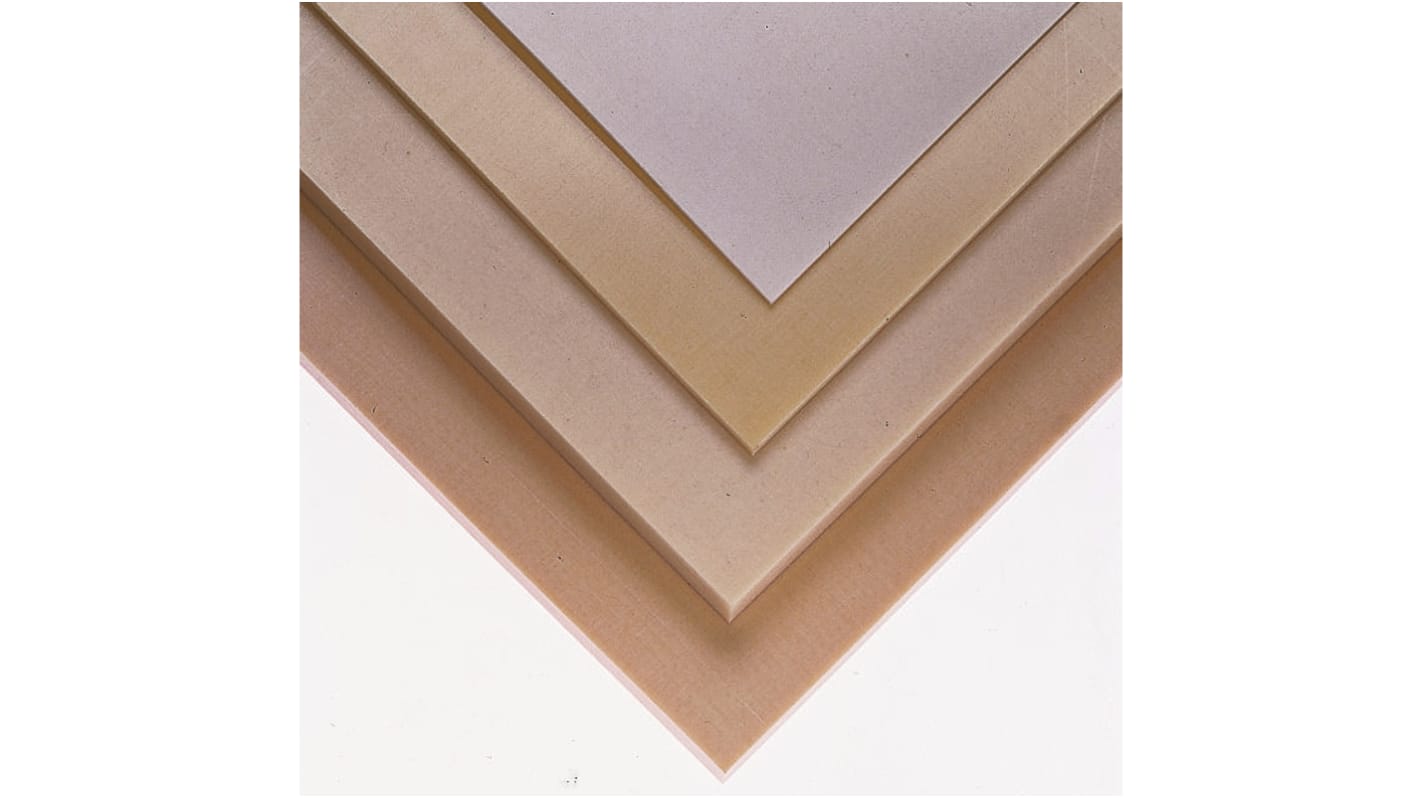

Tufnol®, 6F/45
6F/45 is a fine weave cotton fabric combined with modified epoxy resin to produce a rigid sheet material with outstanding electrical performance. The key benefits of this material are:
Very high resistance to electrical tracking
Mechanically strong and wear resistant
Resistant to a wide range of chemicals
Conforms to BS2572 Type F6 and EN60893 Type EP CC 301
Can be machined to high tolerance with a good machined finish
Mechanically strong and wear resistant
Resistant to a wide range of chemicals
Conforms to BS2572 Type F6 and EN60893 Type EP CC 301
Can be machined to high tolerance with a good machined finish
Standards
BS 2572 Type F6; EN 60893 Type EP CC 301
Specifications
Attribute | Value |
|---|---|
| Form | Full |
| Colour | Beige |
| Length | 590mm |
| Width | 285mm |
| Thickness | 20mm |
| Material | SRBF |
| Laminated | Yes |
| Density | 1.36g/cm³ |
| Thermal Conductivity | 0.36W/mK |
| Maximum Operating Temperature | +120°C |
| Laminate Material | Epoxy Resin, Weave Cotton |
| Impact Strength | 4.6kJ/m² |
| Cross Breaking Strength | 170MPa |
