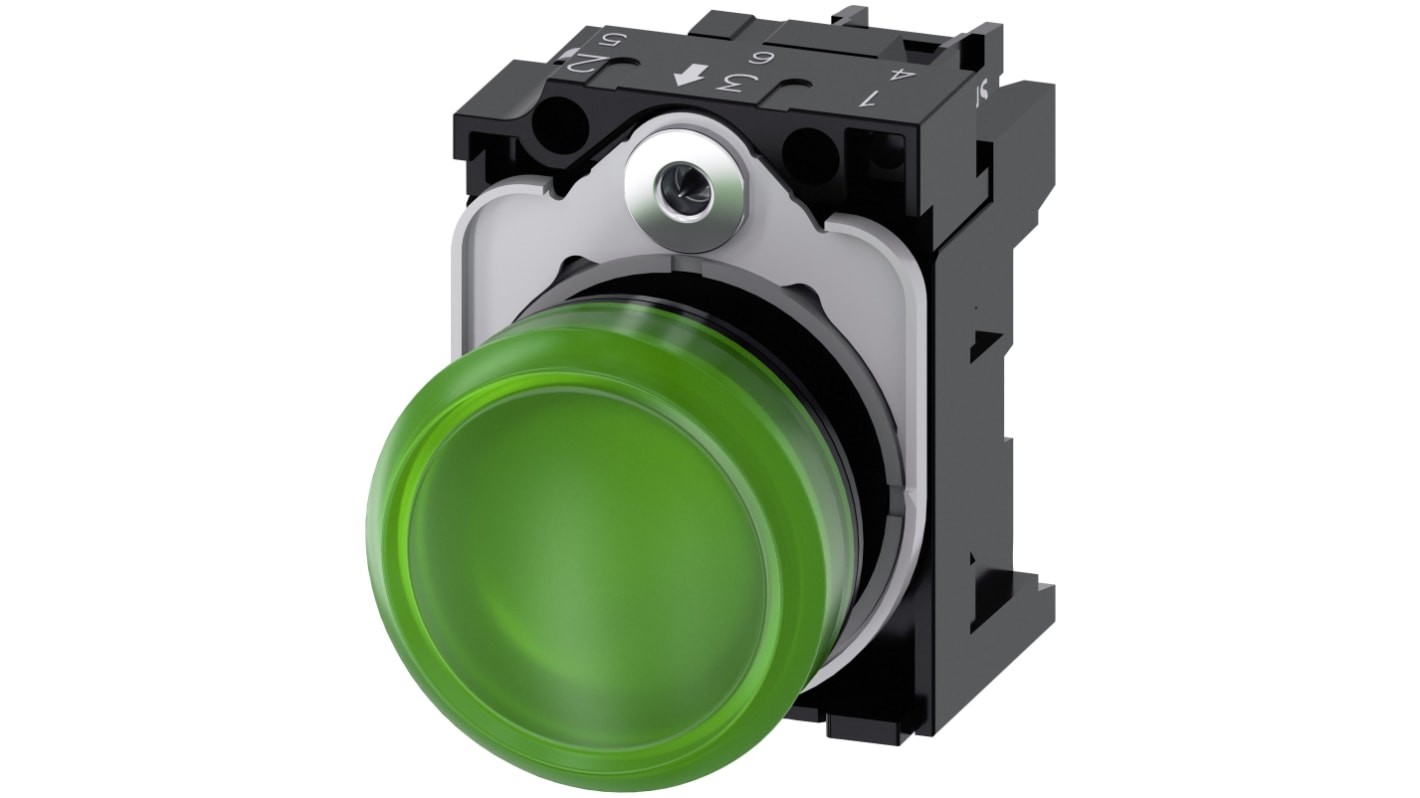

Siemens, Panel Mount Green LED Pilot Light, SIRIUS ACT 3SU11, 22 mm Cutout, 230V ac, IP20, Round

RS Stock No.:: 874-2074
Distrelec Article No.:: 300-21-131
Mfr. Part No.:: 3SU1106-6AA40-1AA0
Manufacturer:: Siemens

Siemens, Panel Mount Green LED Pilot Light, SIRIUS ACT 3SU11, 22 mm Cutout, 230V ac, IP20, Round

Subtotal (1 unit)*

MYR205.88

FREE delivery for orders over RM 150.00

In Stock

Plus 16 unit(s) shipping from 09 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR205.88

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 874-2074
Distrelec Article No.:: 300-21-131
Mfr. Part No.:: 3SU1106-6AA40-1AA0
Manufacturer:: Siemens

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Product Type	Pilot Light
	Voltage	230V ac
	Pilot Light Colour	Green
	Cutout Diameter	22mm
	Lamp Type	LED
	Series	SIRIUS ACT 3SU11
	Mount Type	Panel Mount
	IP Rating	IP20
	Terminal Type	Screw
	Current Rating	3A
	Pilot Light Shape	Round
	Body Material	Plastic
	Hazardous Area Certification	No
	Standards/Approvals	CE, UL, CSA
	Better World Product	Yes
	Better World Claim	Extended Product Life, Low Carbon Manufacture
	Bezel Material	Metal

	Select all
	Brand Siemens
	Product Type Pilot Light
	Voltage 230V ac
	Pilot Light Colour Green
	Cutout Diameter 22mm
	Lamp Type LED
	Series SIRIUS ACT 3SU11
	Mount Type Panel Mount
	IP Rating IP20
	Terminal Type Screw
	Current Rating 3A
	Pilot Light Shape Round
	Body Material Plastic
	Hazardous Area Certification No
	Standards/Approvals CE, UL, CSA
	Better World Product Yes
	Better World Claim Extended Product Life, Low Carbon Manufacture
	Bezel Material Metal

COO (Country of Origin):: CZ

Siemens SIRIUS ACT 3SU11 Series Indicator Light, 22mm Cutout Diameter, 230V Operating Voltage - 3SU1106-6AA40-1AA0

This indicator light provides a panel-mounted Visual signal for industrial control equipment, using an integrated LED designed for 230V AC operation. The complete unit features a round green lens and a plastic holder intended for front-plate mounting, delivering a Compact signalling solution for electrical panels and machinery control stations. It is intended for routine signalling tasks where a bright green pilot lamp is required.

Features and Benefits:

• 230V AC LED light delivers clear status indication
• 3A inrush rating supports common control circuits
• IP20 Terminal protection simplifies safe wiring
• Screw Terminals accept 18 to 14 AWG conductors
• Operates from -25°C to +70°C for broad use

Applications

• Suitable for motor control panel status indication
• Ideal for factory automation signal panels
• Used with control relays and contactor feedback
• Can be used for machine operator stations
• Suitable for railway vehicle signalling

What type of connection does it use?

It uses screw-type terminals with tightening torque 0.8 to 0.9 N·m allowing 2 x conductor connections.

What light output can be expected?

The LED provides between 900 to 1800 mcd luminous intensity for visible signalling.

How does it resist mechanical stress?

It meets vibration and shock criteria up to 10 to 500 Hz at 5 g and 15 g/11 MS sinusoidal half-wave respectively.

What environmental categories permit its use?

It is rated for operation in categories 3M6, 3S2, 3B2, 3K6 with 10 to 95% relative humidity without condensation.

What are the mounting and panel requirements?

It mounts via front plate with a 22.3 mm mounting diameter and positive tolerance of 0.4 mm.

Approvals

IEC 60947-1, EN 60947-1
IEC 60947-5-1, EN 60947-5-1
