RS PRO 96 dB Panel Mount Continuous Internal 16 mm Piezo Buzzer Component 1.5 V dc Min 20V dc Max
- RS Stock No.:
- 617-3097
- Distrelec Article No.:
- 304-03-327
- Manufacturer:
- RS PRO

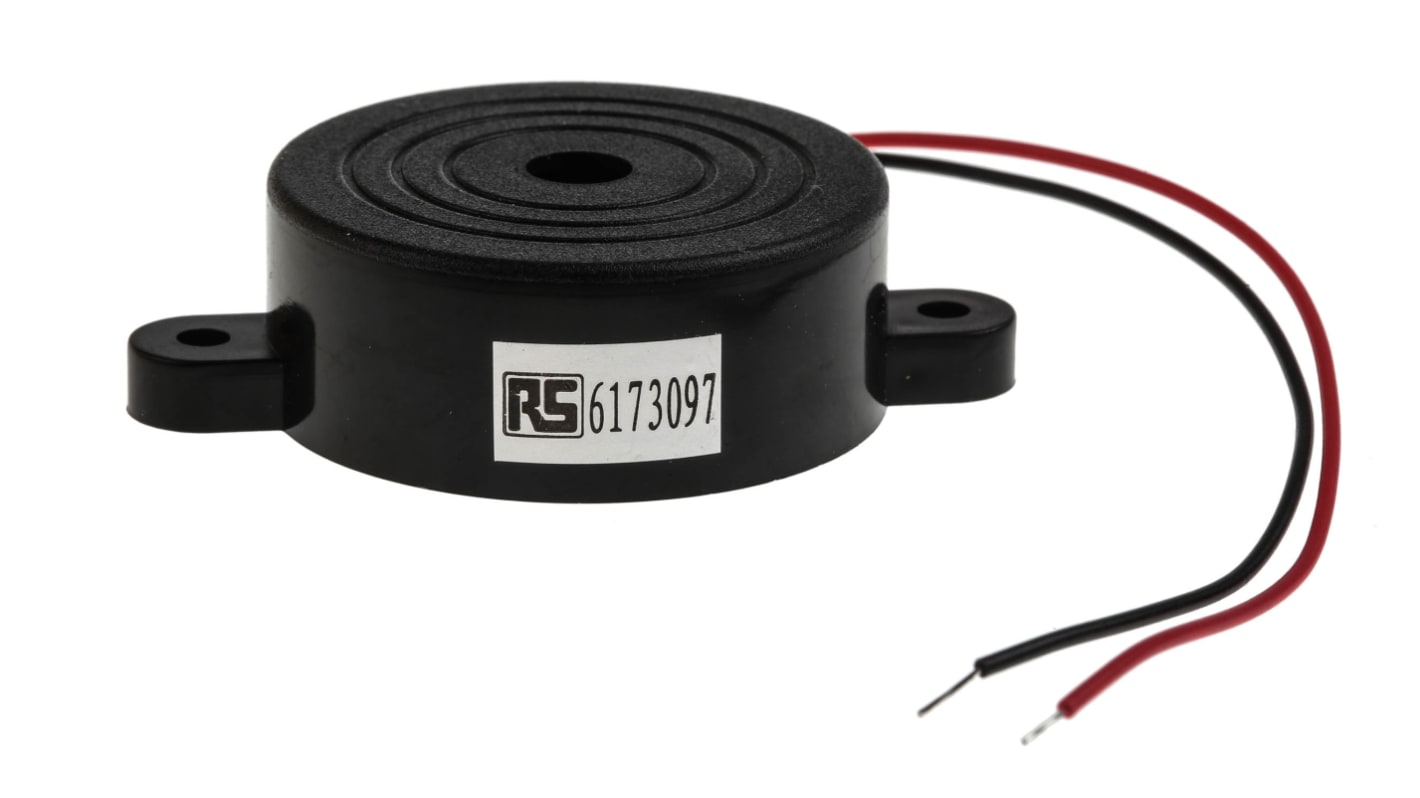

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR13.39
FREE delivery for orders over RM 500.00
In Stock
- Plus 4 unit(s) shipping from 27 April 2026
- Plus 116 unit(s) shipping from 27 April 2026
- Plus 53 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 12 | MYR13.39 |
| 13 - 64 | MYR13.14 |
| 65 + | MYR10.82 |
*price indicative
- RS Stock No.:
- 617-3097
- Distrelec Article No.:
- 304-03-327
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Panel Mount | |
| Minimum Supply Voltage | 1.5V dc | |
| Maximum Supply Voltage | 20V dc | |
| Sound Level | 96dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 41.8mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Termination Style | Lead | |
| Standards/Approvals | No | |
| Height | 16mm | |
| Maximum Frequency | 3.3kHz | |
| Minimum Frequency | 2300Hz | |
| Supply Current | 10mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Piezo Buzzer Component | ||
Mount Type Panel Mount | ||
Minimum Supply Voltage 1.5V dc | ||
Maximum Supply Voltage 20V dc | ||
Sound Level 96dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 41.8mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Termination Style Lead | ||
Standards/Approvals No | ||
Height 16mm | ||
Maximum Frequency 3.3kHz | ||
Minimum Frequency 2300Hz | ||
Supply Current 10mA | ||
Flanged continuous tone buzzer flying lead
RS Pro 10mA/20VDC Piezo Buzzer with ABS housing with 28AWG flange mounted wire leads, 96dB sound level, 2.8kHz resonant frequency, PCB mount and continuous tone.
Features
Internal circuitry for dc operation
High output levels
Operating Temperature -20°C to +60°C
Flanged mounting buzzer
Flying lead connections
Applications
Audio Sensing and Instrumentation
