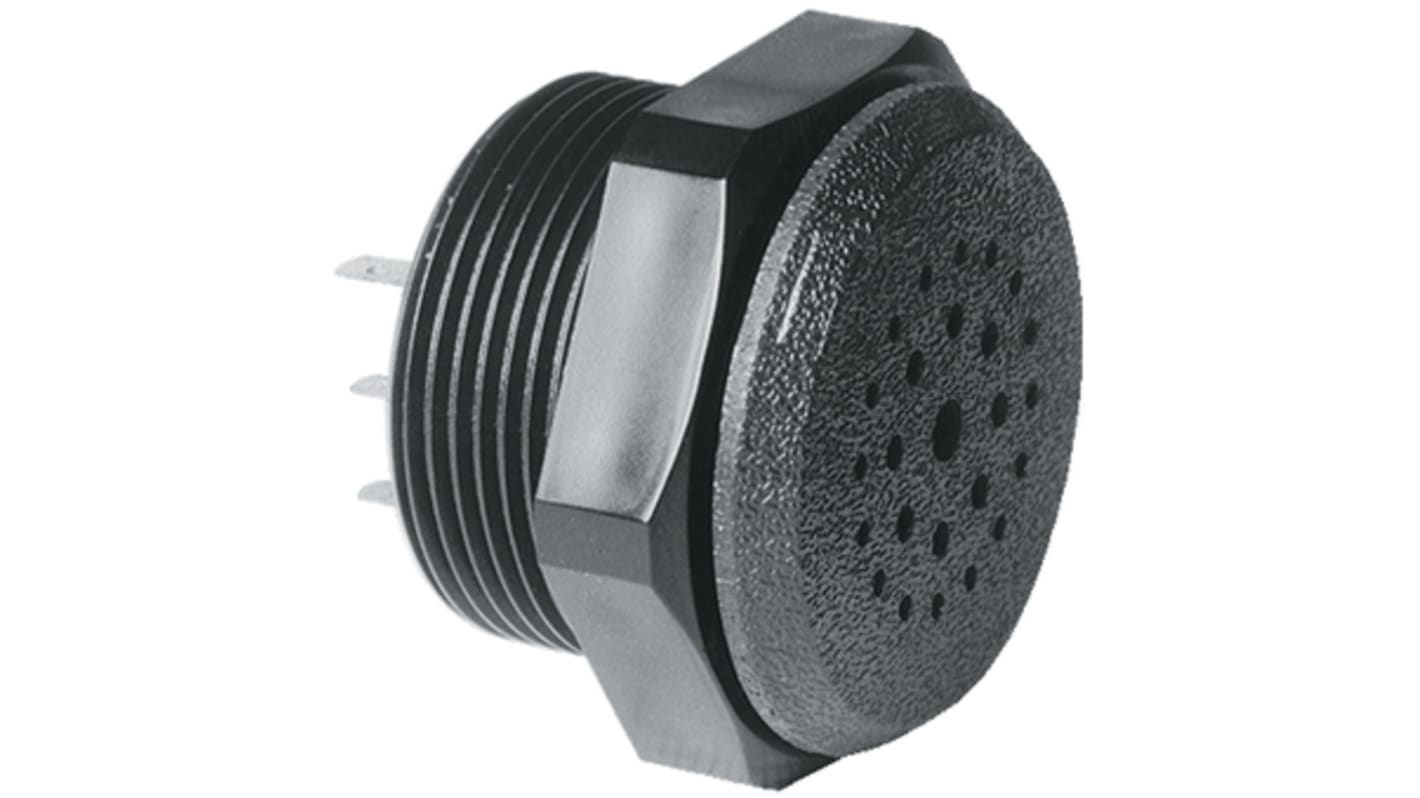

Digisound 85 dB Continuous Internal 26 mm Piezo Buzzer Component 5 V dc Min 28 V dc Max
- RS Stock No.:
- 283-6734
- Distrelec Article No.:
- 137-66-247
- Mfr. Part No.:
- B/CP 228
- Manufacturer:
- Digisound
Subtotal (1 unit)*
MYR114.89
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 410 unit(s) shipping from 23 March 2026
- Plus 25 unit(s) shipping from 18 June 2026
- Plus 50 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR114.89 |
*price indicative
- RS Stock No.:
- 283-6734
- Distrelec Article No.:
- 137-66-247
- Mfr. Part No.:
- B/CP 228
- Manufacturer:
- Digisound
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Digisound | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 5V dc | |
| Maximum Supply Voltage | 28V dc | |
| Sound Level | 85dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 36.5 mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Height | 26mm | |
| Standards/Approvals | No | |
| Maximum Frequency | 3kHz | |
| Supply Current | 18mA | |
| Select all | ||
|---|---|---|
Brand Digisound | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 5V dc | ||
Maximum Supply Voltage 28V dc | ||
Sound Level 85dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 36.5 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Height 26mm | ||
Standards/Approvals No | ||
Maximum Frequency 3kHz | ||
Supply Current 18mA | ||
The Piezo Signal Generator suitable for use in indoor and outdoor applications. Potential applications include machine construction, commercial vehicles industry, control cabinets, shipbuilding etc.
Continuous tone or pulsed tone
