- RS Stock No.:
- 224-0666
- Mfr. Part No.:
- 107.010.60
- Manufacturer:
- Werma
26 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR270.47
Units | Per Unit |
1 + | MYR270.47 |
- RS Stock No.:
- 224-0666
- Mfr. Part No.:
- 107.010.60
- Manufacturer:
- Werma
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

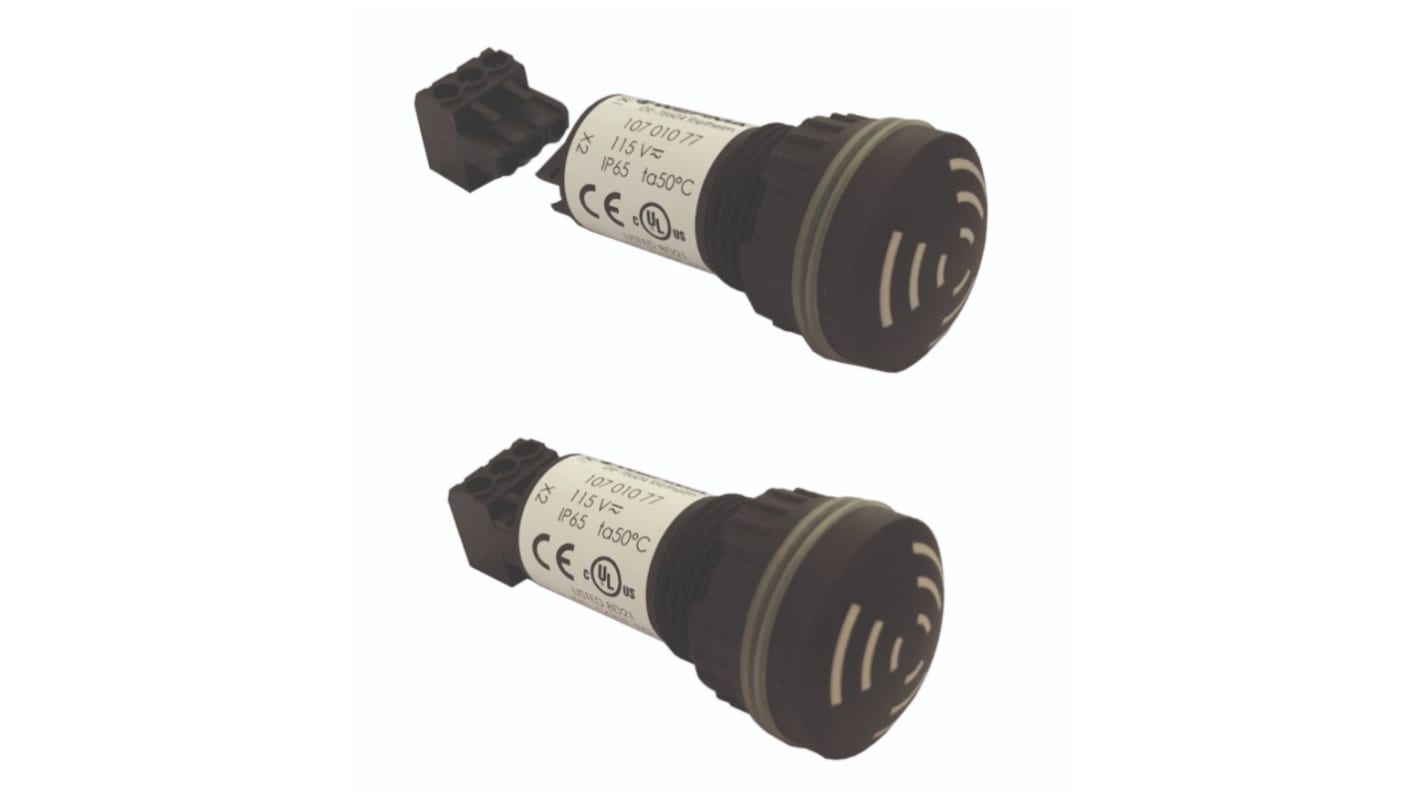

WERMA Installation Buzzer, 60dB, Pulse Tone - 107.010.60
Looking for an effective warning signal to make people aware of hazardous situations? Choose this buzzer from WERMA. When a fault occurs, it will emit a pulsing tone at a volume of 60dB (decibels) to alert personnel to the problem. Thanks to its wide operating voltage range of 115 to 230V AC, it's suitable for use with most common electrical systems. Its built-in mounting system and simple connector plug help save you time and effort during installation.
Features & Benefits
IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
Broad operating temperature range of -20°C to +50°C for use in hot and cold environments
Minimum service life of 5,000 hours for long-lasting performance
PA-GF (glass-filled polyamide) material for resistance to heat and wear
Broad operating temperature range of -20°C to +50°C for use in hot and cold environments
Minimum service life of 5,000 hours for long-lasting performance
PA-GF (glass-filled polyamide) material for resistance to heat and wear
Applications
Automation and process control
Switch cabinets
Industrial machinery
Switch cabinets
Industrial machinery
Is this buzzer energy-efficient?
Yes. This buzzer consumes only 12mA of current, making it an energy-efficient and cost-effective choice.
Can I install this device in small spaces?
Thanks to its compact dimensions of 61 (height) x 28mm (diameter), this unit is a good choice for installation in areas where space is limited.
Specifications
Attribute | Value |
---|---|
Mounting Type | Screw Terminal |
Minimum Supply Voltage | 115V ac |
Maximum Supply Voltage | 230V ac |
Sound Level | 60dB |
Tone Type | Buzzer |
Diameter | 28mm |
Height | 61mm |
Dimensions | 28(Dia.) x 61mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Maximum Frequency | 80 dB |
Minimum Frequency | 60 dB |
Supply Current | 12mA |
