Murata Surface Mount Diaphragm External 0.22 mm Piezoelectric Diaphragm
- RS Stock No.:
- 166-9823
- Mfr. Part No.:
- 7BB-20-3
- Manufacturer:
- Murata

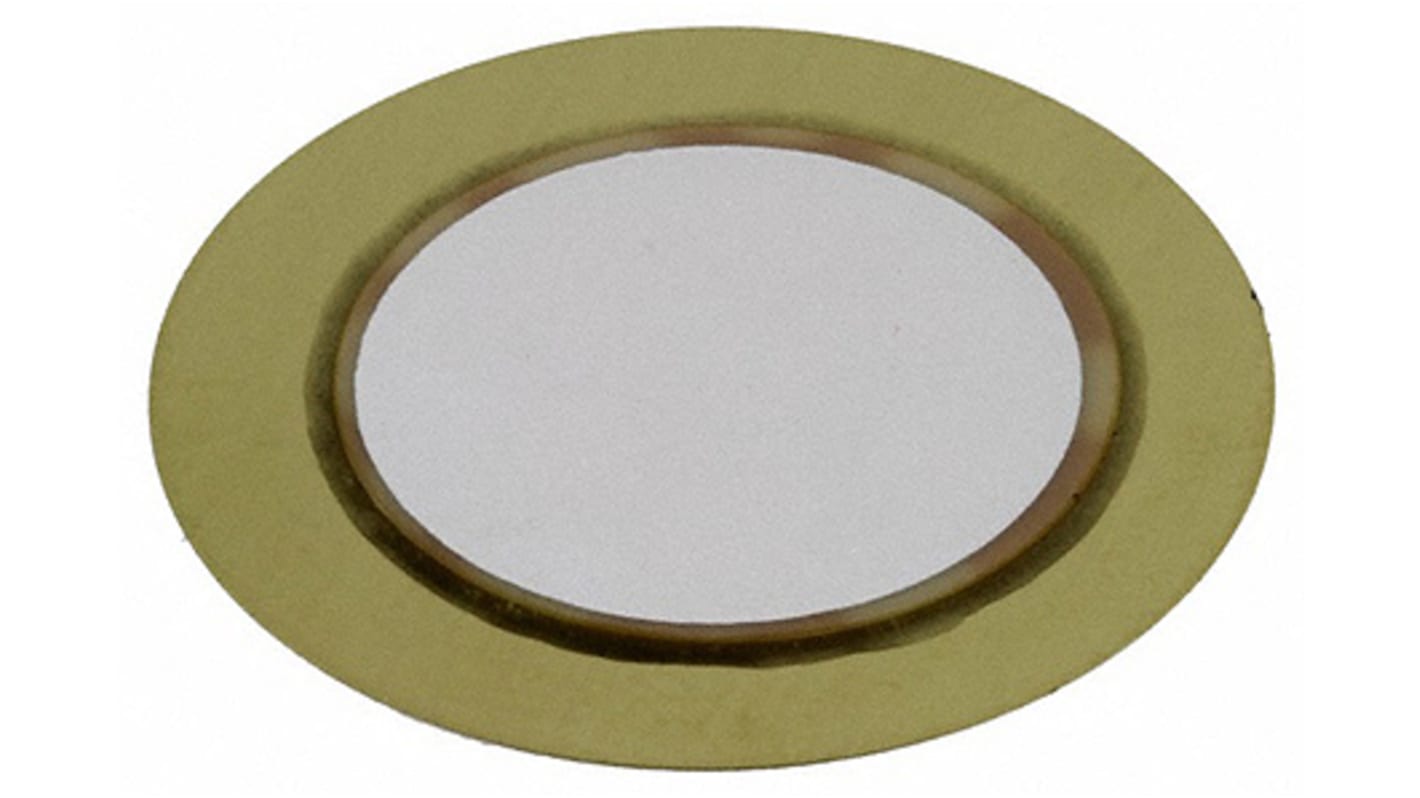

This image is representative of the product range
Subtotal (1 bag of 3000 units)*
MYR3,834.00
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Bag* |
|---|---|---|
| 3000 + | MYR1.278 | MYR3,834.00 |
*price indicative
- RS Stock No.:
- 166-9823
- Mfr. Part No.:
- 7BB-20-3
- Manufacturer:
- Murata
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Piezoelectric Diaphragm | |
| Mount Type | Surface Mount | |
| Drive Type | External | |
| Tone Type | Diaphragm | |
| Diameter | 20mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | RoHS | |
| Height | 0.22mm | |
| Maximum Frequency | 3.6kHz | |
| Minimum Frequency | 3.6kHz | |
| Capacitance | 20nF | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Piezoelectric Diaphragm | ||
Mount Type Surface Mount | ||
Drive Type External | ||
Tone Type Diaphragm | ||
Diameter 20mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals RoHS | ||
Height 0.22mm | ||
Maximum Frequency 3.6kHz | ||
Minimum Frequency 3.6kHz | ||
Capacitance 20nF | ||
- COO (Country of Origin):
- JP
Murata 7BB Piezoelectric Diaphragms
This range of piezoelectric transducers from Murata are available with various resonance frequencies and impedance values. With an external drive, these piezoelectric transducers have no contacts, and are highly reliable with no noise. 7BB piezoelectric diaphragms are compact, lightweight and thin. For the voltage type, this series features low power consumption.
Product Application Information
Suitable for consumer and industrial use, recommended applications include digital cameras, burglar alarms, clocks and calculators.
