PUI Audio 100 dB Through Hole Continuous Internal 23.8 mm Piezo Buzzer Component 23.8 mm 3 V dc Min 20V dc Max
- RS Stock No.:
- 276-729
- Mfr. Part No.:
- AI-2429-TWT-R
- Manufacturer:
- PUI Audio

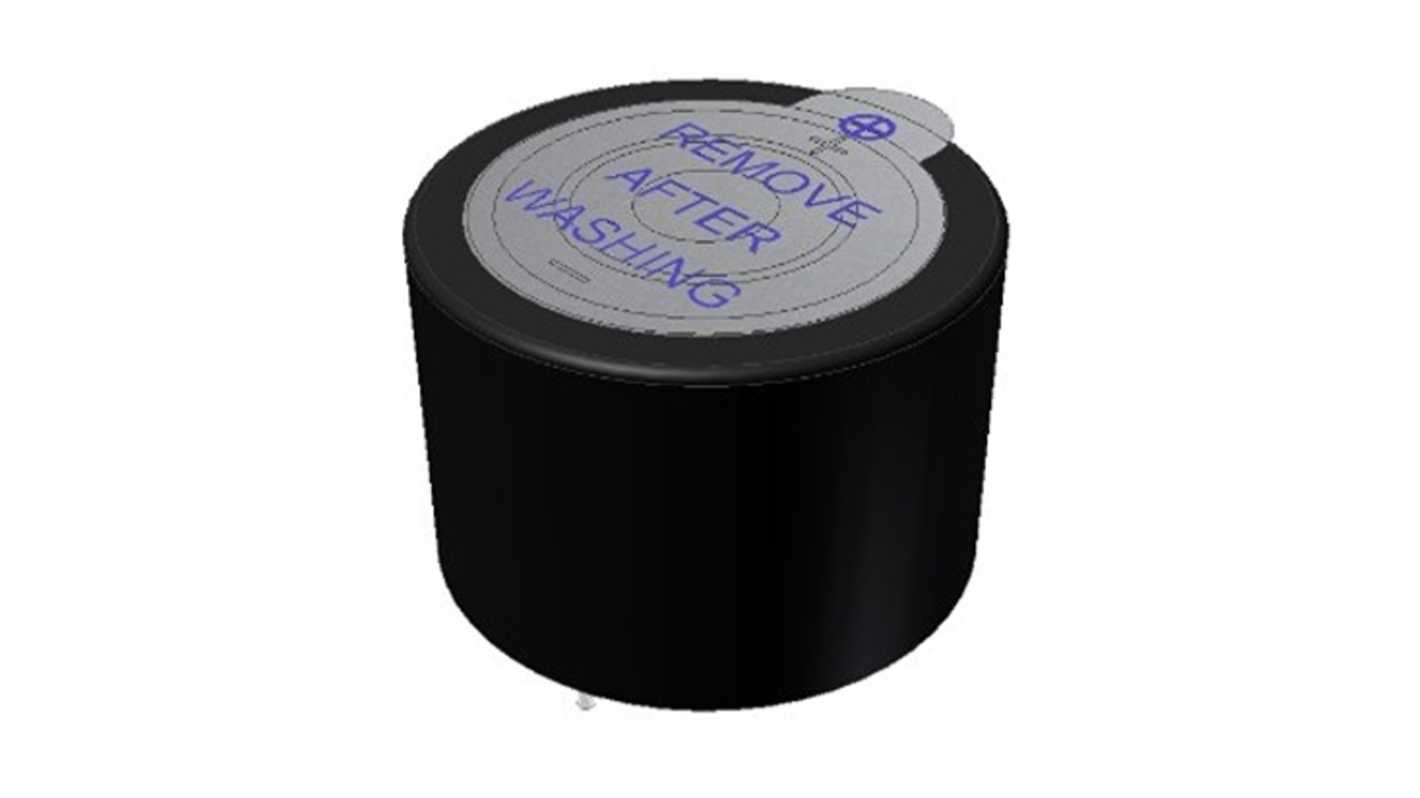

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR18.49
FREE delivery for orders over RM 500.00
In Stock
- Plus 16 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR18.49 |
| 10 - 99 | MYR16.62 |
| 100 - 499 | MYR15.33 |
| 500 - 999 | MYR14.23 |
| 1000 + | MYR11.58 |
*price indicative
- RS Stock No.:
- 276-729
- Mfr. Part No.:
- AI-2429-TWT-R
- Manufacturer:
- PUI Audio
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 20V dc | |
| Sound Level | 100dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 22mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 23.8mm | |
| Standards/Approvals | RoHS, REACH Ex. 7c-1 | |
| Termination Style | Tin Plated Red Copper(DSn) | |
| Height | 23.8mm | |
| Length | 23.8mm | |
| Maximum Frequency | 3400Hz | |
| Supply Current | 10mA | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Product Type Piezo Buzzer Component | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 20V dc | ||
Sound Level 100dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 22mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Depth 23.8mm | ||
Standards/Approvals RoHS, REACH Ex. 7c-1 | ||
Termination Style Tin Plated Red Copper(DSn) | ||
Height 23.8mm | ||
Length 23.8mm | ||
Maximum Frequency 3400Hz | ||
Supply Current 10mA | ||
- COO (Country of Origin):
- CN
PUI Audio Piezo Buzzer Component, 23.8mm Diameter, 100dB Sound Level - AI-2429-TWT-R
This piezo buzzer component provides an audible continuous tone for signalling and alert systems in industrial and electronic assemblies. It is a Compact through-hole device designed to operate across a wide supply range and is suited to equipment that requires a high-decibel acoustic output from a small footprint.
Features and Benefits:
• 100dB sound level delivers loud audible alerts for noisy environments
• 3V to 20V supply range enables flexible integration with varied control voltages
• 9mA supply current minimises power draw for low-power systems
• 3400Hz maximum frequency produces a clear continuous tone for quick recognition
• Internal drive reduces external circuitry complexity and assembly time
• Tin-plated termination ensures secure solder joints and corrosion resistance
• 3V to 20V supply range enables flexible integration with varied control voltages
• 9mA supply current minimises power draw for low-power systems
• 3400Hz maximum frequency produces a clear continuous tone for quick recognition
• Internal drive reduces external circuitry complexity and assembly time
• Tin-plated termination ensures secure solder joints and corrosion resistance
Applications
• Suitable for industrial automation alarms on control panels
• Ideal for fault indication in electrical switchgear assemblies
• Used for status alerts in mechanical machinery enclosures
• Can be used for bespoke electronics requiring Compact signalling
• Used with low-power controllers that demand minimal current draw
• Ideal for fault indication in electrical switchgear assemblies
• Used for status alerts in mechanical machinery enclosures
• Can be used for bespoke electronics requiring Compact signalling
• Used with low-power controllers that demand minimal current draw
What mounting method is used for secure PCB attachment?
The device uses through-hole mounting to provide mechanically robust attachment and reliable solder connections.
How does the component cope with ambient temperature variation?
It is specified to operate across an ambient range from -20°C to 60°C enabling use in temperate industrial settings.
What tone behaviour should be expected during operation?
The unit produces a continuous tone rather than intermittent beeps, suitable for steady alarm conditions.
Which materials are present at the terminations for solderability?
The terminations are finished with tin-plated red copper to aid solderability and maintain electrical contact.
Are there regulatory substance considerations affecting procurement?
The part conforms to RoHS and REACH Ex.7c-1 requirements regarding restricted substances.
