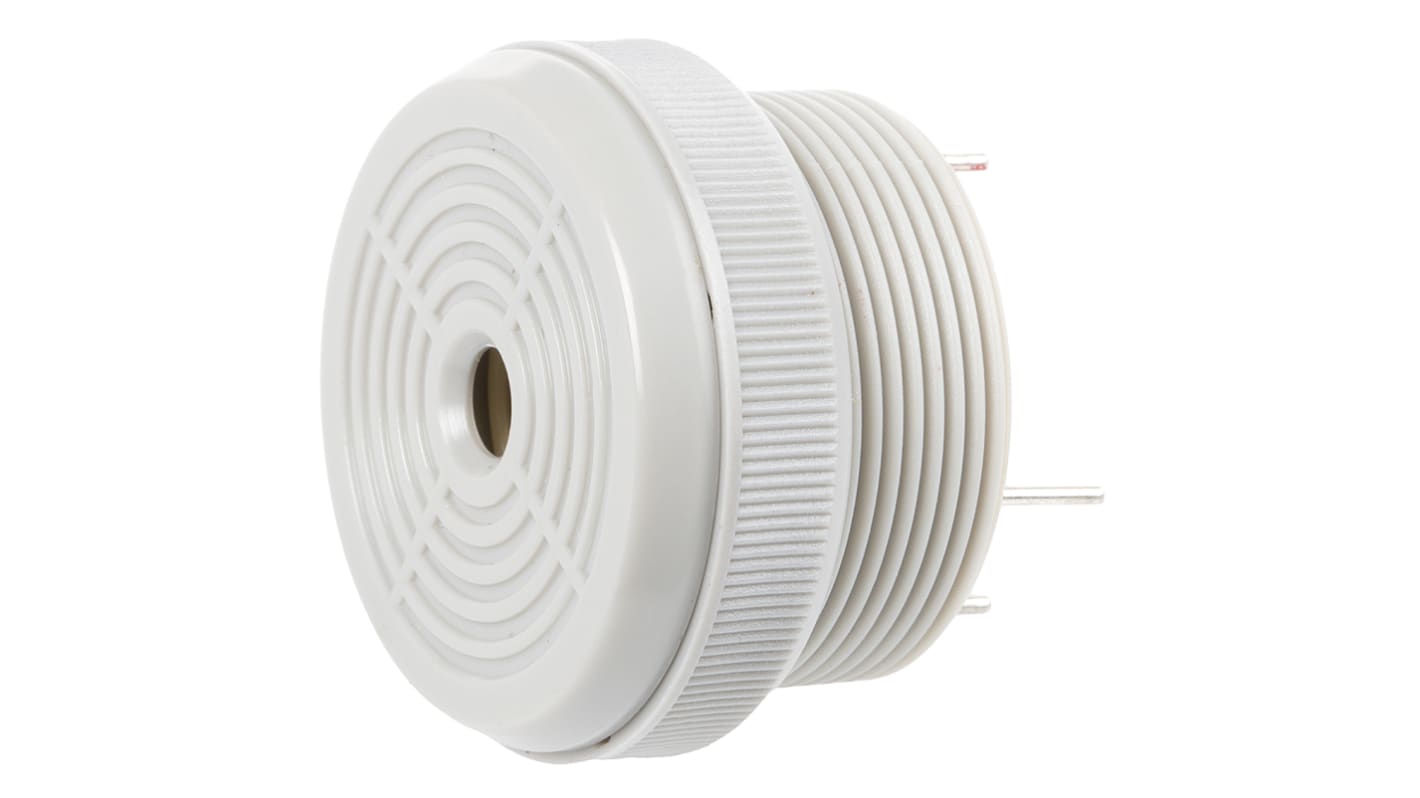

RS PRO 92dB Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer, 35.5 (Dia.) x 23.5mm, 6V dc Min, 28V dc Max
- RS Stock No.:
- 237-962
- Manufacturer:
- RS PRO
34 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR91.81
Units | Per Unit |
1 - 9 | MYR91.81 |
10 - 49 | MYR89.89 |
50 + | MYR73.99 |
- RS Stock No.:
- 237-962
- Manufacturer:
- RS PRO
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- TW
Product Details
RS PRO 92 dB, Panel Mounting Continuous, Fast Pulse Internal Piezo Buzzer
Need to install an audible signalling device where space is tight? This RS PRO piezo buzzer is compact and made from lightweight plastic, so it's easy to fit on your control panel. It produces a continuous, fast-pulsing sound at 92 decibels (dB), so it's suitable for use as an alarm or sounder.
This buzzer comes with three pins ready for installing on a PCB (printed circuit board). It has DC (direct current) circuitry, so it's compatible with a wide range of low voltage electrical appliances.
Piezo buzzers are found in devices such as domestic and commercial smoke alarms and theft deterrents. This component has been thoroughly tested for quality and meets American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic control standards.
This buzzer comes with three pins ready for installing on a PCB (printed circuit board). It has DC (direct current) circuitry, so it's compatible with a wide range of low voltage electrical appliances.
Piezo buzzers are found in devices such as domestic and commercial smoke alarms and theft deterrents. This component has been thoroughly tested for quality and meets American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic control standards.
Features and Benefits
Dimensions of 35.5 (diameter) x 23.5 mm (height)
Internal drive type
Frequency range of 3.1 kHz (kilohertz) to 4.1 kHz
Operating temperature range of -30°C to +85°C
Supply voltage range of 6 V (volts) DC to 28 V DC
Panel mounting
Sound level of 92 dB (decibels)
Supply current of 13 mA (milliampere)
Continuous, fast pulse tone type
Internal drive type
Frequency range of 3.1 kHz (kilohertz) to 4.1 kHz
Operating temperature range of -30°C to +85°C
Supply voltage range of 6 V (volts) DC to 28 V DC
Panel mounting
Sound level of 92 dB (decibels)
Supply current of 13 mA (milliampere)
Continuous, fast pulse tone type
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Mounting Type | Panel Mount |
Minimum Supply Voltage | 6V dc |
Maximum Supply Voltage | 28V dc |
Sound Level | 92dB |
Drive Type | Internal |
Tone Type | Continuous, Fast Pulse |
Diameter | 35.5mm |
Height | 23.5mm |
Dimensions | 35.5 (Dia.) x 23.5mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +85°C |
Maximum Frequency | 4.1kHz |
Supply Current | 13mA |
Minimum Frequency | 3100Hz |
