MPN

Myrra 9 V 5 Output PCB PCB Transformer, VDC, UL, ENEC, CE, RoHS 10 W

RS Stock No.:: 183-8324
Mfr. Part No.:: 47211
Manufacturer:: Myrra

Myrra 9 V 5 Output PCB PCB Transformer, VDC, UL, ENEC, CE, RoHS 10 W

Bulk discount available

Subtotal (1 unit)*

MYR62.42

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 02 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR62.42
5 - 9	MYR61.12
10 - 19	MYR59.28
20 - 49	MYR57.83
50 +	MYR56.57

*price indicative

RS Stock No.:: 183-8324
Mfr. Part No.:: 47211
Manufacturer:: Myrra

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Myrra
	Secondary Voltage	9 V
	Product Type	PCB Transformer
	Primary Voltage	340 V dc, 240 V ac
	Number of Outputs	5
	Length	48mm
	Width	40 mm
	Power	10W
	Depth	26mm
	Weight	80.2g
	Mount Type	PCB
	PCB Transformer Current	1.1A
	Minimum Operating Temperature	-25°C
	Efficiency	80%
	Maximum Operating Temperature	60°C
	Minimum Operating Frequency	47Hz
	Series	10W
	Standards/Approvals	VDC, UL, ENEC, CE, RoHS
	Maximum Operating Frequency	63Hz

	Select all
	Brand Myrra
	Secondary Voltage 9 V
	Product Type PCB Transformer
	Primary Voltage 340 V dc, 240 V ac
	Number of Outputs 5
	Length 48mm
	Width 40 mm
	Power 10W
	Depth 26mm
	Weight 80.2g
	Mount Type PCB
	PCB Transformer Current 1.1A
	Minimum Operating Temperature -25°C
	Efficiency 80%
	Maximum Operating Temperature 60°C
	Minimum Operating Frequency 47Hz
	Series 10W
	Standards/Approvals VDC, UL, ENEC, CE, RoHS
	Maximum Operating Frequency 63Hz

10W AC/DC DC/DC Transformer Datasheet

COO (Country of Origin):: CN

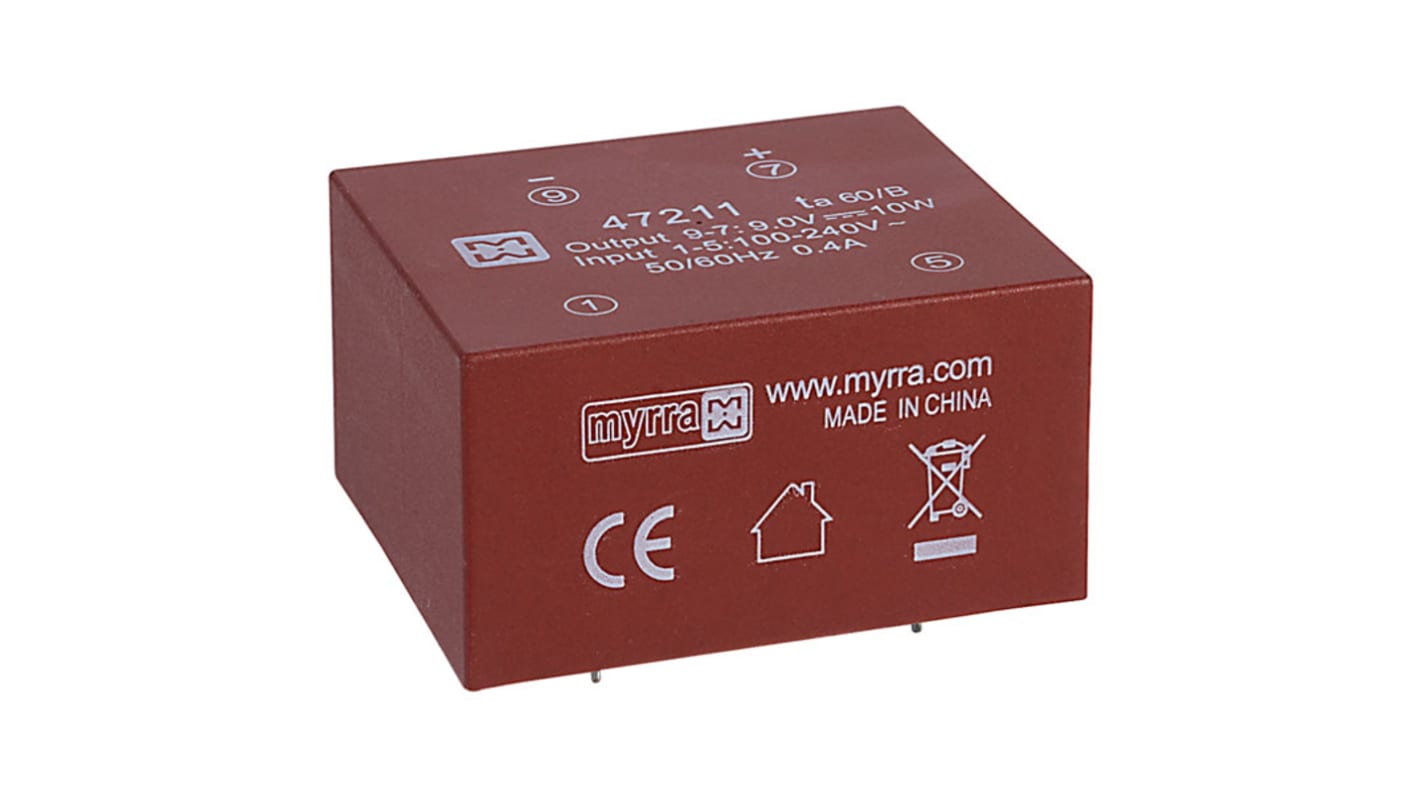

The Myrra PCB Transformer has voltage rating of 9V dc, 10W of power rating and PCB mounting type.

Operating Temperature: -25°C to +60°C

Myrra 9 V 5 Output PCB PCB Transformer, VDC, UL, ENEC, CE, RoHS 10 W
