Molex STANDARD 0.093 in Series Straight Through Hole PCB Header, 4 Contact(s), 6.71 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 670-0286
- Mfr. Part No.:
- 15-31-1046
- Manufacturer:
- Molex

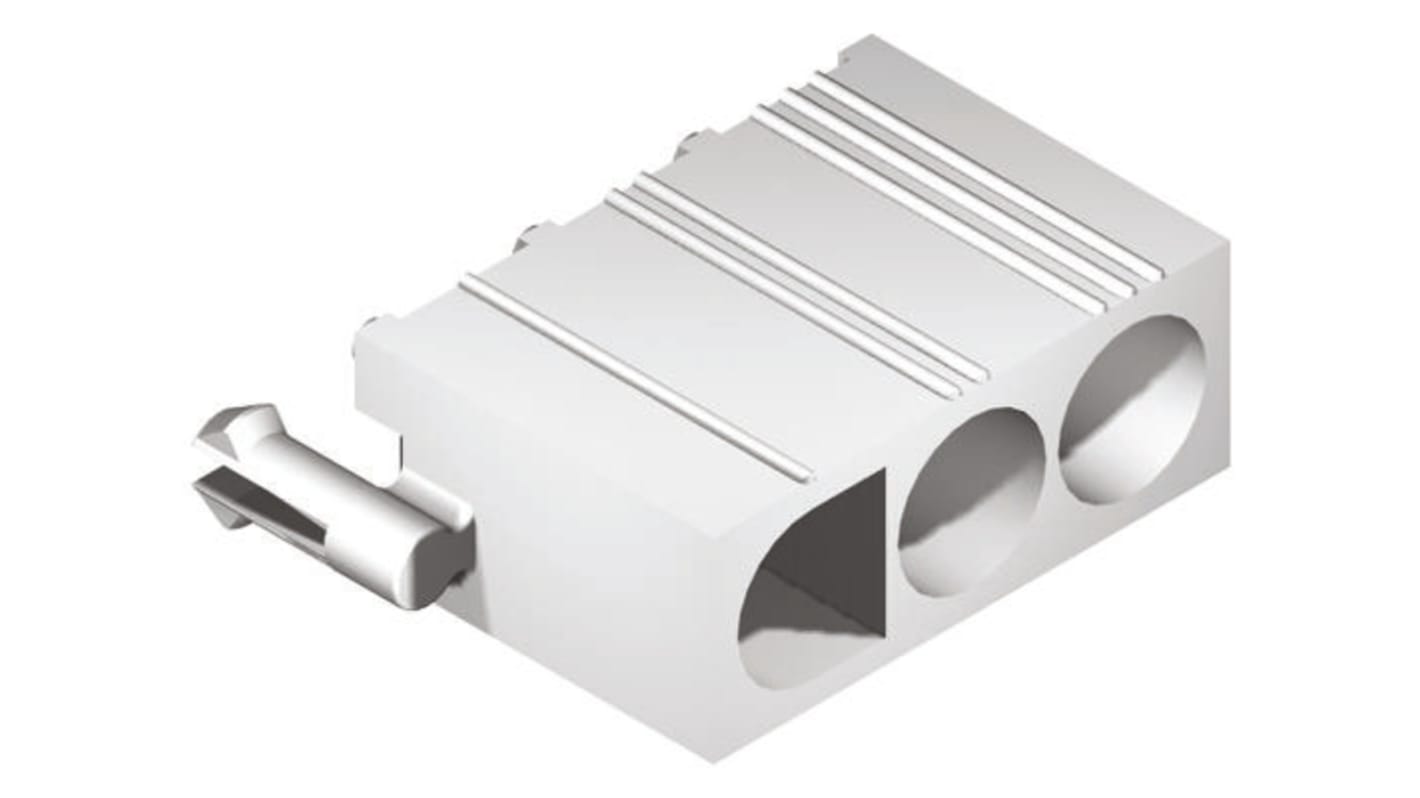

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
MYR69.35
FREE delivery for orders over RM 500.00
Last RS stock
- Final 180 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 190 | MYR6.935 | MYR69.35 |
| 200 - 740 | MYR6.727 | MYR67.27 |
| 750 - 2990 | MYR6.519 | MYR65.19 |
| 3000 - 5990 | MYR6.38 | MYR63.80 |
| 6000 + | MYR6.241 | MYR62.41 |
*price indicative
- RS Stock No.:
- 670-0286
- Mfr. Part No.:
- 15-31-1046
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | STANDARD 0.093 in | |
| Current | 9A | |
| Pitch | 6.71mm | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Row Pitch | 6.7mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Voltage | 600 V | |
| Distrelec Product Id | 304-57-016 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series STANDARD 0.093 in | ||
Current 9A | ||
Pitch 6.71mm | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Row Pitch 6.7mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Voltage 600 V | ||
Distrelec Product Id 304-57-016 | ||
Headers, 5219 Series
Mates with 3191 receptacles
Molex 2.36mm Diameter Standard .093" Pin and Socket Range
