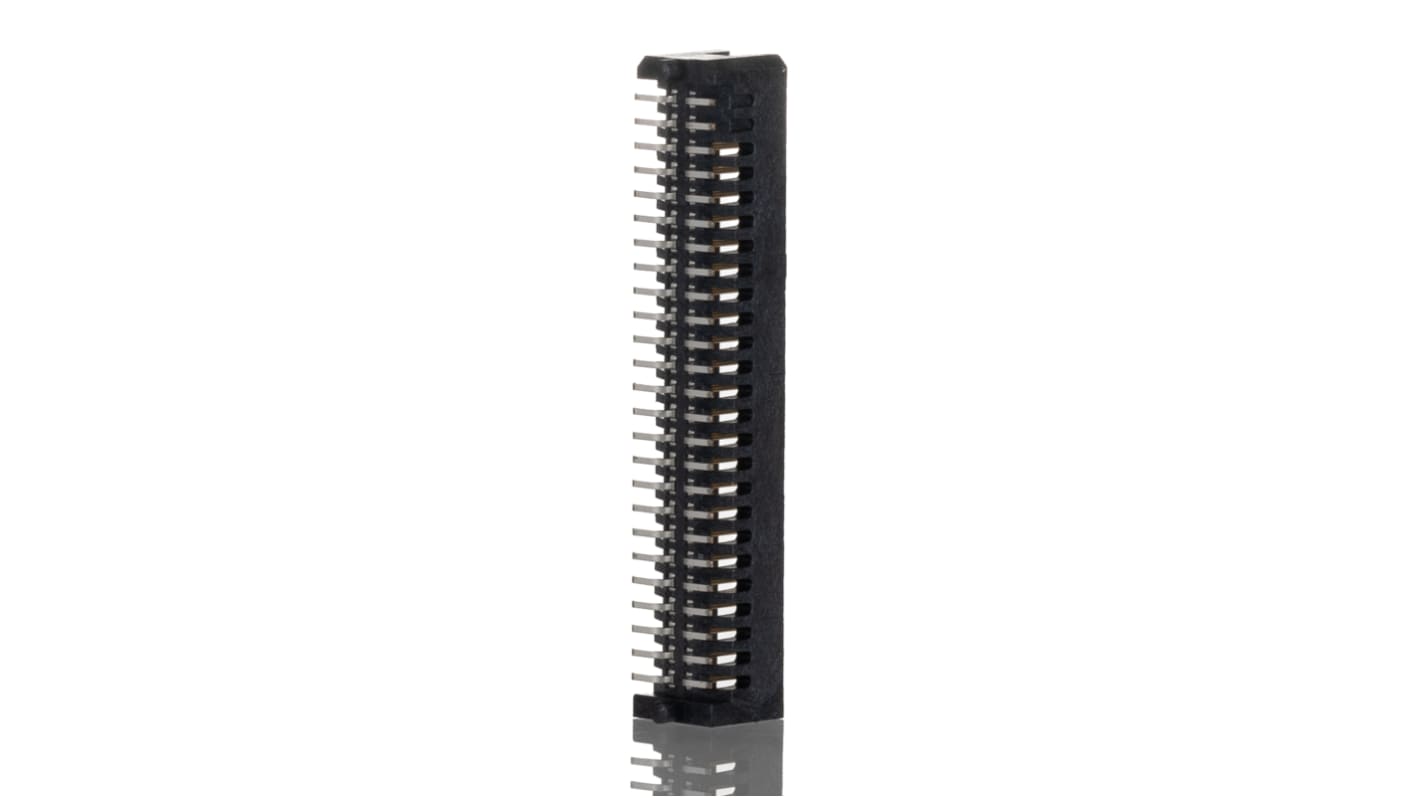

Samtec TFM Series Straight Surface PCB Header, 50 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded

RS Stock No.:: 481-4689
Mfr. Part No.:: TFM-125-02-S-D-A
Manufacturer:: Samtec

Samtec TFM Series Straight Surface PCB Header, 50 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded

Bulk discount available

Subtotal (1 pack of 5 units)*

MYR195.46

FREE delivery for orders over RM 500.00

In Stock

20 unit(s) ready to ship from another location
Plus 500 unit(s) shipping from 25 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
5 - 95	MYR39.092	MYR195.46
100 - 370	MYR37.918	MYR189.59
375 - 1495	MYR36.746	MYR183.73
1500 - 2995	MYR35.962	MYR179.81
3000 +	MYR35.18	MYR175.90

*price indicative

RS Stock No.:: 481-4689
Mfr. Part No.:: TFM-125-02-S-D-A
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Series	TFM
	Product Type	PCB Header
	Current	3.7A
	Pitch	1.27mm
	Number of Contacts	50
	Housing Material	Liquid Crystal Polymer
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Board-to-Board, Wire-to-Board
	Mount Type	Surface
	Contact Plating	Gold
	Contact Material	Phosphor Bronze
	Minimum Operating Temperature	-55°C
	Row Pitch	1.27mm
	Termination Type	Solder
	Contact Gender	Male
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Voltage	275 V

	Select all
	Brand Samtec
	Series TFM
	Product Type PCB Header
	Current 3.7A
	Pitch 1.27mm
	Number of Contacts 50
	Housing Material Liquid Crystal Polymer
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Board-to-Board, Wire-to-Board
	Mount Type Surface
	Contact Plating Gold
	Contact Material Phosphor Bronze
	Minimum Operating Temperature -55°C
	Row Pitch 1.27mm
	Termination Type Solder
	Contact Gender Male
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Voltage 275 V

Samtec TFM Series PCB Header, 2A Current Rating, Surface Mount - TFM-125-02-S-D-A

This Samtec PCB header offers a surface mount solution with a straight body orientation, ideal for various electronic applications. With a pitch of 1.27 mm, this header provides reliable connections for high-current requirements.

Features & Benefits

• Designed for surface mount requirements

• Straight body orientation for easy PCB integration

• Features a pitch of 1.27 mm, ensuring precise connections

• Gold-plated contacts for enhanced conductivity

• Suitable for board to board and wire to board connectors

• Shrouded design for blind mating capabilities

Applications

• Ideal for board to board connector applications

• Suitable for wire to board connections

• Used in high-current PCB requirements

Can it handle high-current applications?

Yes, the Samtec PCB header is designed to handle high-current requirements.

Is it suitable for surface mount PCBs?

Yes, this PCB header is ideal for surface mount applications.

Will it work for both board to board and wire to board connections?

Yes, this header is versatile and can be used for both types of connections.
