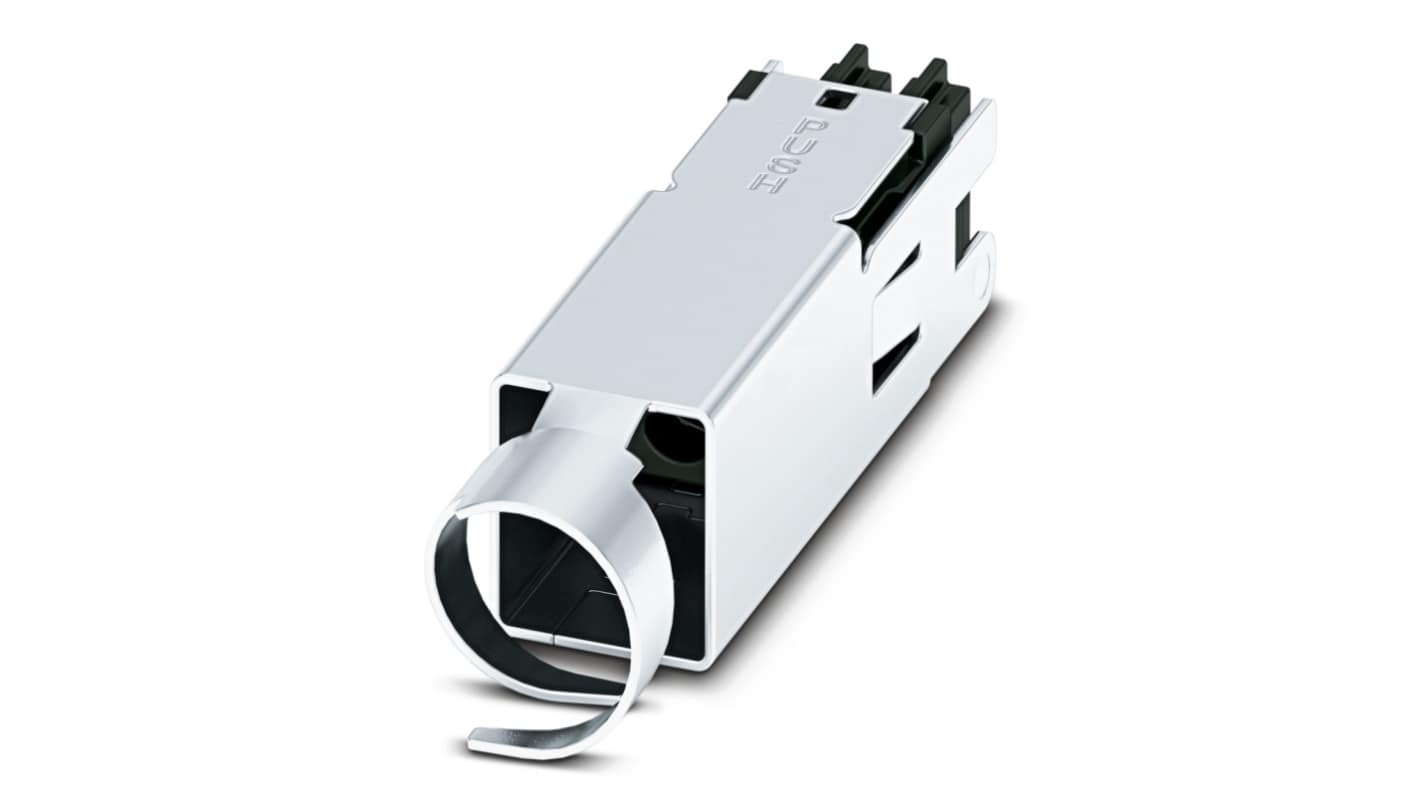

Phoenix Contact DMCC Series Straight Printed Circuit Board Connector, 4 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 240-1147
- Mfr. Part No.:
- 1150807
- Manufacturer:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 100 units)*
MYR1,250.40
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 400 | MYR12.504 | MYR1,250.40 |
| 500 + | MYR11.254 | MYR1,125.40 |
*price indicative
- RS Stock No.:
- 240-1147
- Mfr. Part No.:
- 1150807
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DMCC | |
| Product Type | Printed Circuit Board Connector | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Housing Material | Polyamide | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | 5 Lock, MICRO COMBICON DFMC 0, Shielded | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 80°C | |
| Contact Gender | Female | |
| Standards/Approvals | cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | |
| Mating Pin Length | 3mm | |
| Voltage | 160V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DMCC | ||
Product Type Printed Circuit Board Connector | ||
Pitch 2.54mm | ||
Current 6A | ||
Housing Material Polyamide | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System 5 Lock, MICRO COMBICON DFMC 0, Shielded | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 80°C | ||
Contact Gender Female | ||
Standards/Approvals cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | ||
Mating Pin Length 3mm | ||
Voltage 160V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB connector has contacts arranged in a double row enables the high packing density in a compact area and gold-plated contacts ensures the transfer quality remains stable over the long term.
Housing colour black (9005)
Insulating material PA
Contact material Cu alloy
Connection method Crimp connection
Stripping length 4.1 mm-4.5 mm
