Phoenix Contact FP 0.8/12-MV-SH Series Surface PCB Header, 12 Contact(s), 0.8 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 195-7462
- Mfr. Part No.:
- 1043786
- Manufacturer:
- Phoenix Contact

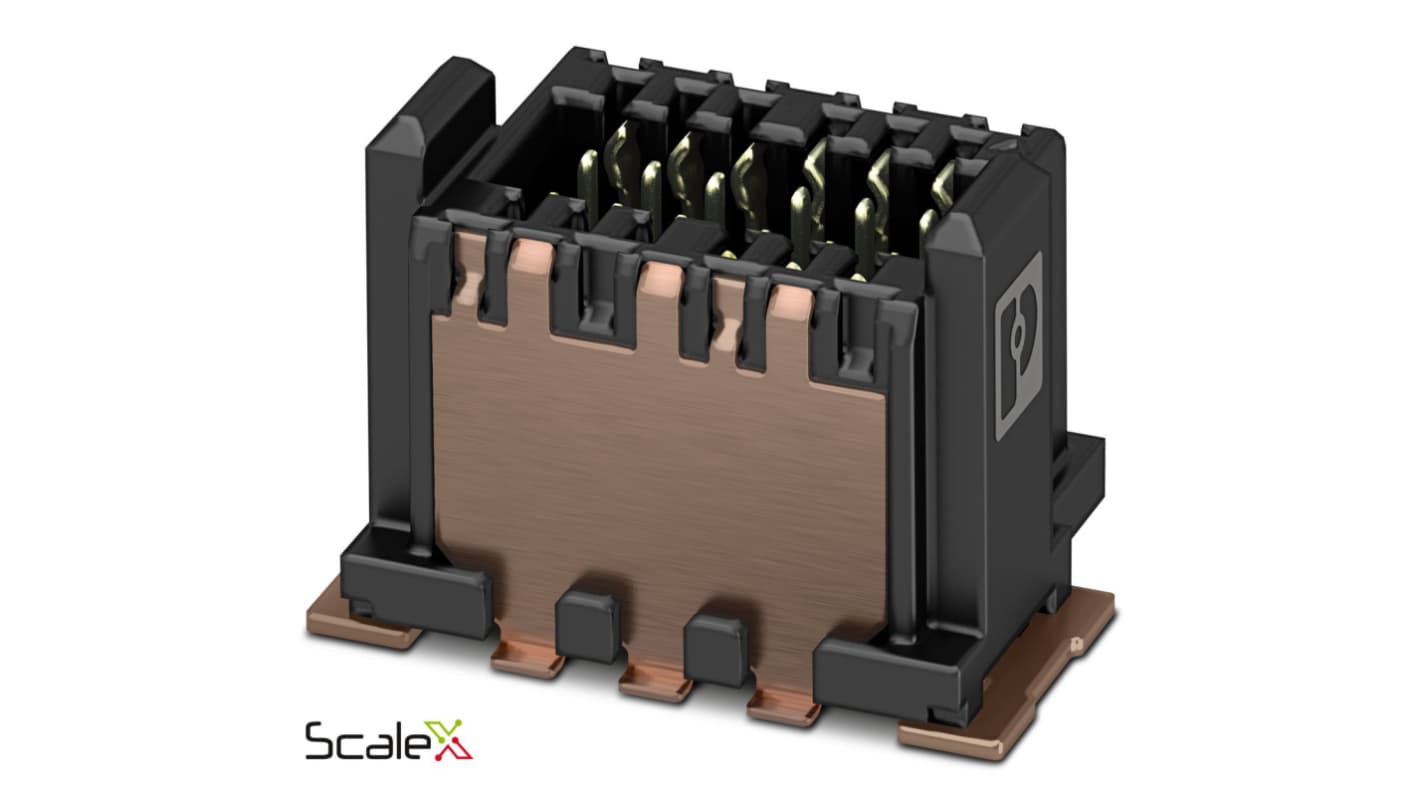

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR21.13
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 124 | MYR21.13 |
| 125 - 249 | MYR20.71 |
| 250 + | MYR20.09 |
*price indicative
- RS Stock No.:
- 195-7462
- Mfr. Part No.:
- 1043786
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | FP 0.8/12-MV-SH | |
| Product Type | PCB Header | |
| Current | 1.7A | |
| Pitch | 0.8mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold, Nickel | |
| Row Pitch | 0.8mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series FP 0.8/12-MV-SH | ||
Product Type PCB Header | ||
Current 1.7A | ||
Pitch 0.8mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold, Nickel | ||
Row Pitch 0.8mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 500 V | ||
- COO (Country of Origin):
- CN
Shielded SMD male connector, Nominal current at 20 °C: 1.7 A, Test voltage: 500 V AC, number of positions: 12, pitch: 0.8 mm, colour: black, contact surface: Gold, mounting: SMD soldering
