Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Series	AMP-LATCH
	Product Type	PCB Header
	Current	1A
	Pitch	2.54mm
	Number of Contacts	16
	Housing Material	Thermoplastic
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Wire-to-Board
	Mount Type	Through Hole
	Contact Material	Phosphor Bronze
	Contact Plating	Tin
	Termination Type	Solder
	Row Pitch	2.54mm
	Minimum Operating Temperature	-65°C
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Tail Pin Length	3.96mm
	Standards/Approvals	No
	Voltage	250 V

	Select all
	Brand TE Connectivity
	Series AMP-LATCH
	Product Type PCB Header
	Current 1A
	Pitch 2.54mm
	Number of Contacts 16
	Housing Material Thermoplastic
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Wire-to-Board
	Mount Type Through Hole
	Contact Material Phosphor Bronze
	Contact Plating Tin
	Termination Type Solder
	Row Pitch 2.54mm
	Minimum Operating Temperature -65°C
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Tail Pin Length 3.96mm
	Standards/Approvals No
	Voltage 250 V

Datasheet 1-746610-4

Ribbon Cable Connectors are wire-to-board devices used to make the transition between cable and pc board circuitry. They find heavy use within equipment to connect one board to another or one subsystem to another . The connectors are also used in input/output applications, connecting different pieces of equipment.

Mass termination capabilities

No need to strip or prepare wire

Labor savings

Applications

Computers/Electronics

Business Equipment

Medical Equipment

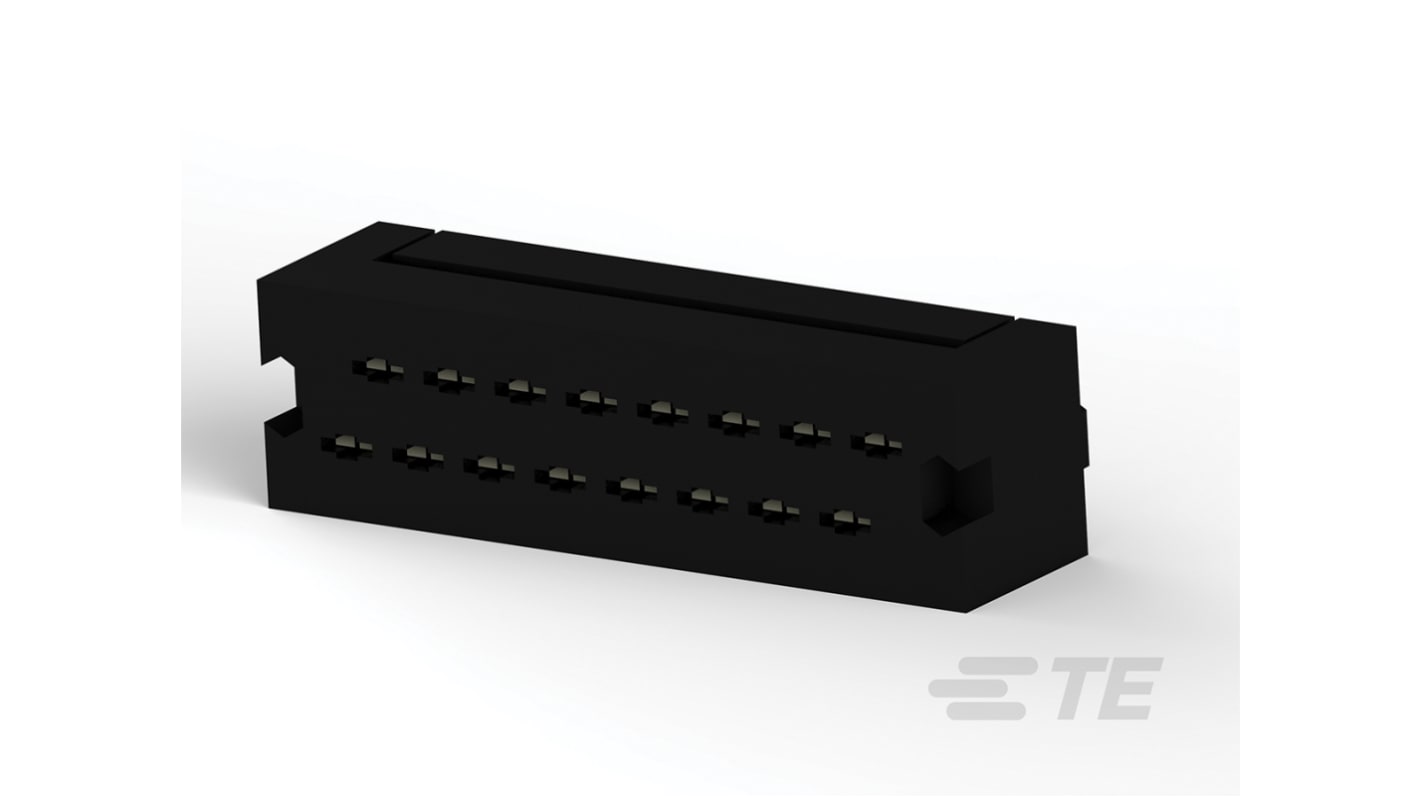

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
