Wurth Elektronik WR-MPC3 Series Straight Surface PCB Header, 2 Contact(s), 3 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 177-0005
- Mfr. Part No.:
- 662302131822
- Manufacturer:
- Wurth Elektronik

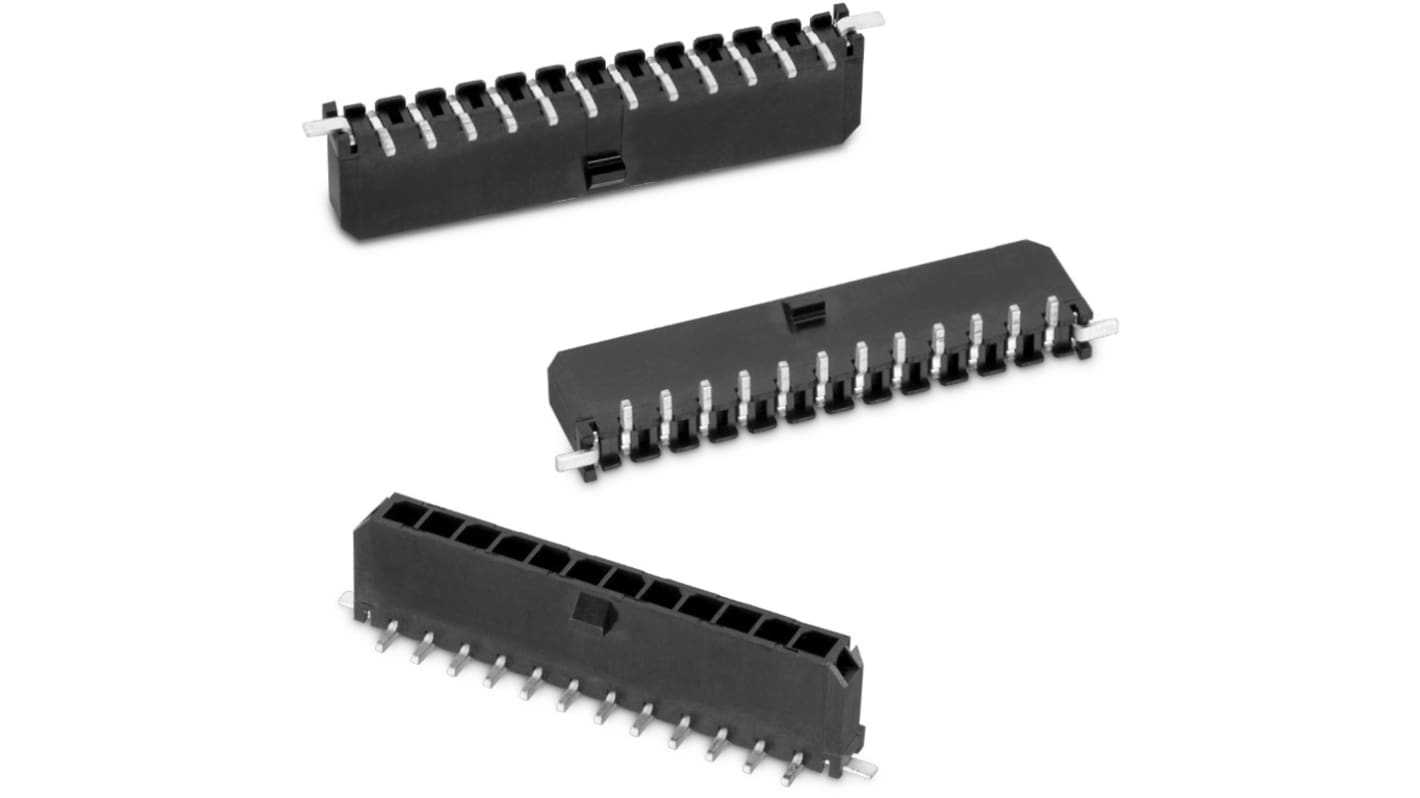

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
MYR13.44
FREE delivery for orders over RM 500.00
In Stock
- Plus 79 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 74 | MYR13.44 |
| 75 - 149 | MYR12.54 |
| 150 + | MYR11.35 |
*price indicative
- RS Stock No.:
- 177-0005
- Mfr. Part No.:
- 662302131822
- Manufacturer:
- Wurth Elektronik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Series | WR-MPC3 | |
| Product Type | PCB Header | |
| Pitch | 3mm | |
| Current | 5A | |
| Number of Contacts | 2 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Surface | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3mm | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Tail Pin Length | 2.26mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Voltage | 250V | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Series WR-MPC3 | ||
Product Type PCB Header | ||
Pitch 3mm | ||
Current 5A | ||
Number of Contacts 2 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Surface | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3mm | ||
Termination Type Solder | ||
Contact Gender Male | ||
Tail Pin Length 2.26mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Voltage 250V | ||
- COO (Country of Origin):
- TW
The Wurth Elektronic WR-MPC3 is a 3.00 mm pitch, SMT mount, male, single row vertical header with SMT solder tab. It has a 2 pins, working voltage of 250V AC and withstanding voltage of 1500V AC with contact resistance of 10 mΩ.
RoHS compliant
Operating temperature ranges between -40°C upto +105°C
25 mating cycle
Copper alloy contact material
