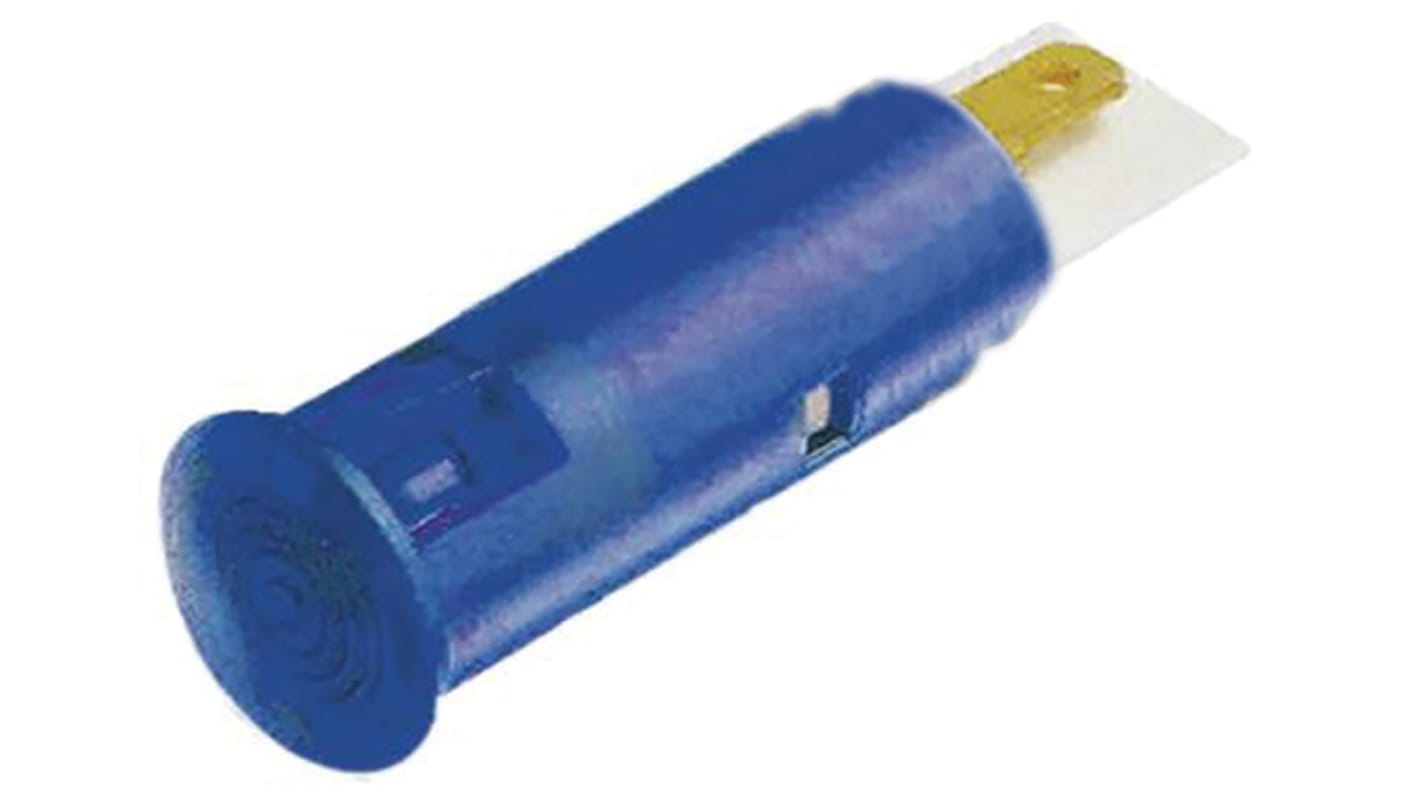

Signal Construct Blue Panel Mount Indicator, 24 → 28V, 6mm Mounting Hole Size, Solder Tab Termination
- RS Stock No.:
- 369-3352
- Mfr. Part No.:
- SKGD06404
- Manufacturer:
- Signal Construct
Bulk discount available
Subtotal (1 unit)*
MYR44.13
FREE delivery for orders over RM 500.00
In Stock
- 116 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR44.13 |
| 25 - 49 | MYR42.81 |
| 50 - 99 | MYR41.49 |
| 100 - 249 | MYR40.61 |
| 250 + | MYR39.73 |
*price indicative
- RS Stock No.:
- 369-3352
- Mfr. Part No.:
- SKGD06404
- Manufacturer:
- Signal Construct
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Signal Construct | |
| Voltage Rating | 24 → 28V | |
| Light Output Colour | Blue | |
| Mounting Hole Size | 6mm | |
| Lamp Type | LED | |
| Lamp Size | 3 mm | |
| Termination Type | Solder Tab | |
| Mounting Type | Panel Mount | |
| Bezel Style | Flush | |
| Current Rating | 10mA | |
| Length | 26.3mm | |
| Select all | ||
|---|---|---|
Brand Signal Construct | ||
Voltage Rating 24 → 28V | ||
Light Output Colour Blue | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
Termination Type Solder Tab | ||
Mounting Type Panel Mount | ||
Bezel Style Flush | ||
Current Rating 10mA | ||
Length 26.3mm | ||
- COO (Country of Origin):
- DE
LED Indicators, 6mm Mounting, 12 & 24Vdc
Snap-in fixing, requires no additional hardware
7mm coloured diffused low profile super-flat polycarbonate fresnel lens
Tri-colour contains a red and a green LED, when both are on yellow is produced
Solder lug connections
Tri-colour types have pins for connections (longest pin cathode)
7mm coloured diffused low profile super-flat polycarbonate fresnel lens
Tri-colour contains a red and a green LED, when both are on yellow is produced
Solder lug connections
Tri-colour types have pins for connections (longest pin cathode)
