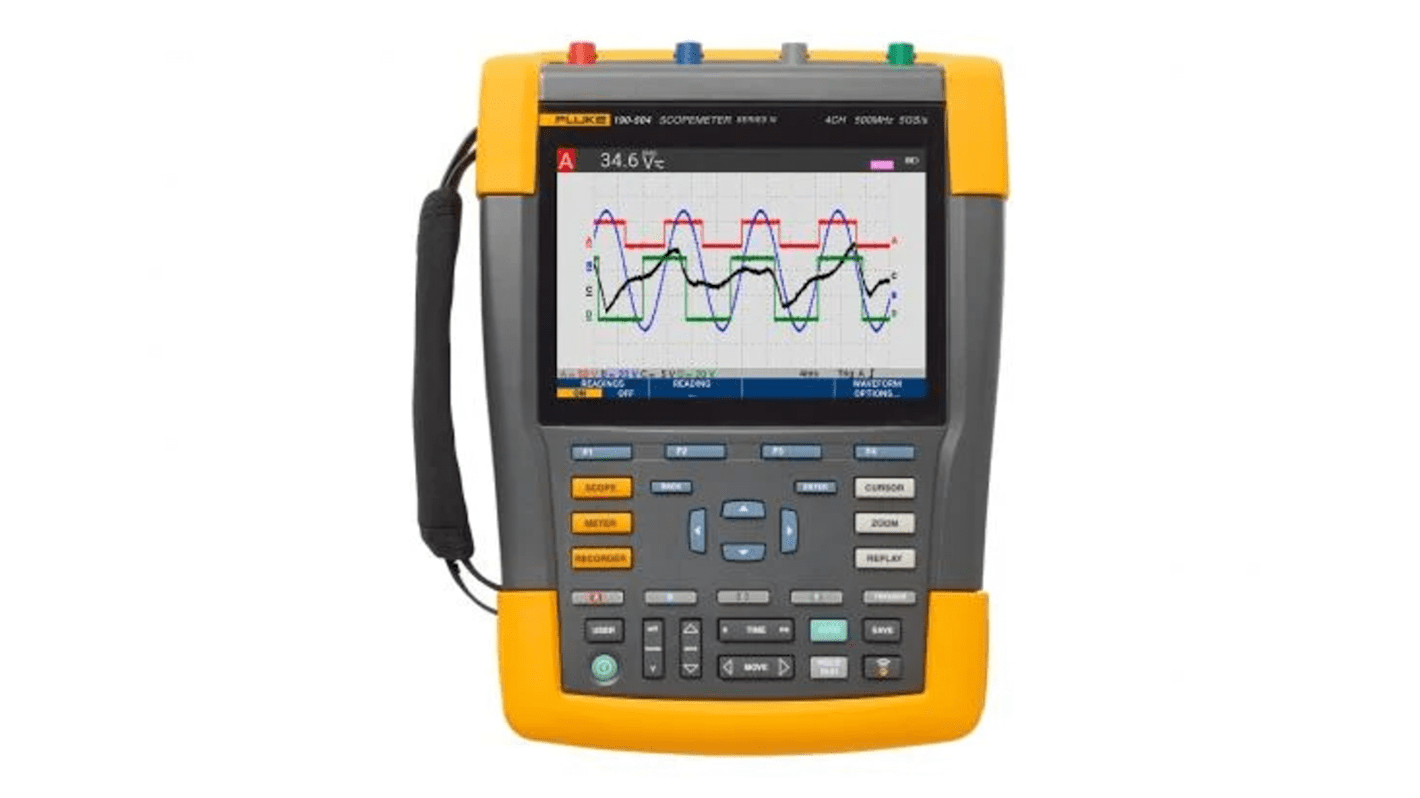

Fluke 190-502-III-S ScopeMeter III Series, 500MHz Portable Oscilloscope, 2 Analogue Channels
- RS Stock No.:
- 230-5656
- Mfr. Part No.:
- FLUKE-190-502-III-S
- Manufacturer:
- Fluke
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 230-5656
- Mfr. Part No.:
- FLUKE-190-502-III-S
- Manufacturer:
- Fluke
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Bandwidth | 500MHz | |
| Number of Analogue Channels | 2 | |
| Oscilloscope Type | Portable | |
| Oscilloscope Form | Digital Storage | |
| Interface | USB | |
| Sample Rate Random | 5 Gsps | |
| Screen Size | 133 x 90mm | |
| Series | ScopeMeter III | |
| Maximum Vertical Sensitivity | 10000V/div | |
| Battery Type | Li-ion | |
| Dimensions | 265 x 192 x 70mm | |
| Vertical Resolution | 8 bit | |
| Safety Category | CAT III 1000 V, CAT IV 600 V | |
| Rise Time | 0.7ns | |
| Display Type | Colour | |
| Height | 192mm | |
| Power Source | Battery | |
| Minimum Vertical Sensitivity | 20mV | |
| Length | 265mm | |
| Safety Category Voltage | 600 V, 1000 V | |
| Safety Category Level | CAT III, CAT IV | |
| Weight | 2.1kg | |
| Digital/Analogue | Digital | |
| Input Impedance | 1 MΩ | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Bandwidth 500MHz | ||
Number of Analogue Channels 2 | ||
Oscilloscope Type Portable | ||
Oscilloscope Form Digital Storage | ||
Interface USB | ||
Sample Rate Random 5 Gsps | ||
Screen Size 133 x 90mm | ||
Series ScopeMeter III | ||
Maximum Vertical Sensitivity 10000V/div | ||
Battery Type Li-ion | ||
Dimensions 265 x 192 x 70mm | ||
Vertical Resolution 8 bit | ||
Safety Category CAT III 1000 V, CAT IV 600 V | ||
Rise Time 0.7ns | ||
Display Type Colour | ||
Height 192mm | ||
Power Source Battery | ||
Minimum Vertical Sensitivity 20mV | ||
Length 265mm | ||
Safety Category Voltage 600 V, 1000 V | ||
Safety Category Level CAT III, CAT IV | ||
Weight 2.1kg | ||
Digital/Analogue Digital | ||
Input Impedance 1 MΩ | ||
- COO (Country of Origin):
- RO
FLUKE Oscilloscope, 0.7ns Rise Time, 5GS/s Maximum Sampling Rate - 190 Series - FLUKE-190-502-III-S
Want to take a look at your machinery's electrical features? Track performance with this FLUKE oscilloscope. It generates waveforms based on your setup's power connections, making it easy to get data on frequency and amplitude at any time. By managing two analogue channels at once, the unit monitors a pair of circuits to support efficient system inspection. Measuring electrical loads of different scales is no issue, thanks to the tool's isolated channels. A built-in multimeter function lets the oscilloscope run voltage, resistance and continuity testing in the same session to speed through spot-checks.
Features & Benefits
• Rise time of 0.7ns to quickly respond to signal changes
• IP51 rating indicates dust and drip protection, for use in harsh settings
• Voltage readings accurate to ±1.5% + 6 counts to provide reliably close measurements
• Keeps up to 10,000 readings per channel, producing a long record for easy review
• Supplied with power cord and battery pack for handy charging
• IP51 rating indicates dust and drip protection, for use in harsh settings
• Voltage readings accurate to ±1.5% + 6 counts to provide reliably close measurements
• Keeps up to 10,000 readings per channel, producing a long record for easy review
• Supplied with power cord and battery pack for handy charging
Applications
• Manufacturing industry
• HVAC systems
• Building surveying
• HVAC systems
• Building surveying
Can I use this device in wet environments?
The oscilloscope comes with a rugged carry case that shuts out moisture, keeping your kit dry and ready for work.
