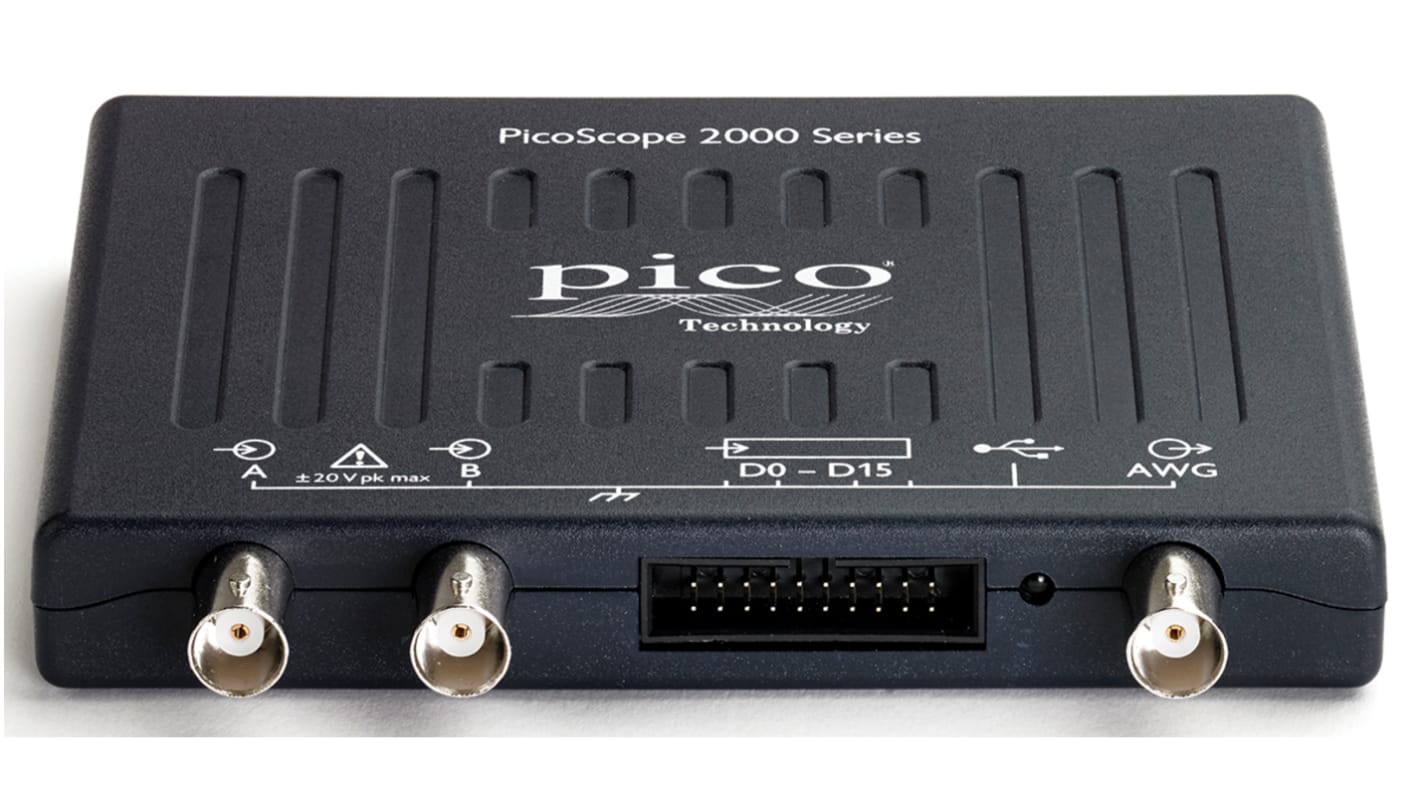

PicoScope 2000 Series, 50 MHz PC Based Oscilloscope 16-Channel

RS Stock No.:: 111-6768
Distrelec Article No.:: 300-73-908
Mfr. Part No.:: PicoScope 2206B MSO
Manufacturer:: Pico Technology

PicoScope 2000 Series, 50 MHz PC Based Oscilloscope 16-Channel

View all Oscilloscopes

Subtotal (1 unit)*

MYR3,196.50

FREE delivery for orders over RM 150.00

In Stock

3 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from 11 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR3,196.50

*price indicative

RS Stock No.:: 111-6768
Distrelec Article No.:: 300-73-908
Mfr. Part No.:: PicoScope 2206B MSO
Manufacturer:: Pico Technology

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	50MHz
	Number of Channels	16
	Model Number	PicoScope 2206B MSO
	Oscilloscope Type	PC Based
	Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
	Series	PicoScope 2000
	Height	18.8mm
	Width	104mm
	Standards/Approvals	No
	Length	130mm
	Rise Time	7ns
	Maximum Vertical Sensitivity	4V/div
	Power Source	USB
	Minimum Time Base	2ns/div
	Minimum Vertical Sensitivity	4mV/div
	Vertical Resolution	8 bit
	Maximum Time Base	5000s/div

	Select all
	Brand Pico Technology
	Product Type Oscilloscope
	Bandwidth 50MHz
	Number of Channels 16
	Model Number PicoScope 2206B MSO
	Oscilloscope Type PC Based
	Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB
	Series PicoScope 2000
	Height 18.8mm
	Width 104mm
	Standards/Approvals No
	Length 130mm
	Rise Time 7ns
	Maximum Vertical Sensitivity 4V/div
	Power Source USB
	Minimum Time Base 2ns/div
	Minimum Vertical Sensitivity 4mV/div
	Vertical Resolution 8 bit
	Maximum Time Base 5000s/div

COO (Country of Origin):: GB

PicoScope 2000 Series Oscilloscope, 50MHz Bandwidth, 18 Channels - PicoScope 2206B MSO

This oscilloscope is a Compact PC-connected instrument designed for mixed-signal diagnostics and waveform analysis. It operates from a USB power source and connects to host systems via common serial and bus interfaces, enabling capture of analogue and digital signals alongside serial protocol monitoring. Its intended use is measurement, troubleshooting and characterisation tasks where portable, USB-powered acquisition is required.

Features and Benefits:

• 50MHz bandwidth delivers clear analogue signal capture
• 7ns rise time enables fast edge detection
• 1ns/div minimum time base supports high-speed timing analysis
• 4mV/div sensitivity reveals low-amplitude signals
• 8-bit vertical resolution balances detail with data throughput

Applications

• Suitable for mixed-signal embedded system debugging
• Ideal for analysing serial buses such as CAN and I2C
• Used with microcontroller interfaces including SPI and UART
• Can be used for LIN and RS232 communication verification
• Suitable for portable field measurements with PC analysis

How is the instrument powered when connected to a computer?

It draws power directly from the USB connection so no external supply is required.

What range of interfaces can be monitored through the host connection?

The unit supports CAN, I2C, LIN, RS232, SPI and UART interfaces for protocol-level analysis.

What temporal resolution is available for inspecting fast events?

Timebase capability extends to 1ns/div allowing sub-nanosecond per-division timing resolution.

How many separate channels are available for concurrent signal capture?

There are eighteen channels enabling simultaneous acquisition of multiple analogue and digital signals.
