Toshiba TLP152 DC Input Optocoupler, Surface, 5-Pin SOIC
- RS Stock No.:
- 168-7806
- Mfr. Part No.:
- TLP152
- Manufacturer:
- Toshiba

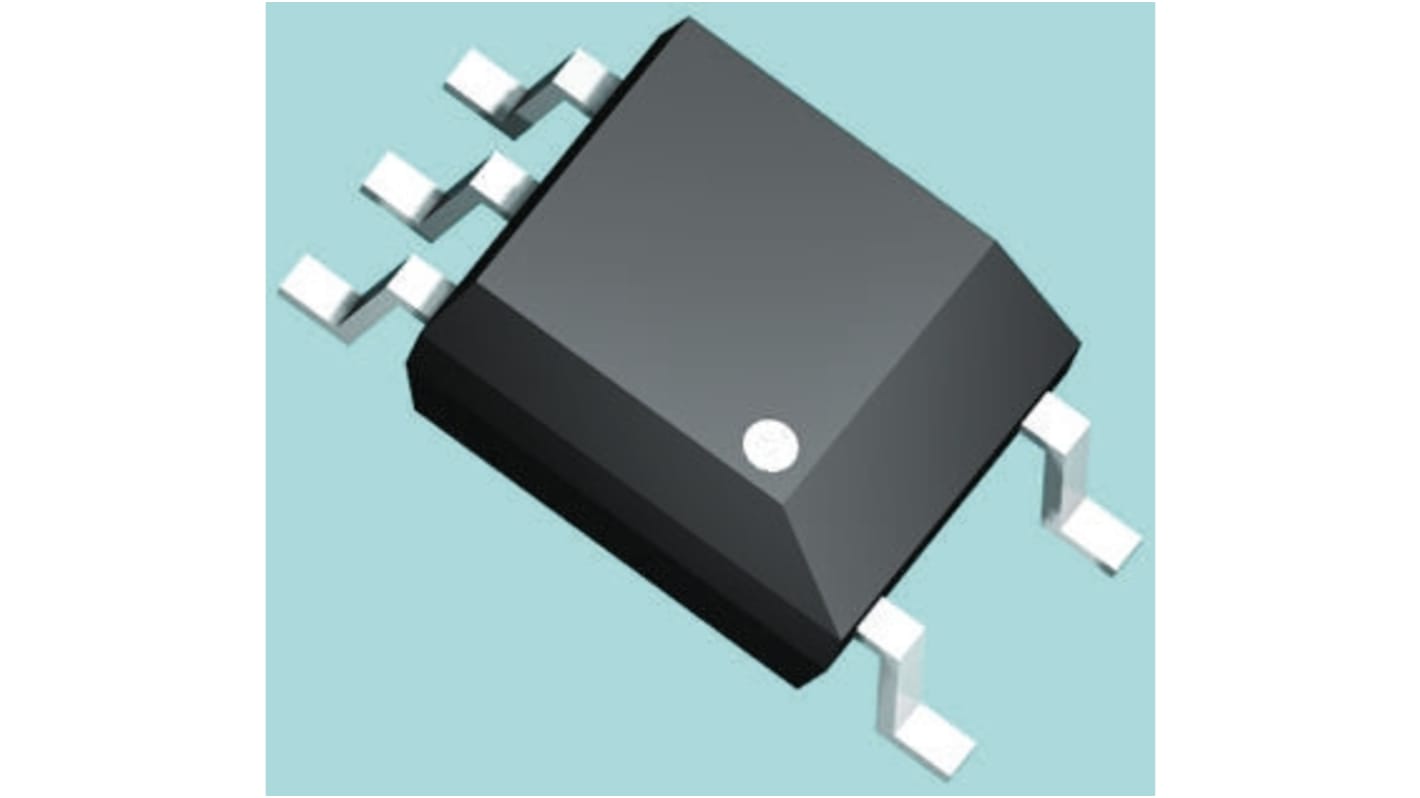

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 125 units)*
MYR515.13
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Tube* |
|---|---|---|
| 125 - 500 | MYR4.121 | MYR515.13 |
| 625 - 3000 | MYR3.997 | MYR499.63 |
| 3125 + | MYR3.598 | MYR449.75 |
*price indicative
- RS Stock No.:
- 168-7806
- Mfr. Part No.:
- TLP152
- Manufacturer:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.8V | |
| Number of Channels | 1 | |
| Number of Pins | 5 | |
| Package Type | SOIC | |
| Input Current Type | DC | |
| Typical Rise Time | 18ns | |
| Maximum Input Current | 15mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | UL | |
| Typical Fall Time | 22ns | |
| Series | TLP | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 1 | ||
Number of Pins 5 | ||
Package Type SOIC | ||
Input Current Type DC | ||
Typical Rise Time 18ns | ||
Maximum Input Current 15mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals UL | ||
Typical Fall Time 22ns | ||
Series TLP | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
Photocoupler, Buffer Logic Output (Totem-Pole), Toshiba
A range of Toshiba photocouplers featuring logic driven push-pull (“totem-pole”) outputs.
Optocouplers, Toshiba
