Midas 1.2 in Passive matrix White OLED Display 96 x 16 pixel TAB I2C
- RS Stock No.:
- 880-8584
- Mfr. Part No.:
- MCOT096016BY-WI
- Manufacturer:
- Midas

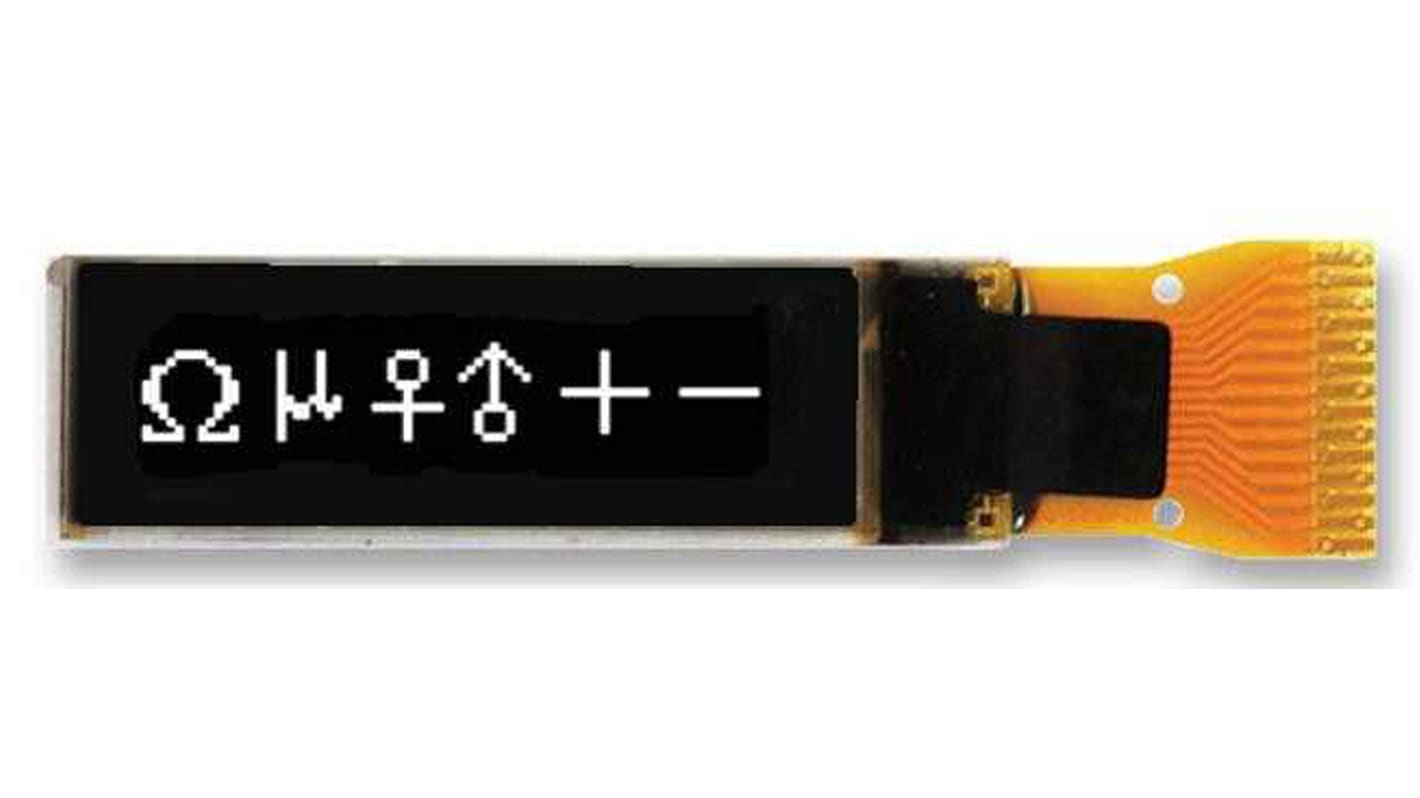

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR60.20
FREE delivery for orders over RM 500.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 29 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 12 | MYR60.20 |
| 13 - 24 | MYR58.93 |
| 25 + | MYR57.18 |
*price indicative
- RS Stock No.:
- 880-8584
- Mfr. Part No.:
- MCOT096016BY-WI
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 1.2in | |
| Product Type | OLED Display | |
| Viewing Area Dimensions | 21.1 x 3.5 mm | |
| Matrix Type | Passive | |
| Screen Resolution | 96 x 16 pixel | |
| Interface Type | I2C | |
| Contrast Ratio | 10000:1 | |
| Driver Mounting | TAB | |
| External Depth | 48.35mm | |
| External Height | 1.6mm | |
| External Width | 33.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Forward Voltage | 3.3V dc | |
| Forward Current | 7.5mA | |
| Series | Y | |
| Display Colour | White | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 1.2in | ||
Product Type OLED Display | ||
Viewing Area Dimensions 21.1 x 3.5 mm | ||
Matrix Type Passive | ||
Screen Resolution 96 x 16 pixel | ||
Interface Type I2C | ||
Contrast Ratio 10000:1 | ||
Driver Mounting TAB | ||
External Depth 48.35mm | ||
External Height 1.6mm | ||
External Width 33.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Forward Voltage 3.3V dc | ||
Forward Current 7.5mA | ||
Series Y | ||
Display Colour White | ||
- COO (Country of Origin):
- TW
Midas Graphic OLED Displays, TAB
A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.
Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)
Midas Graphic PMOLED Displays
Note
Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.
