MPN

Midas 1.28 in Passive matrix Yellow OLED Display 128 x 64 pixel COB

RS Stock No.:: 254-3587
Mfr. Part No.:: MDOB128064XV-YI
Manufacturer:: Midas

Midas 1.28 in Passive matrix Yellow OLED Display 128 x 64 pixel COB

Bulk discount available

Subtotal (1 unit)*

MYR73.87

FREE delivery for orders over RM 500.00

In Stock

Plus 108 unit(s) shipping from 02 March 2026
Plus 350 unit(s) shipping from 12 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR73.87
5 +	MYR67.62

*price indicative

RS Stock No.:: 254-3587
Mfr. Part No.:: MDOB128064XV-YI
Manufacturer:: Midas

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Midas
	Product Type	OLED Display
	Diagonal Display Size	1.28in
	Viewing Area Dimensions	29.42 x 14.20 mm
	Aspect Ratio	32:2.66
	Matrix Type	Passive
	Screen Resolution	128 x 64 pixel
	Contrast Ratio	2000:1
	Driver Mounting	COB
	External Depth	2.66mm
	Minimum Operating Temperature	-40°C
	External Height	2.66mm
	External Width	35.50mm
	Maximum Operating Temperature	80°C
	Standards/Approvals	No
	Display Colour	Yellow
	Forward Voltage	5.2V dc

	Select all
	Brand Midas
	Product Type OLED Display
	Diagonal Display Size 1.28in
	Viewing Area Dimensions 29.42 x 14.20 mm
	Aspect Ratio 32:2.66
	Matrix Type Passive
	Screen Resolution 128 x 64 pixel
	Contrast Ratio 2000:1
	Driver Mounting COB
	External Depth 2.66mm
	Minimum Operating Temperature -40°C
	External Height 2.66mm
	External Width 35.50mm
	Maximum Operating Temperature 80°C
	Standards/Approvals No
	Display Colour Yellow
	Forward Voltage 5.2V dc

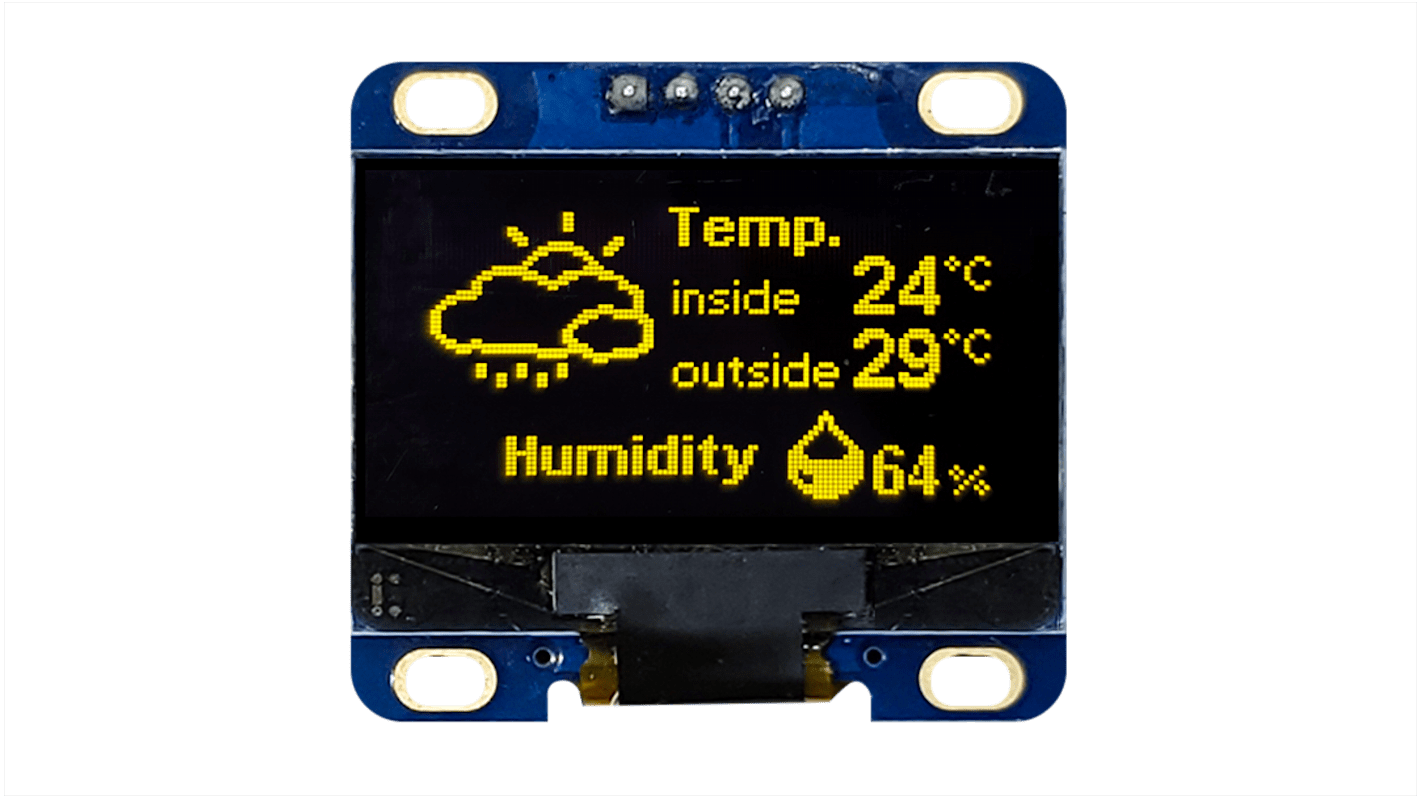

The Midas chip-on-board 128 x 64 resolution graphic OLED display has a yellow on black appearance. This display uses the SSD1306 controller.

4 pins

Operating temperature -40°C to +80°C

Midas 1.28 in Passive matrix Yellow OLED Display 128 x 64 pixel COB
