Midas 0.96in White Passive matrix OLED Display 128 x 64pixels COB I2C Interface
- RS Stock No.:
- 225-6204
- Mfr. Part No.:
- MDOB128064VV-WM
- Manufacturer:
- Midas
Bulk discount available
Subtotal (1 unit)*
MYR71.61
FREE delivery for orders over RM 500.00
In Stock
- Plus 28 unit(s) shipping from 08 December 2025
- Plus 104 unit(s) shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR71.61 |
| 5 - 9 | MYR69.61 |
| 10 + | MYR66.75 |
*price indicative
- RS Stock No.:
- 225-6204
- Mfr. Part No.:
- MDOB128064VV-WM
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 0.96in | |
| Viewing Area Dimensions | 21.74 x 10.86mm | |
| Matrix Type | Passive | |
| Display Colours | White | |
| Resolution | 128 x 64pixels | |
| Contrast Ratio | 2000:1 | |
| Driver Mounting | COB | |
| Interface Ports | I2C | |
| Dimensions | 38.00 x 28.50 x 2.37mm | |
| Depth | 2.37mm | |
| Height | 2.37mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Forward Voltage | 3.3 V dc | |
| Width | 38.00mm | |
| Viewing Area Width | 21.74mm | |
| Operating Temperature Range | -40 → +80°C | |
| Viewing Area Height | 10.86mm | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 0.96in | ||
Viewing Area Dimensions 21.74 x 10.86mm | ||
Matrix Type Passive | ||
Display Colours White | ||
Resolution 128 x 64pixels | ||
Contrast Ratio 2000:1 | ||
Driver Mounting COB | ||
Interface Ports I2C | ||
Dimensions 38.00 x 28.50 x 2.37mm | ||
Depth 2.37mm | ||
Height 2.37mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Forward Voltage 3.3 V dc | ||
Width 38.00mm | ||
Viewing Area Width 21.74mm | ||
Operating Temperature Range -40 → +80°C | ||
Viewing Area Height 10.86mm | ||

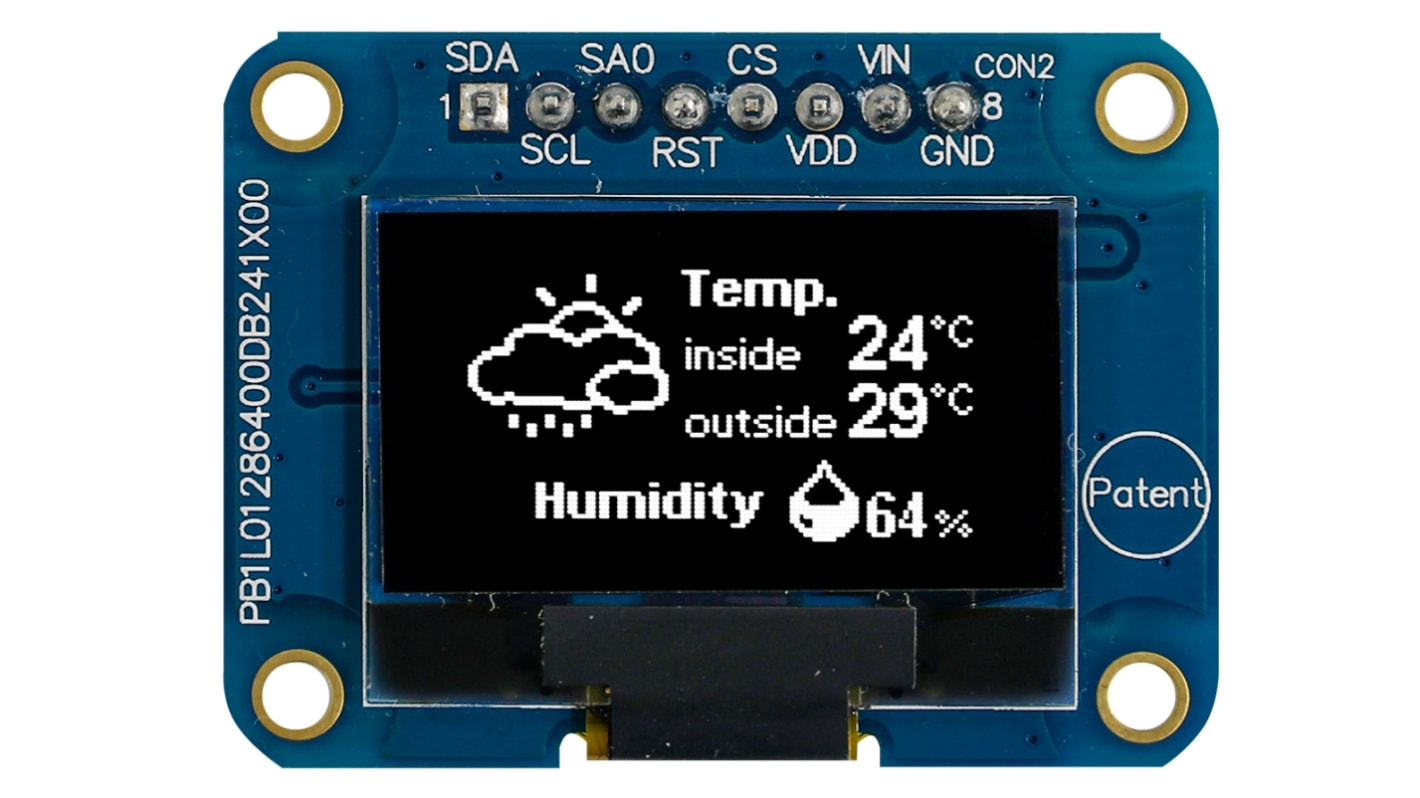

The Midas 128 X 64 resolution graphic OLED display has a white on black appearance. This display uses passive matrix.
Operating temperature -40°C to +80°C
Logic voltage 3V
Logic voltage 3V
