MPN

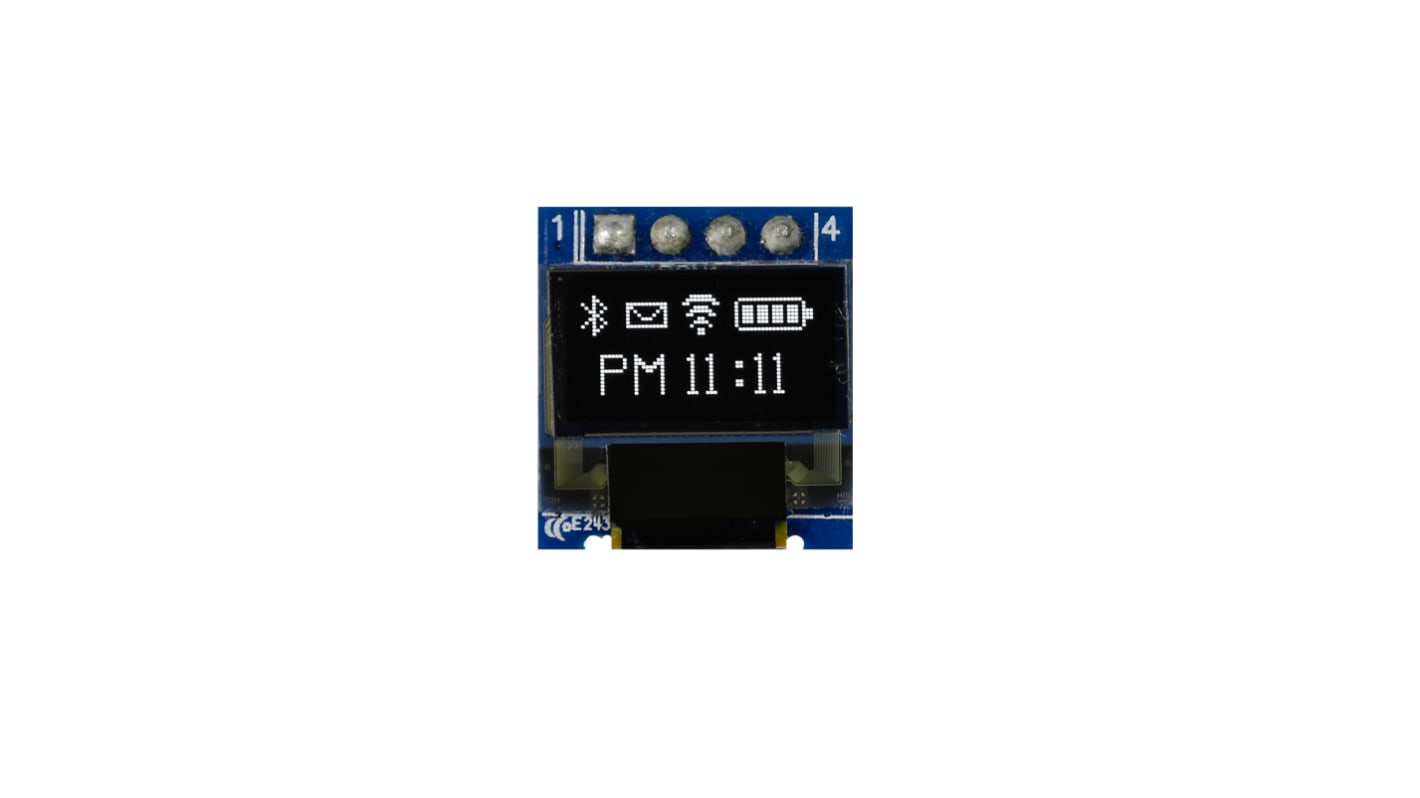

Midas 0.49 in Passive matrix White OLED Display 64 x 32 pixel COB

RS Stock No.:: 225-6195
Mfr. Part No.:: MDOB064032AV-WI
Manufacturer:: Midas

Midas 0.49 in Passive matrix White OLED Display 64 x 32 pixel COB

Bulk discount available

Subtotal (1 unit)*

MYR25.24

FREE delivery for orders over RM 500.00

In Stock

42 unit(s) ready to ship from another location
Plus 7 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR25.24
5 - 9	MYR24.53
10 +	MYR23.52

*price indicative

RS Stock No.:: 225-6195
Mfr. Part No.:: MDOB064032AV-WI
Manufacturer:: Midas

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Midas
	Product Type	OLED Display
	Diagonal Display Size	0.49in
	Viewing Area Dimensions	11.18 x 5.58 mm
	Matrix Type	Passive
	Screen Resolution	64 x 32 pixel
	Contrast Ratio	2000:1
	Driver Mounting	COB
	External Depth	2.36mm
	External Height	2.36mm
	Minimum Operating Temperature	-40°C
	External Width	14.58mm
	Maximum Operating Temperature	80°C
	Standards/Approvals	RoHS
	Forward Voltage	3.3V dc
	Display Colour	White
	Forward Current	26mA

	Select all
	Brand Midas
	Product Type OLED Display
	Diagonal Display Size 0.49in
	Viewing Area Dimensions 11.18 x 5.58 mm
	Matrix Type Passive
	Screen Resolution 64 x 32 pixel
	Contrast Ratio 2000:1
	Driver Mounting COB
	External Depth 2.36mm
	External Height 2.36mm
	Minimum Operating Temperature -40°C
	External Width 14.58mm
	Maximum Operating Temperature 80°C
	Standards/Approvals RoHS
	Forward Voltage 3.3V dc
	Display Colour White
	Forward Current 26mA

The Midas chip-on-board 64 x 32 resolution graphic OLED display has a white on black appearance. This display uses the SSD1306BZ controller.

Operating temperature-40°C to +80°C

Midas 0.49 in Passive matrix White OLED Display 64 x 32 pixel COB
