Display Visions 2.9in Yellow OLED Display 128 x 64pixels Graphics I2C, SPI Interface
- RS Stock No.:
- 177-1361
- Mfr. Part No.:
- EA OLEDL128-6LGA
- Manufacturer:
- Display Visions
Bulk discount available
Subtotal (1 box of 12 units)*
MYR3,102.816
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 12 - 12 | MYR258.568 | MYR3,102.82 |
| 24 - 108 | MYR254.173 | MYR3,050.08 |
| 120 + | MYR249.853 | MYR2,998.24 |
*price indicative
- RS Stock No.:
- 177-1361
- Mfr. Part No.:
- EA OLEDL128-6LGA
- Manufacturer:
- Display Visions
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Display Visions | |
| Diagonal Display Size | 2.9in | |
| Viewing Area Dimensions | 32.94 x 60.78mm | |
| Matrix Type | Active | |
| Display Colours | Yellow | |
| Resolution | 128 x 64pixels | |
| Contrast Ratio | 2000:1 | |
| Driver Mounting | Graphics | |
| Interface Ports | I2C, SPI | |
| Dimensions | 68 x 51 x 3.3mm | |
| Depth | 51mm | |
| Touch Screen Type | None | |
| Height | 3.3mm | |
| Maximum Operating Temperature | +80°C | |
| Forward Voltage | 13 V dc | |
| Viewing Area Height | 32.94mm | |
| Operating Temperature Range | -40 → +80°C | |
| Series | EA OLED | |
| Width | 68mm | |
| Minimum Operating Temperature | -40°C | |
| Viewing Area Width | 60.78mm | |
| Select all | ||
|---|---|---|
Brand Display Visions | ||
Diagonal Display Size 2.9in | ||
Viewing Area Dimensions 32.94 x 60.78mm | ||
Matrix Type Active | ||
Display Colours Yellow | ||
Resolution 128 x 64pixels | ||
Contrast Ratio 2000:1 | ||
Driver Mounting Graphics | ||
Interface Ports I2C, SPI | ||
Dimensions 68 x 51 x 3.3mm | ||
Depth 51mm | ||
Touch Screen Type None | ||
Height 3.3mm | ||
Maximum Operating Temperature +80°C | ||
Forward Voltage 13 V dc | ||
Viewing Area Height 32.94mm | ||
Operating Temperature Range -40 → +80°C | ||
Series EA OLED | ||
Width 68mm | ||
Minimum Operating Temperature -40°C | ||
Viewing Area Width 60.78mm | ||
- COO (Country of Origin):
- CN

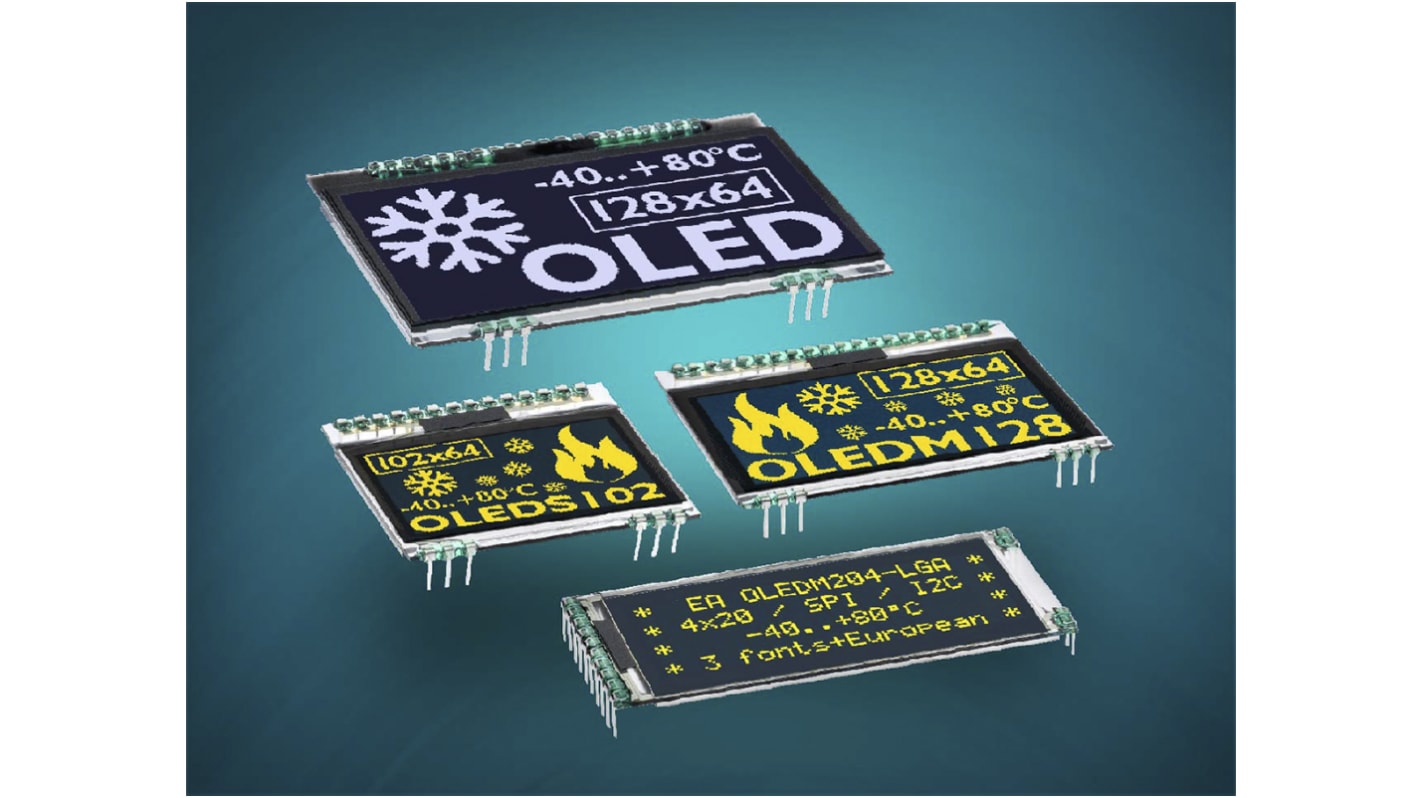

Now the worldwide first OLED display family with pins is available! Pins with pitch 2.54mm provide a much faster and easier design, just put the display directly on a breadboard and application.More than this: even in mass production the pins facilitate all mounting needs automatically. There's no need for any mechanical construction: simply solder the display into a pcb or plug with sockets.
Top. -40..+80°C (-40..+176°F)
From ice cold to brooding heat
extreme wide viewing angle of more than 170°
contrast > 1:1000
display response time typ. 10μs (even at -40°C)
From ice cold to brooding heat
extreme wide viewing angle of more than 170°
contrast > 1:1000
display response time typ. 10μs (even at -40°C)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
