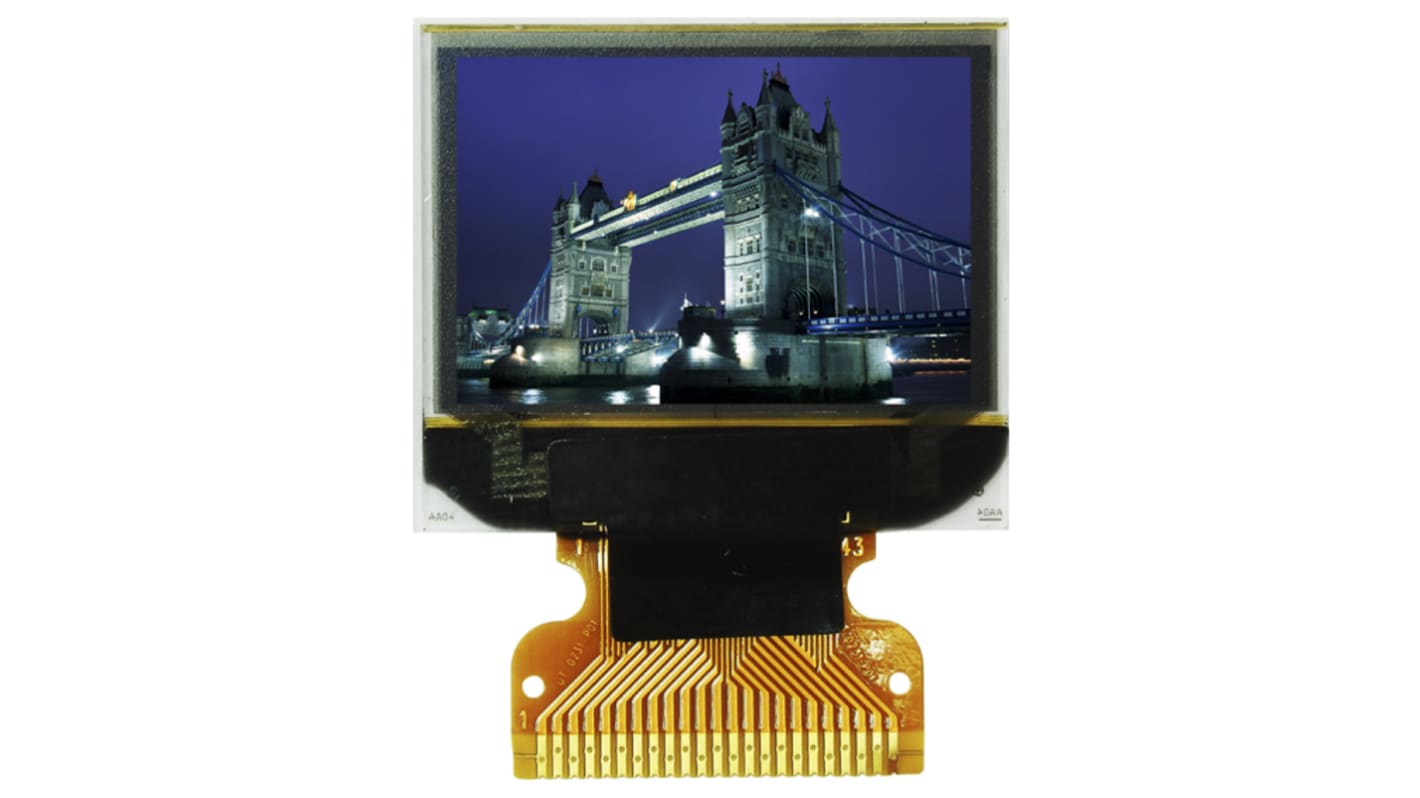

Midas 0.95in Blue, Green, Red Passive matrix OLED Display 96 x 64pixels TAB Multi Interface
- RS Stock No.:
- 171-1674
- Mfr. Part No.:
- MCOT096064AZ-RGBM
- Manufacturer:
- Midas
Bulk discount available
Subtotal (1 box of 50 units)*
MYR4,994.60
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 50 unit(s) shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 50 - 200 | MYR99.892 | MYR4,994.60 |
| 250 + | MYR96.895 | MYR4,844.75 |
*price indicative
- RS Stock No.:
- 171-1674
- Mfr. Part No.:
- MCOT096064AZ-RGBM
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 0.95in | |
| Viewing Area Dimensions | 23.938 x 12.058mm | |
| Matrix Type | Passive | |
| Display Colours | Blue, Green, Red | |
| Resolution | 96 x 64pixels | |
| Number of Colours | 65,536 | |
| Contrast Ratio | >1000:1 | |
| Driver Mounting | TAB | |
| Interface Ports | Multi | |
| Dimensions | 26.7 x 19.26 x 1.45mm | |
| Depth | 1.45mm | |
| Height | 19.26mm | |
| Maximum Operating Temperature | +70°C | |
| Viewing Area Width | 23.938mm | |
| Operating Temperature Range | -30 → +70°C | |
| Viewing Area Height | 12.058mm | |
| Minimum Operating Temperature | -30°C | |
| Forward Voltage | 3.5 V dc | |
| Width | 26.7mm | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 0.95in | ||
Viewing Area Dimensions 23.938 x 12.058mm | ||
Matrix Type Passive | ||
Display Colours Blue, Green, Red | ||
Resolution 96 x 64pixels | ||
Number of Colours 65,536 | ||
Contrast Ratio >1000:1 | ||
Driver Mounting TAB | ||
Interface Ports Multi | ||
Dimensions 26.7 x 19.26 x 1.45mm | ||
Depth 1.45mm | ||
Height 19.26mm | ||
Maximum Operating Temperature +70°C | ||
Viewing Area Width 23.938mm | ||
Operating Temperature Range -30 → +70°C | ||
Viewing Area Height 12.058mm | ||
Minimum Operating Temperature -30°C | ||
Forward Voltage 3.5 V dc | ||
Width 26.7mm | ||
- COO (Country of Origin):
- TW
Midas RGB Graphic OLED Displays, TAB
A range of TAB (Taped Automated Bonding) RGB Full Colour OLED displays from Midas. The construction of these TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides vivid high-visibility colour displays with outstanding visual characteristics, including high contrast and wide viewing angles.
Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 1000:1
Operating temperature range: -30 to 70°C
Operating life: 30,000 hours at 25°C
Interface type: Parallel/Serial selectable
Contrast ratio: > 1000:1
Operating temperature range: -30 to 70°C
Operating life: 30,000 hours at 25°C
Interface type: Parallel/Serial selectable
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
