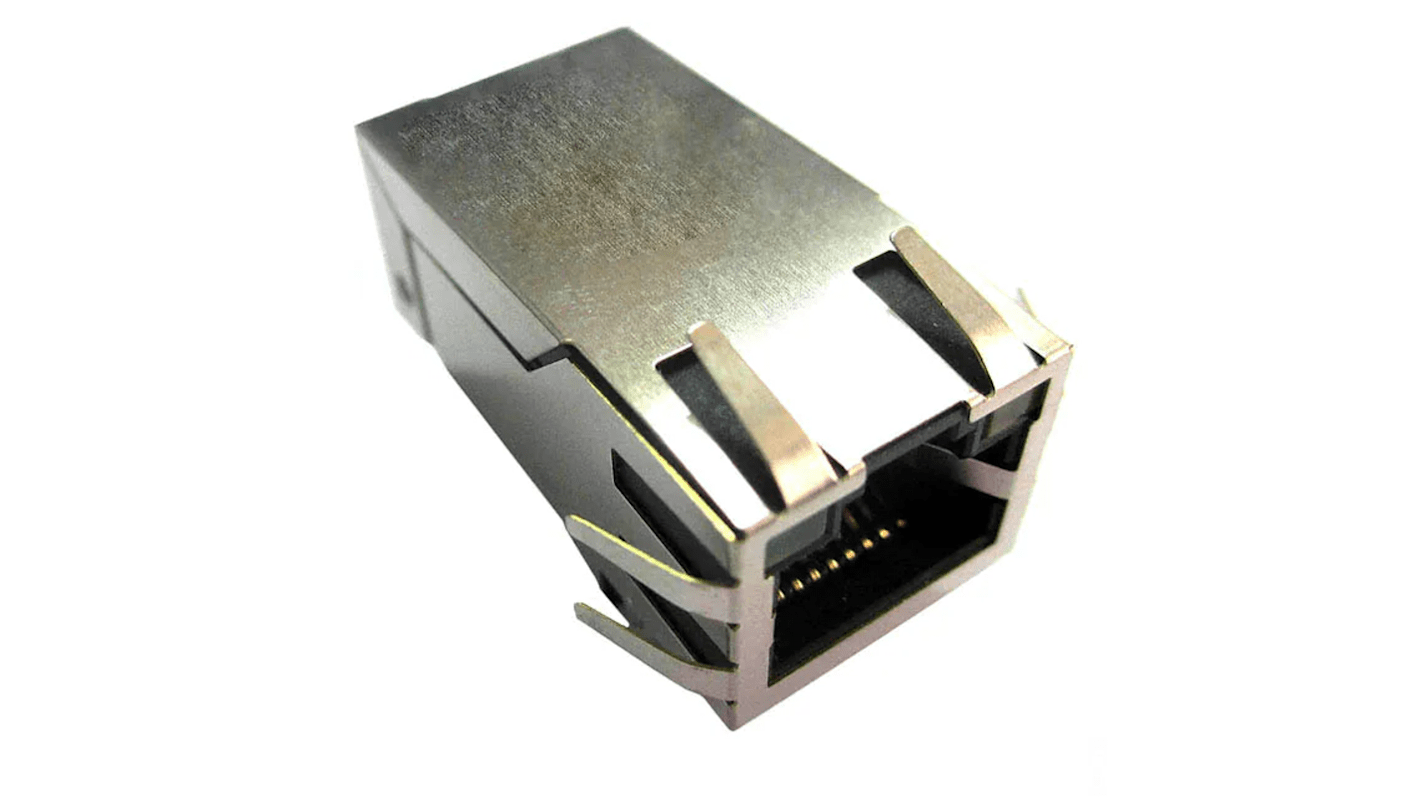

Abracon 100 Mbps Networking Module RJ45, Ethernet
- RS Stock No.:
- 240-3539
- Mfr. Part No.:
- ARJP11A-MASA-B-A-EMU2
- Manufacturer:
- Abracon
This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 60 units)*
MYR1,735.68
FREE delivery for orders over RM 500.00
In Stock
- 240 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 60 - 60 | MYR28.928 | MYR1,735.68 |
| 120 - 240 | MYR28.136 | MYR1,688.16 |
| 300 + | MYR25.127 | MYR1,507.62 |
*price indicative
- RS Stock No.:
- 240-3539
- Mfr. Part No.:
- ARJP11A-MASA-B-A-EMU2
- Manufacturer:
- Abracon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Networking Module | |
| Sub Type | PoE 10/100 Base-TX Jack with Magnetic Module | |
| Data Rate | 100Mbps | |
| Interface Type | RJ45, Ethernet | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS, IEEE 802.3ab | |
| Width | 16.26 mm | |
| Height | 13.84mm | |
| Length | 21.59mm | |
| Series | ARJP11A | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Networking Module | ||
Sub Type PoE 10/100 Base-TX Jack with Magnetic Module | ||
Data Rate 100Mbps | ||
Interface Type RJ45, Ethernet | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS, IEEE 802.3ab | ||
Width 16.26 mm | ||
Height 13.84mm | ||
Length 21.59mm | ||
Series ARJP11A | ||
The Abracon ARJP11A is RJ45 PoE 10/100 base TX jack with magnetic module suitable for RoHS compliant reflow and can be use in 10/100 base-TX LAN, NIC, LoM and PC applications
Available with or without LED
Suitable CAT 5 & 6 cable and UTP
Comply IEEE 802.3ab
LAN magnetic with RJ45
Suitable for RoHS compliant reflow
RoHS compliant
