InnoDisk EGP2-X401-W1 Networking Module PCIe

RS Stock No.:: 202-9222
Mfr. Part No.:: EGP2-X401-W1
Manufacturer:: InnoDisk

InnoDisk EGP2-X401-W1 Networking Module PCIe

Subtotal (1 unit)*

MYR732.64

FREE delivery for orders over RM 500.00

Supply shortage

Plus 5 left, shipping from 15 December 2025

Our current stock is limited and our suppliers are expecting shortages.

Units	Per Unit
1 +	MYR732.64

*price indicative

RS Stock No.:: 202-9222
Mfr. Part No.:: EGP2-X401-W1
Manufacturer:: InnoDisk

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	InnoDisk
	Product Type	Networking Module
	Sub Type	Device Server
	Interface Type	PCIe
	Maximum Operating Temperature	85°C
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	3.3V
	Minimum Operating Temperature	-40°C
	Standards/Approvals	No
	Height	5.1mm
	Series	EGP2-X401-W1
	Length	42.15mm
	Width	22.15 mm

	Select all
	Brand InnoDisk
	Product Type Networking Module
	Sub Type Device Server
	Interface Type PCIe
	Maximum Operating Temperature 85°C
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 3.3V
	Minimum Operating Temperature -40°C
	Standards/Approvals No
	Height 5.1mm
	Series EGP2-X401-W1
	Length 42.15mm
	Width 22.15 mm

Datasheet - EGP2-X401-W1

COO (Country of Origin):: TW

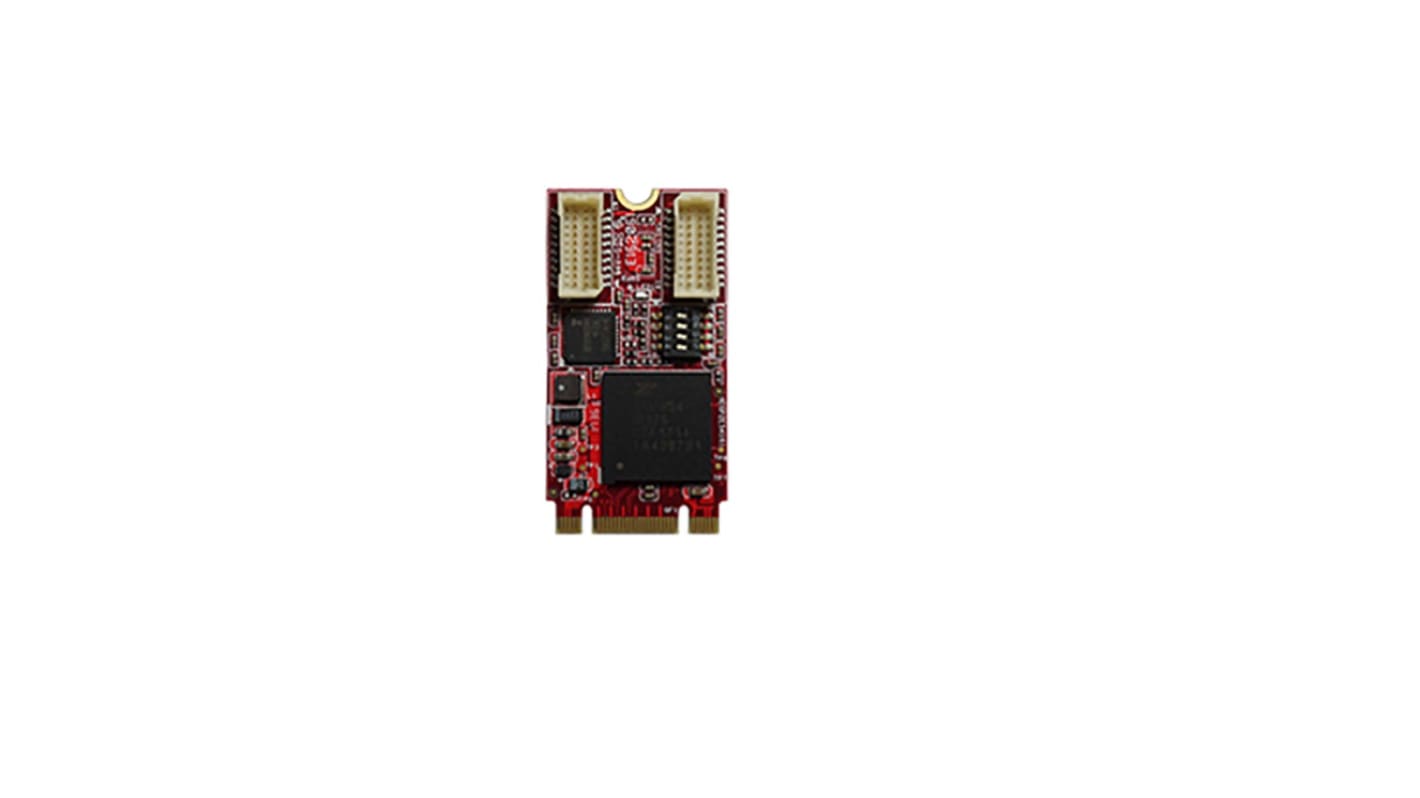

The Innodisk Serial board is M.2 to four RS-232/422/485 module. It has PCI Express 2.0 input and RS-232/422/485 module at output. The product has 0.58W power consumption. The operating temperature ranges between -40°C to 85°C. The DB-9 x 4 is used at output side.

4800 to 3Mbps serial data rate (RS-232 921.6Kbps) serial data rate. 16C550 compatible. 256-byte FIFOs

Alternative vertical or horizontal connector

Full RS-232 functions with DB9 connector

Termination resistor enabled/disabled by DIP switch

Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

30μ” golden finger, 3-year warranty
