TANGO16/3M/SMAM/SMAM/S/S/26 Siretta - 2G (GSM/GPRS), 3G (UTMS), ISM Band Multi-Band Antenna, SMA

  • RS Stock No. 124-8707
  • Mfr. Part No. TANGO16/3M/SMAM/SMAM/S/S/26
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

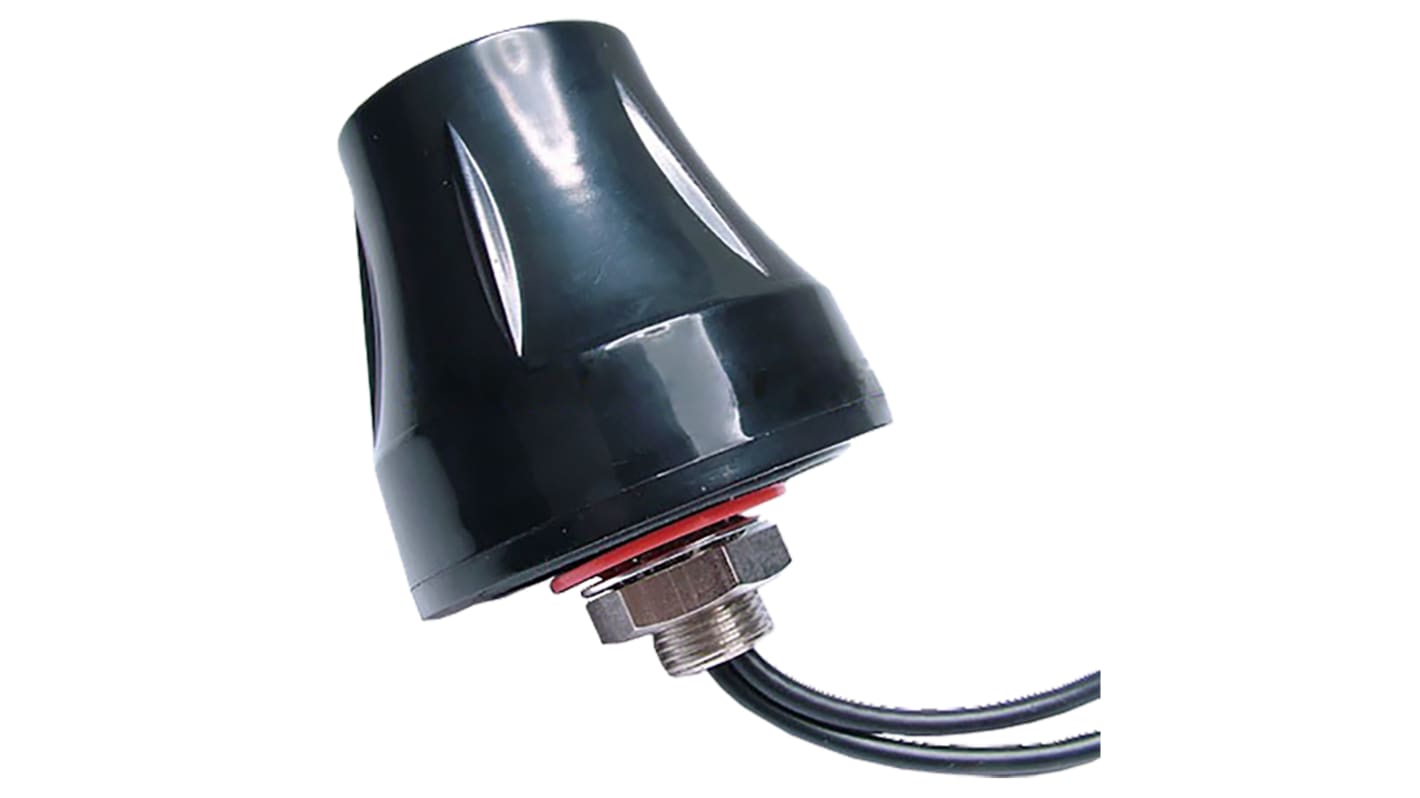

TANGO 16 Combined GSM/GPRS/3G/ISM/GPS Antenna, Siretta

The TANGO 16 antenna family are an IP67 rated and fully weatherproof combination GSM/GPS, 3G, ISM antenna intended for outdoor equipment. They are mounted using an M12 stud and the housing measures 50 mm in diameter and stands 48 mm tall. A rubber O-Ring ensure no water ingress.

The antenna has a GSM gain of 1.95 dBi and the GPS antenna has an LNA gain of 28 dB.

Available with two cable lengths:

TANGO16/3M/SMAM/SMAM/S/S/26 - 3 metre cable (RS 124-8707)
TANGO16/5M/SMAM/SMAM/S/S/26 - 5 metre cable (RS 124-8708)

Operating Temperature: -40 to +85°C
Impedance: 50 Ω
GSM Gain (peak): 1.95 dBi
3G Gain: 2.33 dBi
ISM Gain: 1.5 dBi to 2 dBi
GPS Gain: 28 dB
VSWR: <1.5
GSM Polarisation: Linear
GPS Polarisation: RHCP
Protection: IP67 Rated
Cable: 2 x RG174 coaxial cable
Connectors: 2 x SMA Male

Operating Frequencies
850, 900, 1800, 1900 MHz (Quad Band GSM/GPRS)
2.1 GHz (3G)
868 MHz, 915 MHz (ISM)
1575.42 MHz (GPS)

Multi-band Antennas, Siretta

Specifications
Attribute Value
Internal/External External
RF Protocols ISM Band, 2G (GSM/GPRS), 3G (UTMS)
Supported Frequency Bands 2.1 (3G) GHz, 850 (Quad Band GSM/GPRS) MHz, 868 (ISM) MHz, 900 (Quad Band GSM/GPRS) MHz, 915 (ISM) MHz, 1575.42 (GPS) MHz, 1800 (Quad Band GSM/GPRS) MHz, 1900 (Quad Band GSM/GPRS) MHz
Antenna Physical Form Dome
Antenna Mounting Type Through Hole/Bolted
Connector Type SMA
Includes Lead Yes
Gain 2dBi
Lead Length 3m
Antenna Directivity Omnidirectional
Connector Gender Male
Series TANGO 16
7 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 216.57
units
Per unit
1 +
MYR216.57
