- RS Stock No.:
- 820-0700
- Mfr. Part No.:
- ATS01N232LU
- Manufacturer:
- Schneider Electric
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,651.05
Units | Per Unit |
1 + | MYR1,651.05 |
- RS Stock No.:
- 820-0700
- Mfr. Part No.:
- ATS01N232LU
- Manufacturer:
- Schneider Electric
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Altistart Soft Start
Created and designed to operate as a torque limiter on starting, or as a soft start or soft stop unit for asynchronous motors. This range of soft starters enhances the starting performance of asynchronous motors by allowing them to start smoothly, gradually and in a controlled manner. They are compact and easy to install, the Altistart 01 series can be mounted side by side.
Features & Benefits
May be used with single or three phase motors
Note
Power ratings stated are for 3 phase 400V motors. These units may also be used with lower voltage 3 phase motors and single phase motors. Please refer to technical data sheet for further information.

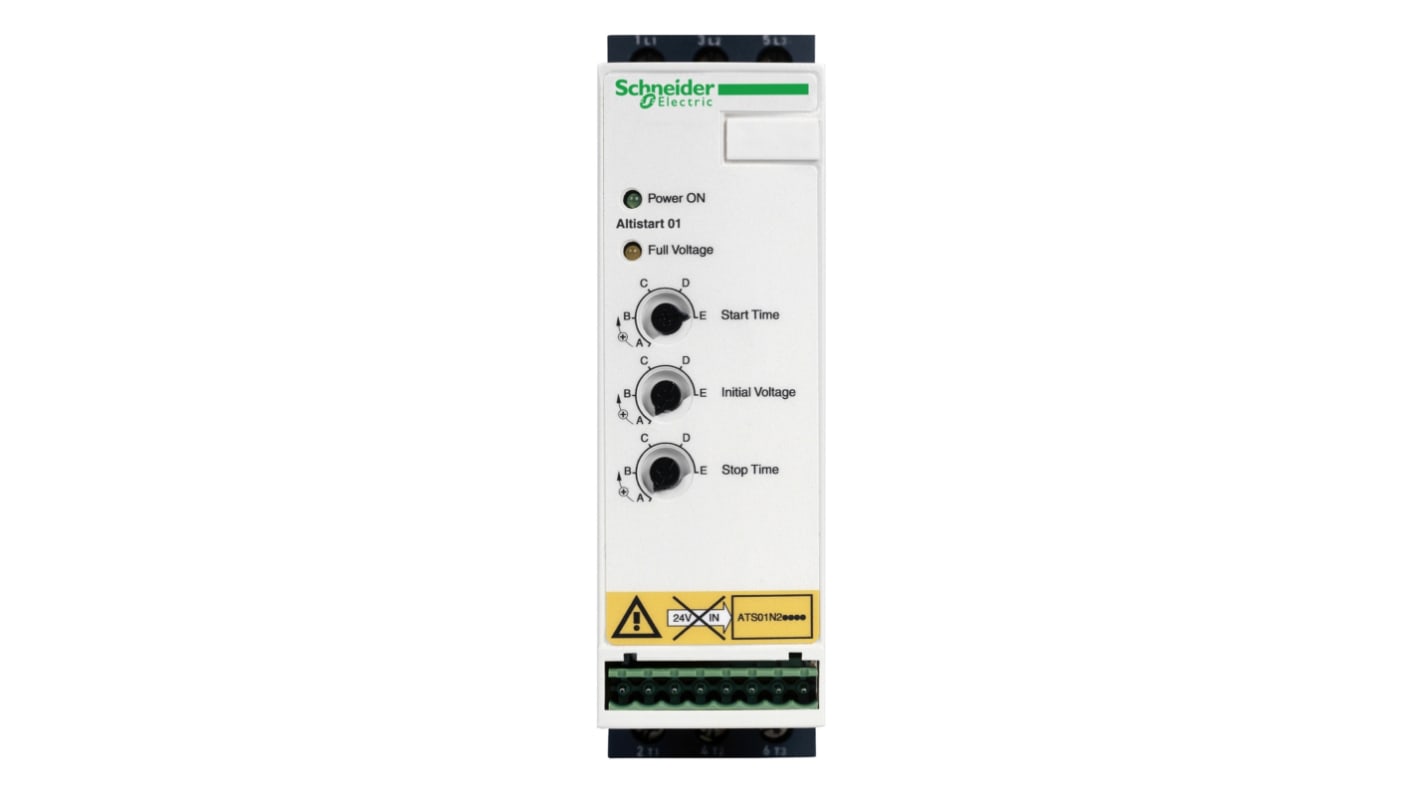

Schneider Electric ATS01 Series Soft Start, 32A, IP20 - ATS01N232LU
This Schneider Electric soft start is specifically designed to enhance the starting performance of three phase asynchronous motors. With a current rating of 32A and a power rating of 7.5kW, this soft start ensures a smooth and controlled start for your motor while providing torque surge suppression. The compact design of the soft start allows for easy installation through DIN rail mounting and features a removable control wiring terminal for added convenience.
Features & Benefits
• Provides smooth and gentle starting for motors, reducing wear and tear
• Reduces maintenance costs by preventing mechanical shocks
• Saves up to 25% of panel space compared to other soft start solutions
• Offers transitionless starting with no current or torque pulse
• Easily adaptable to various applications with adjustment dials for starting torque and ramp times
• Facilitates soft stopping to reduce pressure induced stresses on hydraulic systems
• Compatible with TeSys U line motor starters for complete motor and machine protection
• Reduces maintenance costs by preventing mechanical shocks
• Saves up to 25% of panel space compared to other soft start solutions
• Offers transitionless starting with no current or torque pulse
• Easily adaptable to various applications with adjustment dials for starting torque and ramp times
• Facilitates soft stopping to reduce pressure induced stresses on hydraulic systems
• Compatible with TeSys U line motor starters for complete motor and machine protection
Applications
• Ideal for use in automation, electronics, electrical, and mechanical industries
• Perfect for pumps, fans, conveyors, material handling equipment, and other industrial applications
• Perfect for pumps, fans, conveyors, material handling equipment, and other industrial applications
Can it prevent mechanical shocks to my motor and machinery?
Yes, the Schneider Electric soft start ensures a smooth start to reduce wear and tear, preventing mechanical shocks effectively.
Will it save panel space compared to other soft start solutions?
Yes, the compact design of the soft start can save up to 25% of panel space, making it a convenient option for installation.
Is it compatible with TeSys U-line motor starters?
Yes, the Schneider Electric soft start can be easily integrated with TeSys U-line motor starters to provide complete motor and machine protection.
Specifications
Attribute | Value |
---|---|
Power Rating | 7.5 kW |
Range | Altistart 01 |
Motor Starter Type | Soft Start |
Voltage Rating | 240 V ac |
Phase | 3 |
Current Rating | 32 A |
IP Rating | IP20 |
Overall Length | 45mm |
Overall Width | 154mm |
Better World Verification | Green Premium |
Overall Depth | 135mm |
Better World Product | Yes |
Mounting Type | DIN Rail |
Series | ATS01 |
Standards Met | CSA, UL |
