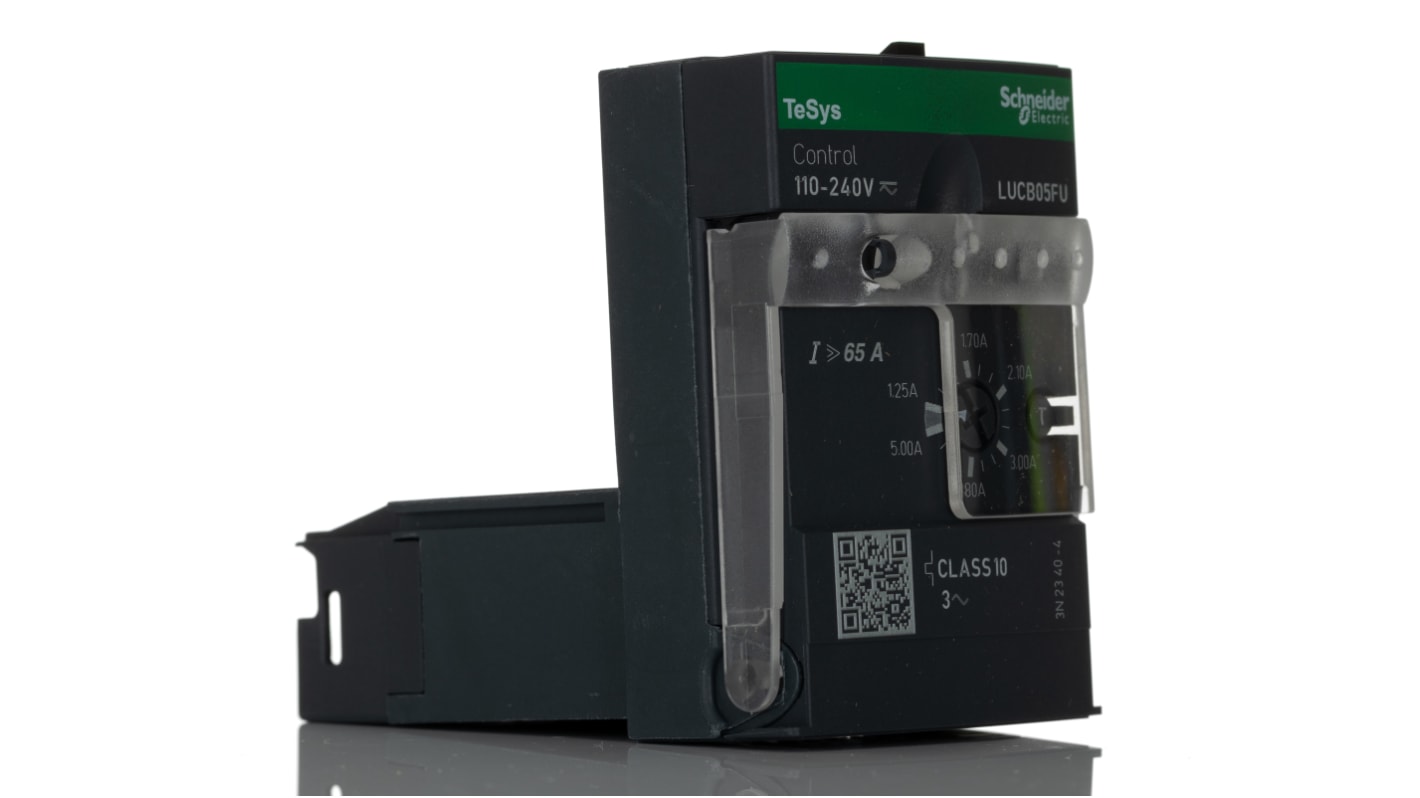

Schneider Electric TeSys Advanced Motor Starter, 1.5 kW, 240 V ac, 3 Phase, IP20, IP40, 1.25 → 5 A

Required by every Power Base module, plugs into base
Select the control voltage, motor power and class
Provides motor protection against overloads, short circuits, phase failure and phase imbalance
Test button

For use with, refers to a power base with the relevant capacity.

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

Give your system a boost with this advanced motor starter from Schneider Electric. It connects equipment directly to the supply unit, delivering full line voltage to get things up and running. The unit falls into the AC-41, AC-44 and AC-43 utilisation categories, making it the right choice for starting and switching off squirrel cage motors, as well as non-inductive loads. It loses just 3W of power to heat during operation, so you can rest assured of energy efficiency. What's more, it works optimally in operating temperatures ranging between -25°C and +70°C, making it fit for challenging settings.

• Compact dimensions of 66 (H) x 45 (W) x 60mm (D) make it a space-saving solution for tight setups
• IP40 rating shows that it's finger-safe as it's protected from objects larger than 1mm
• Power rating of 3kW makes it fit for medium-duty to heavy-duty applications

• Mining industry
• Marine engineering
• Sewage treatment plants

To keep your setup safe, it has built-in protection against short circuits and overloads. It also detects phase failure to prevent overheating due to current and torque imbalance.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

Faster design with fewer components needed
Quicker panel build with faster assembly time and fewer wires per starter
Space saving 45mm width up to 32A (even for reversing) allowing smaller panels
Flexible and upgradeable with plug-and-play function modules
Voltage and protection parameters can be determined after assembly and wiring
Broad band electronic control unit provides improved overload protection with fewer components
Expandable plug-and–play diagnostics
Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
