STMicroelectronics L293D, Brushed DC Motor Motor Driver IC, 36 V 0.6 A 16-Pin, PDIP
- RS Stock No.:
- 714-0622
- Distrelec Article No.:
- 173-13-224
- Mfr. Part No.:
- L293D
- Manufacturer:
- STMicroelectronics

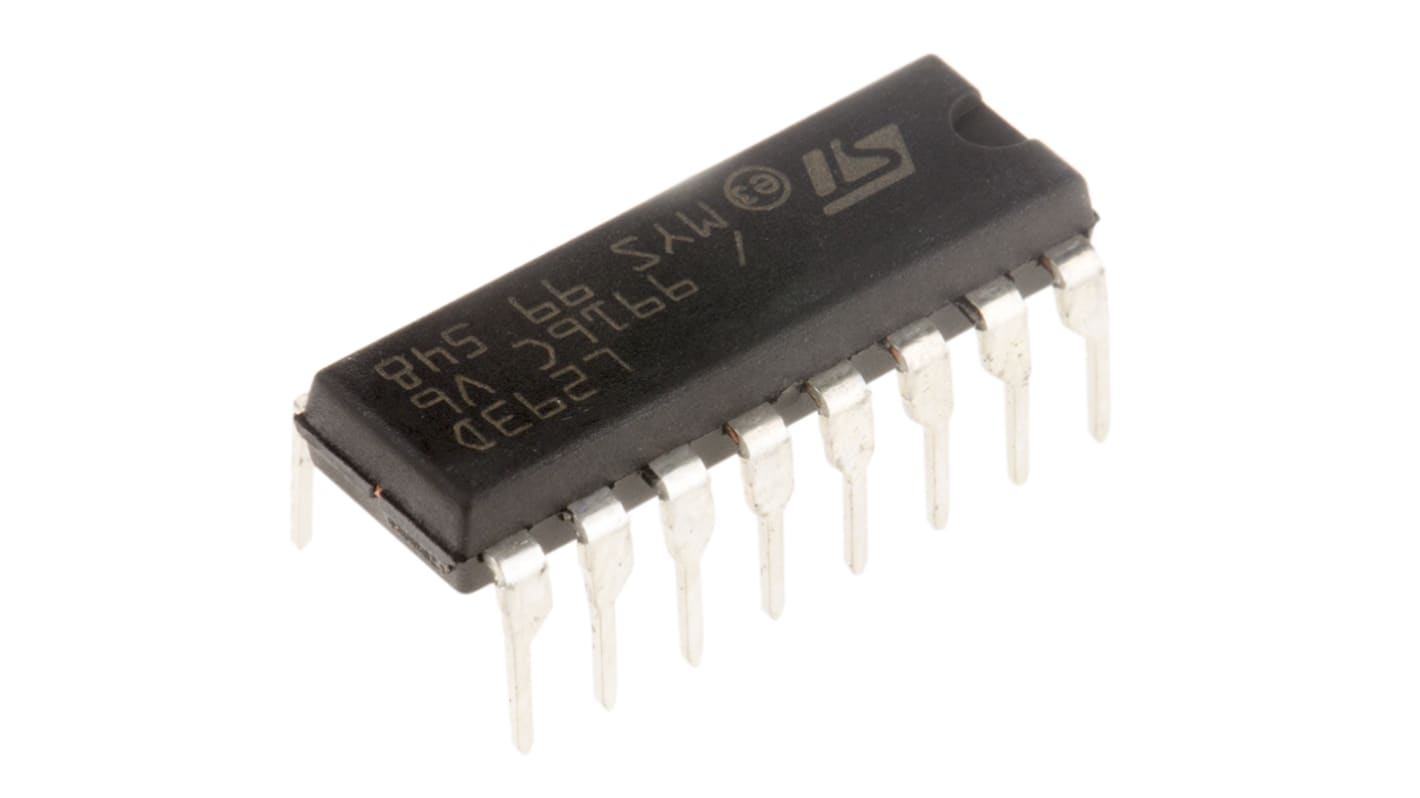

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR39.61
FREE delivery for orders over RM 500.00
In Stock
- 137 unit(s) ready to ship from another location
- Plus 1,090 unit(s) shipping from 12 May 2026
- Plus 18 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR39.61 |
| 10 - 49 | MYR38.81 |
| 50 - 149 | MYR38.02 |
| 150 - 499 | MYR37.24 |
| 500 + | MYR36.47 |
*price indicative
- RS Stock No.:
- 714-0622
- Distrelec Article No.:
- 173-13-224
- Mfr. Part No.:
- L293D
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | Brushed DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | Quad | |
| Maximum IGBT Collector Current | 0.6A | |
| Maximum Collector Emitter Voltage Vceo | 36V | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Output Current | 1.2A | |
| Maximum Supply Voltage | 36V | |
| Minimum Supply Voltage | 4.5V | |
| Minimum Operating Temperature | -40°C | |
| Typical Switching Frequency | 5kHz | |
| Maximum Operating Temperature | 150°C | |
| Length | 20mm | |
| Series | L293D | |
| Standards/Approvals | No | |
| Height | 5.1mm | |
| Inverter Power Rating | 4W | |
| Supply Current | 100μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type Brushed DC Motor | ||
Product Type Motor Driver IC | ||
Configuration Quad | ||
Maximum IGBT Collector Current 0.6A | ||
Maximum Collector Emitter Voltage Vceo 36V | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Pin Count 16 | ||
Output Current 1.2A | ||
Maximum Supply Voltage 36V | ||
Minimum Supply Voltage 4.5V | ||
Minimum Operating Temperature -40°C | ||
Typical Switching Frequency 5kHz | ||
Maximum Operating Temperature 150°C | ||
Length 20mm | ||
Series L293D | ||
Standards/Approvals No | ||
Height 5.1mm | ||
Inverter Power Rating 4W | ||
Supply Current 100μA | ||
Automotive Standard No | ||
STMicroelectronics L293D Motor Driver IC
STMicroelectronics L293D Push-Pull four channel driver with diodes is assembled in a 16 lead plastic package which has 4 center pins connected together and used for heatsinking. This is a monolithic integrated high voltage, high current four channel driver. This device has a H-Bridge motor driver integrated circuit(IC) L293D is a typical Motor driver or Motor Driver IC which allows DC motor to drive on either direction
Features
600mA output current capability per channel
Overprotection protection
Internal clamp diodes
Can drive small and medium motors
Control a set of two motors simultaneously
Load Driver ICs, STMicroelectronics
Relay and Inductive Load Drivers
