Allegro Microsystems A3959SLBTR-T, Brushed Motor Driver IC, 50 V 3A 24-Pin, SOIC W

RS Stock No.:: 680-7188
Mfr. Part No.:: A3959SLBTR-T
Manufacturer:: Allegro Microsystems

Allegro Microsystems A3959SLBTR-T, Brushed Motor Driver IC, 50 V 3A 24-Pin, SOIC W

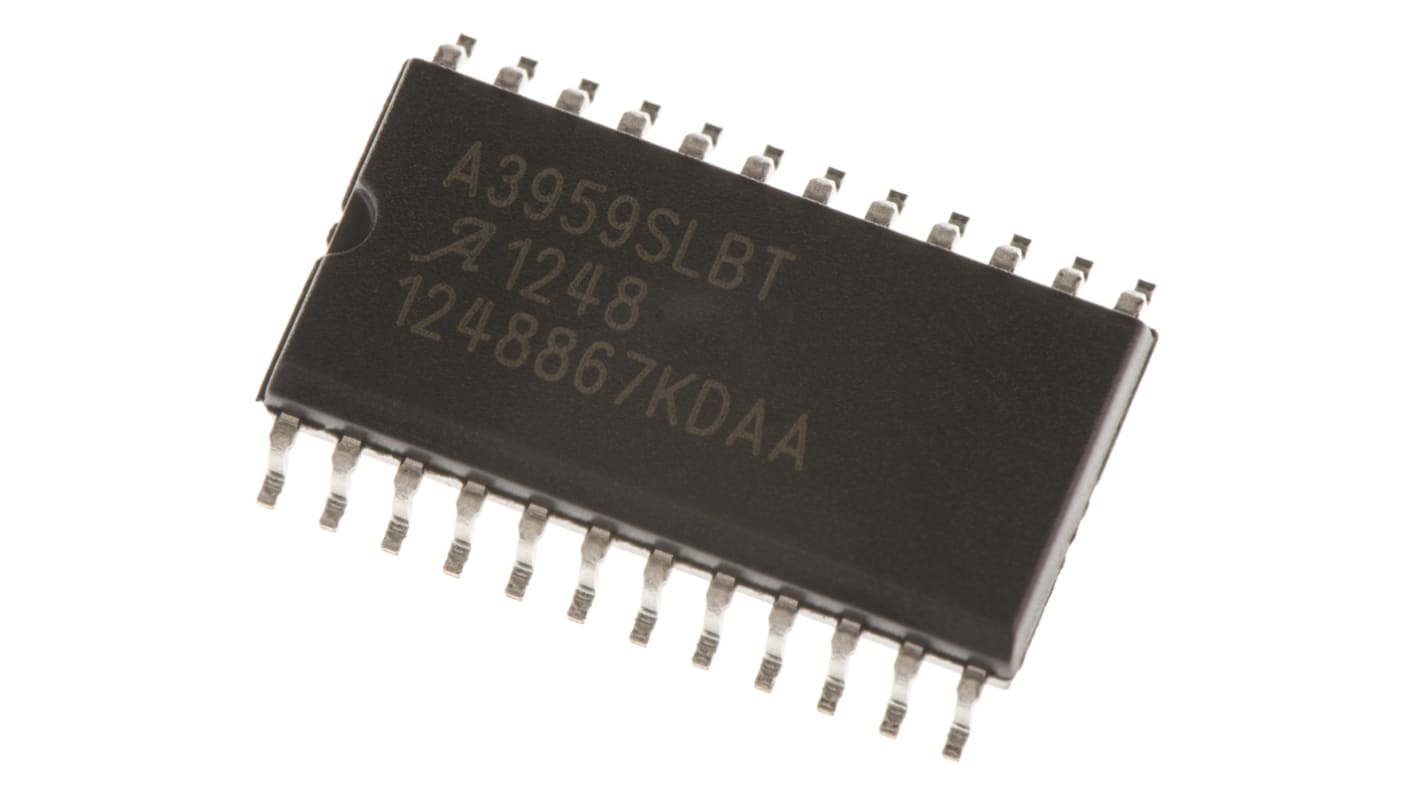

This image is representative of the product range

Available for back order.

Price Each

MYR25.02

Units	Per Unit
1 - 249	MYR25.02
250 - 499	MYR24.49
500 +	MYR23.77

RS Stock No.:: 680-7188
Mfr. Part No.:: A3959SLBTR-T
Manufacturer:: Allegro Microsystems

A3959 DMOS Full-Bridge PWM Motor Driver Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Motor Type	Brushed DC
Output Configuration	Full Bridge
Maximum IGBT Collector Current	3A
Maximum Collector Emitter Voltage	50 V
Mounting Type	Surface Mount
Package Type	SOIC W
Maximum Operating Supply Voltage	5.5 V
Pin Count	24
Minimum Operating Supply Voltage	4.5 V
Dimensions	15.4 x 7.5 x 2.35mm
Height	2.35mm
Width	7.5mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-20 °C
Length	15.4mm
