Allegro Microsystems A4970SLBTR-T, Stepper Motor Driver IC, 45 V 750 mA 24-Pin, SOIC
- RS Stock No.:
- 172-9283
- Mfr. Part No.:
- A4970SLBTR-T
- Manufacturer:
- Allegro Microsystems

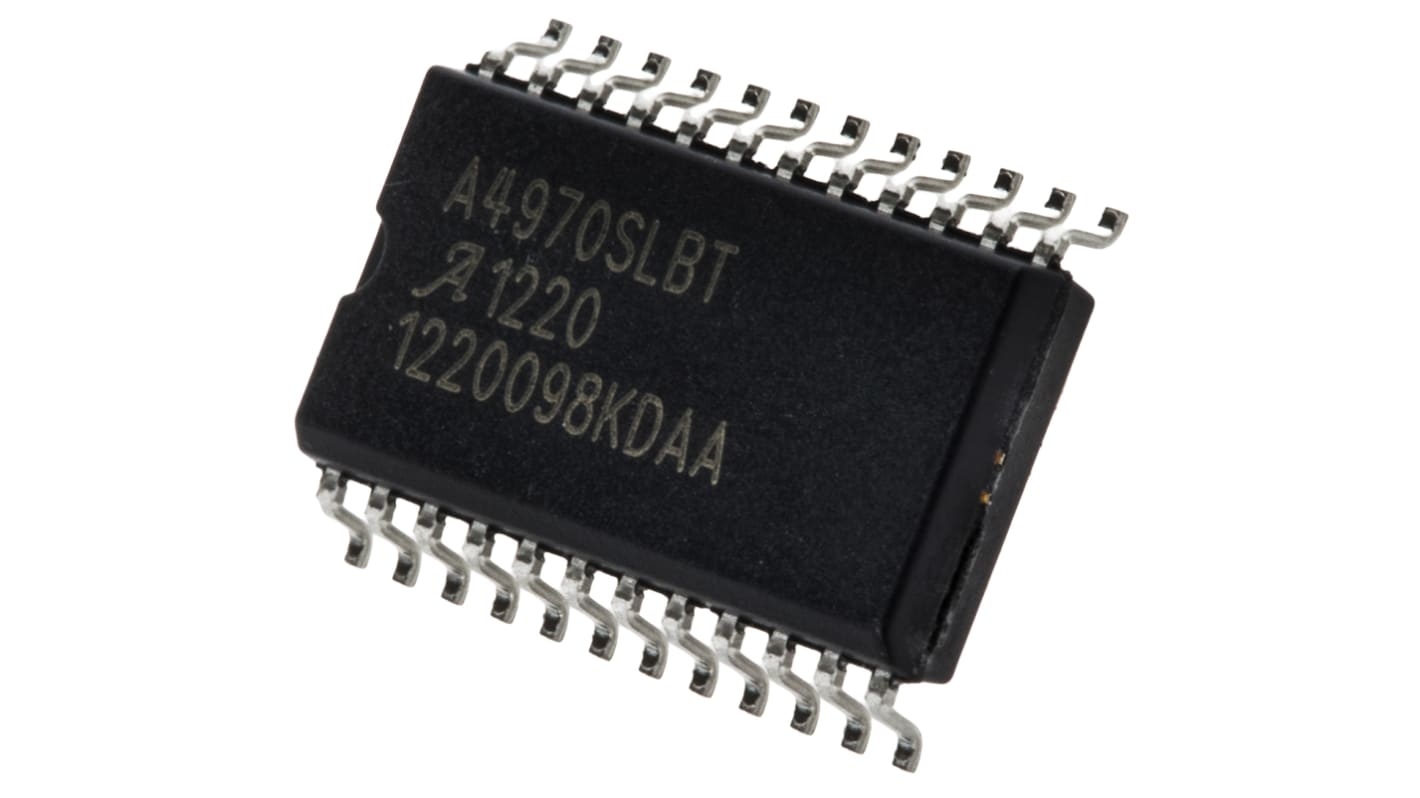

This image is representative of the product range
Subtotal (1 reel of 3000 units)*
MYR41,673.00
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 + | MYR13.891 | MYR41,673.00 |
*price indicative
- RS Stock No.:
- 172-9283
- Mfr. Part No.:
- A4970SLBTR-T
- Manufacturer:
- Allegro Microsystems
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allegro Microsystems | |
| Motor Type | Stepper | |
| Product Type | Motor Driver IC | |
| Configuration | Bipolar | |
| Maximum IGBT Collector Current | 750mA | |
| Maximum Collector Emitter Voltage Vceo | 45V | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 24 | |
| Output Current | 1A | |
| Maximum Supply Voltage | 45V | |
| Minimum Supply Voltage | 7.45V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 2.45mm | |
| Series | A4970SLBTR | |
| Width | 7.5mm | |
| Length | 15.4mm | |
| Supply Current | 10mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Allegro Microsystems | ||
Motor Type Stepper | ||
Product Type Motor Driver IC | ||
Configuration Bipolar | ||
Maximum IGBT Collector Current 750mA | ||
Maximum Collector Emitter Voltage Vceo 45V | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 24 | ||
Output Current 1A | ||
Maximum Supply Voltage 45V | ||
Minimum Supply Voltage 7.45V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 2.45mm | ||
Series A4970SLBTR | ||
Width 7.5mm | ||
Length 15.4mm | ||
Supply Current 10mA | ||
Automotive Standard No | ||
Motor Controllers, Allegro Microsystems
Motor Controllers & Drivers, Allegro Microsystems
