Select all	Attribute	Value
	Brand	Infineon
	Motor Type	BLDC
	Output Configuration	Full Bridge
	Maximum IGBT Collector Current	8.6A
	Maximum Collector Emitter Voltage	28 V
	Mounting Type	Surface Mount
	Package Type	DSO-20-65
	Maximum Operating Supply Voltage	28 V
	Pin Count	20
	Minimum Operating Supply Voltage	4.5 V
	Typical Switching Frequency	11kHz
	Height	3.25mm
	Length	15.9mm
	Width	11mm
	Maximum Operating Temperature	+150 °C
	Dimensions	15.9 x 11 x 3.25mm
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Infineon
	Motor Type BLDC
	Output Configuration Full Bridge
	Maximum IGBT Collector Current 8.6A
	Maximum Collector Emitter Voltage 28 V
	Mounting Type Surface Mount
	Package Type DSO-20-65
	Maximum Operating Supply Voltage 28 V
	Pin Count 20
	Minimum Operating Supply Voltage 4.5 V
	Typical Switching Frequency 11kHz
	Height 3.25mm
	Length 15.9mm
	Width 11mm
	Maximum Operating Temperature +150 °C
	Dimensions 15.9 x 11 x 3.25mm
	Minimum Operating Temperature -40 °C

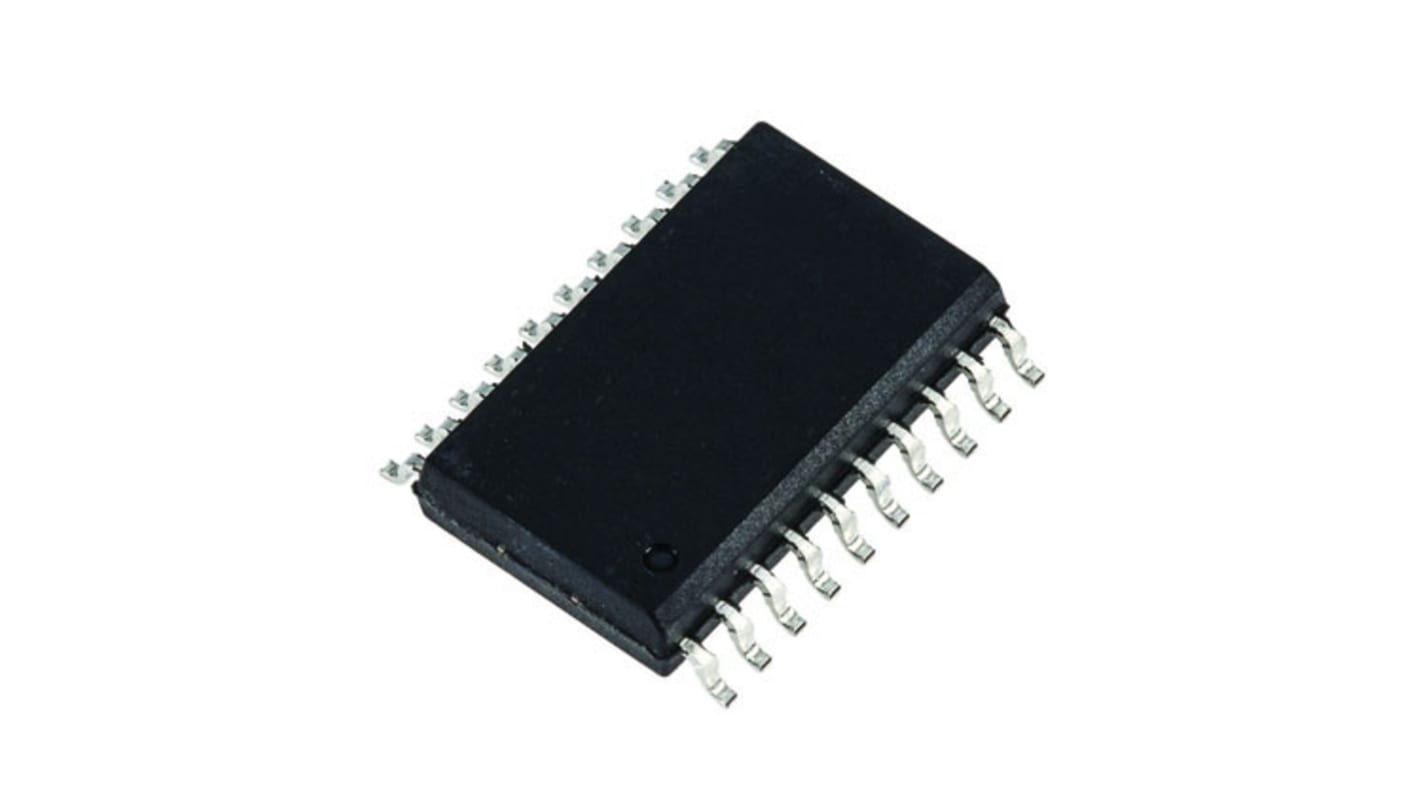

Infineon TLE82092SAAUMA1, BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65

FREE delivery for orders over MYR500.00

Full-bridge Motor Driver ICs, Infineon

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
