Infineon 3-Axis Surface Hall Effect Sensor 2.8 V 3.5 V, I2C, TSOP, 6-Pin
- RS Stock No.:
- 223-8559
- Mfr. Part No.:
- TLE493DA2B6HTSA1
- Manufacturer:
- Infineon

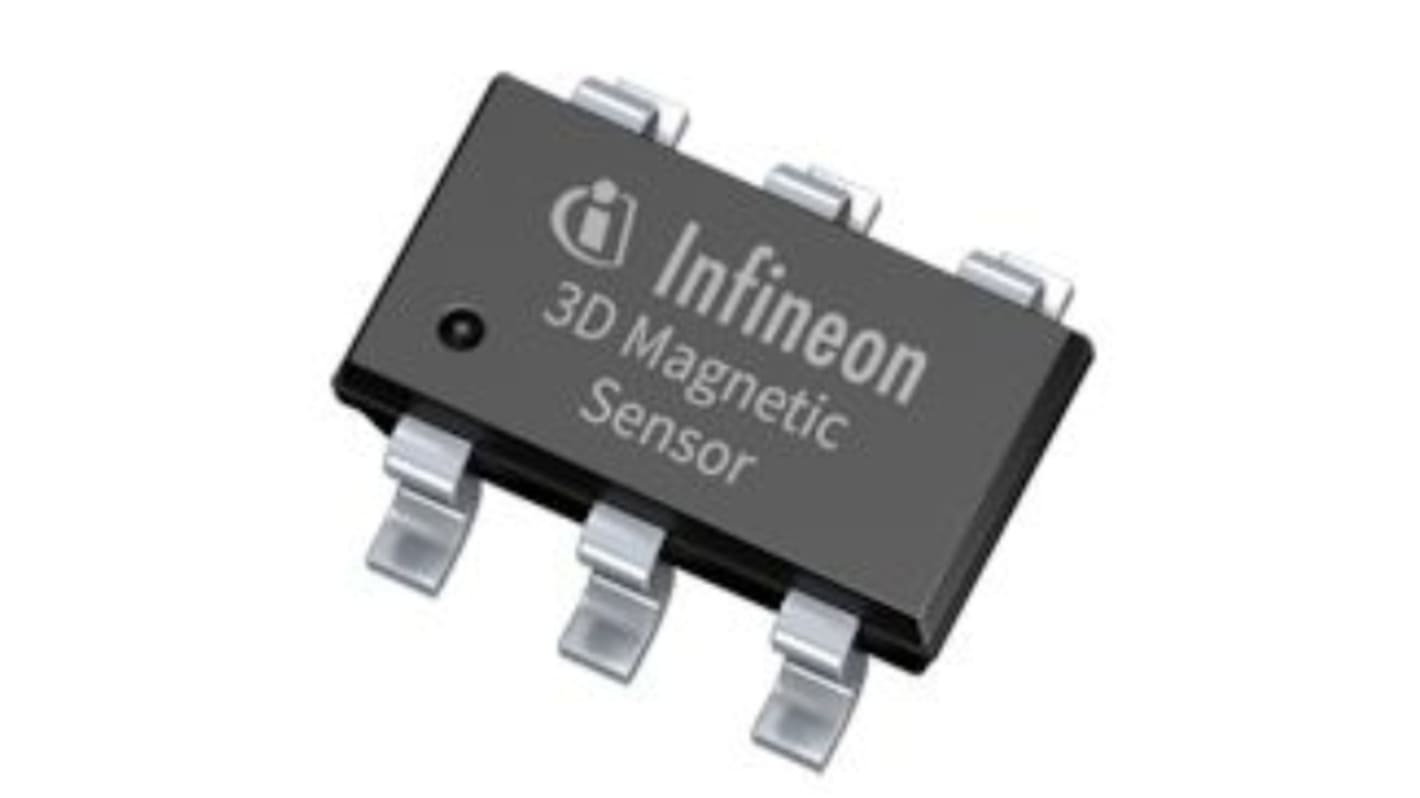

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 3000 units)*
MYR17,010.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | MYR5.67 | MYR17,010.00 |
| 6000 - 6000 | MYR5.452 | MYR16,356.00 |
| 9000 + | MYR5.383 | MYR16,149.00 |
*price indicative
- RS Stock No.:
- 223-8559
- Mfr. Part No.:
- TLE493DA2B6HTSA1
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Sensor Type | Hall Effect | |
| Product Type | Hall Effect Sensor | |
| Number of Axis | 3 | |
| Technology | Analogue | |
| Mount Type | Surface | |
| Interface Type | I2C | |
| Minimum Supply Voltage | 2.8V | |
| Package Type | TSOP | |
| Maximum Supply Voltage | 3.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 6 | |
| Series | TLE493D-A2B6 | |
| Standards/Approvals | No | |
| Length | 2.9mm | |
| Width | 1.6 mm | |
| Height | 1.1mm | |
| Supply Current | 3.4mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Sensor Type Hall Effect | ||
Product Type Hall Effect Sensor | ||
Number of Axis 3 | ||
Technology Analogue | ||
Mount Type Surface | ||
Interface Type I2C | ||
Minimum Supply Voltage 2.8V | ||
Package Type TSOP | ||
Maximum Supply Voltage 3.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 6 | ||
Series TLE493D-A2B6 | ||
Standards/Approvals No | ||
Length 2.9mm | ||
Width 1.6 mm | ||
Height 1.1mm | ||
Supply Current 3.4mA | ||
Automotive Standard No | ||
The Infineon XENSIV series automotive low power 3D magnetic sensor with I2C Interface is designed for all kinds of sensing applications, especially in the automotive area such as multi function steering wheel. It measures the magnetic field in X, Y and Z direction. Each X, Y and Z hall probe is connected sequentially to a multiplexer, which is then connected to an analog to digital converter.
Component reduction due to 3D magnetic measurement principle
Wide application range addressable due to high flexibility
Platform adaptability due to device configurability
Disturbance of smaller stray fields are neglectable compared to the high magnetic flux measurement range
