Honeywell Technologies Surface Hall Effect Sensor 4.5 V 10.5V, TO-92, 3-Pin
- RS Stock No.:
- 214-1486
- Distrelec Article No.:
- 304-58-843
- Mfr. Part No.:
- SS495A-S
- Manufacturer:
- Honeywell Technologies

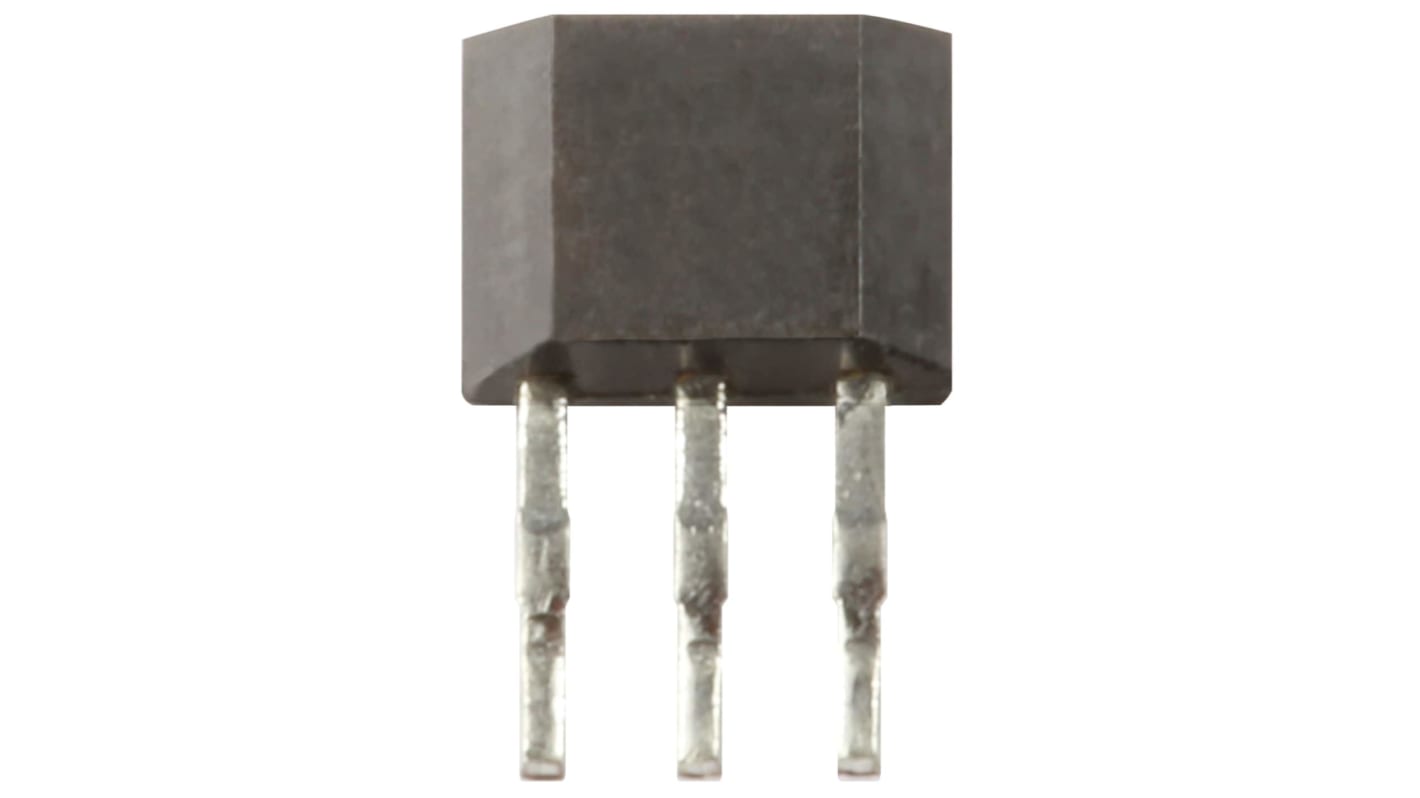

This image is representative of the product range
Get a bulk buy discount
Add 2000 more to save MYR1,718.00
View bulk pricing optionsSubtotal (1 bag of 1000 units)*
MYR39,044.00
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 18 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* | Saving |
|---|---|---|---|
| 1000 - 1000 | MYR39.044 | MYR39,044.00 | - |
| 2000 - 3000 | MYR38.185 | MYR38,185.00 | MYR1,718.00 |
| 4000 + | MYR37.482 | MYR37,482.00 | MYR6,248.00 |
*price indicative
- RS Stock No.:
- 214-1486
- Distrelec Article No.:
- 304-58-843
- Mfr. Part No.:
- SS495A-S
- Manufacturer:
- Honeywell Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect | |
| Technology | Hall Effect | |
| Mount Type | Surface | |
| Magnetic Type | Linear | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 10.5V | |
| Package Type | TO-92 | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 5mV/g | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Length | 4.06mm | |
| Width | 3mm | |
| Series | SS490 | |
| Height | 1.7mm | |
| Standards/Approvals | No | |
| Supply Current | 7mA | |
| Automotive Standard | No | |
| Response Time | 4.10μs | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect | ||
Technology Hall Effect | ||
Mount Type Surface | ||
Magnetic Type Linear | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 10.5V | ||
Package Type TO-92 | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 5mV/g | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Length 4.06mm | ||
Width 3mm | ||
Series SS490 | ||
Height 1.7mm | ||
Standards/Approvals No | ||
Supply Current 7mA | ||
Automotive Standard No | ||
Response Time 4.10μs | ||
Non Compliant
Honeywell SS490 Series Hall Effect Sensor, 5mV/g Sensitivity, 4.5V to 10.5V Supply Voltage - SS495A-S
This hall effect sensor converts magnetic field variations into a linear electrical output for measurement and control tasks. It operates from a single supply within the stated voltage range and is supplied in a Compact through‑hole package suitable for surface‑mounted applications. The device targets designs where low current draw and Rapid detection are required across a wide operating temperature span.
Features and Benefits:
• 5mV/g sensitivity enables precise magnetic-to-voltage conversion
• 7mA supply current minimises power consumption in battery systems
• 4.1μs response time allows quick detection of magnetic changes
• -40°C to 150°C temperature range supports harsh environments
• Linear magnetic output simplifies proportional measurement tasks
• 7mA supply current minimises power consumption in battery systems
• 4.1μs response time allows quick detection of magnetic changes
• -40°C to 150°C temperature range supports harsh environments
• Linear magnetic output simplifies proportional measurement tasks
Applications
• Suitable for position sensing in industrial actuators
• Ideal for speed detection in rotary encoders
• Used for contactless current sensing in power modules
• Can be used for proximity detection in automation systems
• Useful in handheld instruments requiring low current operation
• Ideal for speed detection in rotary encoders
• Used for contactless current sensing in power modules
• Can be used for proximity detection in automation systems
• Useful in handheld instruments requiring low current operation
What supply voltage range does it accept?
It operates from 4.5V up to a maximum of 10.5V.
How many electrical connections are required for integration?
It requires three pins for supply, ground and analogue output.
What mounting style suits printed circuit boards?
The device is supplied for surface mounting and comes in a TO-92 package.
How small is the sensor package for space-constrained designs?
The component has a width of 3mm and a height of 1.7mm for Compact layouts.
Is it suitable as an automotive-grade sensor alternative?
It is provided without automotive-specific approvals but can serve as an alternative where such certification is not mandatory.
